Litz DM-600

Q: How much does the Litz DM-600 cost?

The price estimate for the Litz DM-600 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-dm-600#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

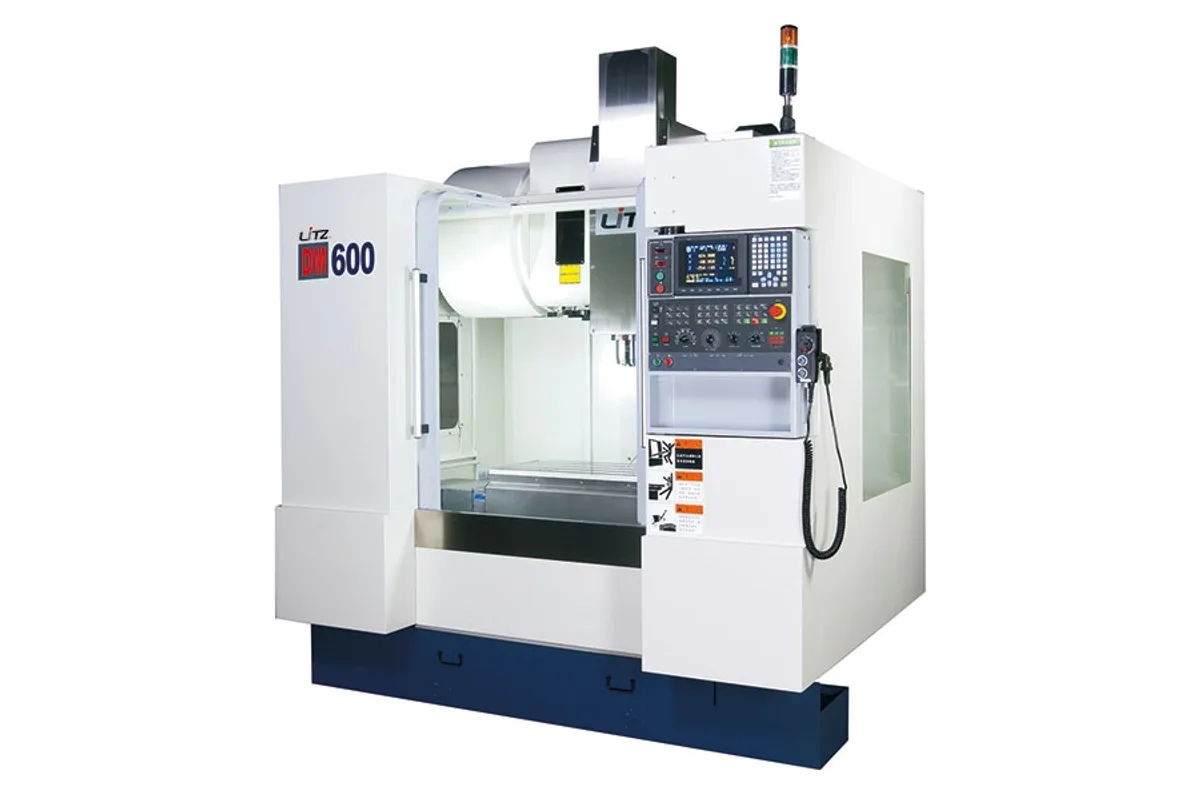

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

24,000 rpm

Tool Capacity

Table Size

700 x 400 mm (27.6 x 15.7 in)

Spindle Power

3.7 / 4.6 kW (5.0 / 6.2 hp) (continuous / 30 min rated)

x axis travel

600 mm (23.6 in)

y axis travel

410 mm (16.1 in)

How much does the Litz DM-600 cost?

Price estimate

Uncertain

We do not have a price for the Litz DM-600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz DM-600 is a high-speed vertical machining center built on a 30-taper spindle that runs to 24,000 rpm. Travels are 600 mm (23.6 in) in X, 410 mm (16.1 in) in Y and 540 mm (21.3 in) in Z, and the machine weighs 4,200 kg (9,259 lb).

Everything about the spindle says small tools. The shank is BT-30 and the motor is rated 3.7 / 4.6 kW (5.0 / 6.2 hp), continuous and 30 min. At 24,000 rpm that is the right combination for engraving, electrode and small mould detail, and for drilling and finishing in aluminium. It is the wrong one for a large face mill in steel. The other DM models, such as the DM-800, use BBT-40 and an 18,000 rpm spindle with a 15 / 18.5 kW motor, so the DM-600 is the fine-detail machine of the family and not simply its smallest size.

The frame figures match a compact VMC: a 700 x 400 mm (27.6 x 15.7 in) table that carries 350 kg (772 lb), five 14 mm T-slots, and 100 to 640 mm (3.9 to 25.2 in) between spindle nose and table. Rapids are 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm).

The arm-type changer holds 24 tools up to 200 mm (7.9 in) long. A spindle oil cooler and spindle head coolant cooling system are standard, which matters on a spindle that will spend hours near top speed. Control is the Mitsubishi M80.

Full Specifications

Parameter	Value
X Axis Travel	600 mm (23.6 in)
Y Axis Travel	410 mm (16.1 in)
Z Axis Travel	540 mm (21.3 in)
Distance Spindle Nose to Table	100 to 640 mm (3.9 to 25.2 in)
Max Spindle Speed	24,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	80 / 125 mm (3.1 / 4.9 in)
Max Tool Length	200 mm (7.9 in)
Max Tool Weight	8 kg (18 lb)
Tool Change Method	Arm
Tool Shank	BT-30
Spindle Motor Power	3.7 / 4.6 kW (5.0 / 6.2 hp) (continuous / 30 min rated)
Axis Motors Xyz	1.5 / 1.5 / 2.0 kW
Table Size	700 x 400 mm (27.6 x 15.7 in)
Max Table Load	350 kg (772 lb)
T-Slots	5 x 14 mm x 63 mm (number x width x distance from the center)
Cutting Feed Rate	1-20,000 mm/min (up to 787 ipm)
CNC Control	Mitsubishi M80
Machine Weight	4,200 kg (9,259 lb)
Power Requirement	15 kVA
Coolant Tank Capacity	200 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

24,000 rpm spindle, the highest standard speed among the DM models
Spindle oil cooler, air seal and spindle head coolant cooling system are standard
36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids and feed up to 20,000 mm/min
Compact installation at 4,200 kg (9,259 lb) and 15 kVA

Limitations

BT-30 shank and a 3.7 / 4.6 kW (5.0 / 6.2 hp) motor rule out large cutters and heavy cuts
Table load is limited to 350 kg (772 lb)
Tool length is capped at 200 mm (7.9 in)
Linear scales and the chip conveyor are options

Best For

Small-tool finishing and engraving at up to 24,000 rpm Electrodes, inserts and small mould details within 600 x 410 mm High-speed drilling and light milling in aluminium

Frequently Asked Questions

01 How fast is the Litz DM-600 spindle?

The spindle speed is 24,000 rpm. It uses a BT-30 tool shank and a motor rated 3.7 / 4.6 kW (5.0 / 6.2 hp), continuous and 30 min. A spindle oil cooler, spindle air seal system and spindle head coolant cooling system are listed as standard.

02 What is the difference between the DM-600 and the DM-800?

More than size. The DM-600 is a BT-30 machine at 24,000 rpm with a 3.7 / 4.6 kW motor. The DM-800 is a BBT-40 machine at 18,000 rpm with a 15 / 18.5 kW motor, 800 mm (31.5 in) of X travel and a 500 kg (1,102 lb) table load.

03 What are the DM-600 travels and table size?

X, Y and Z travels are 600 mm (23.6 in), 410 mm (16.1 in) and 540 mm (21.3 in). The table is 700 x 400 mm (27.6 x 15.7 in) and is rated for 350 kg (772 lb). The spindle nose sits 100 to 640 mm (3.9 to 25.2 in) above the table.

04 Which control does the DM-600 use?

Litz lists the Mitsubishi M80 for the DM-600, both in the specification table and as the standard control in the accessory list. Linear scales on the three axes and a 4th axis rotating table appear as options.
