Litz VB-1100B/BG

Q: How much does the Litz VB-1100B/BG cost?

The price estimate for the Litz VB-1100B/BG is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-vb-1100b-bg#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

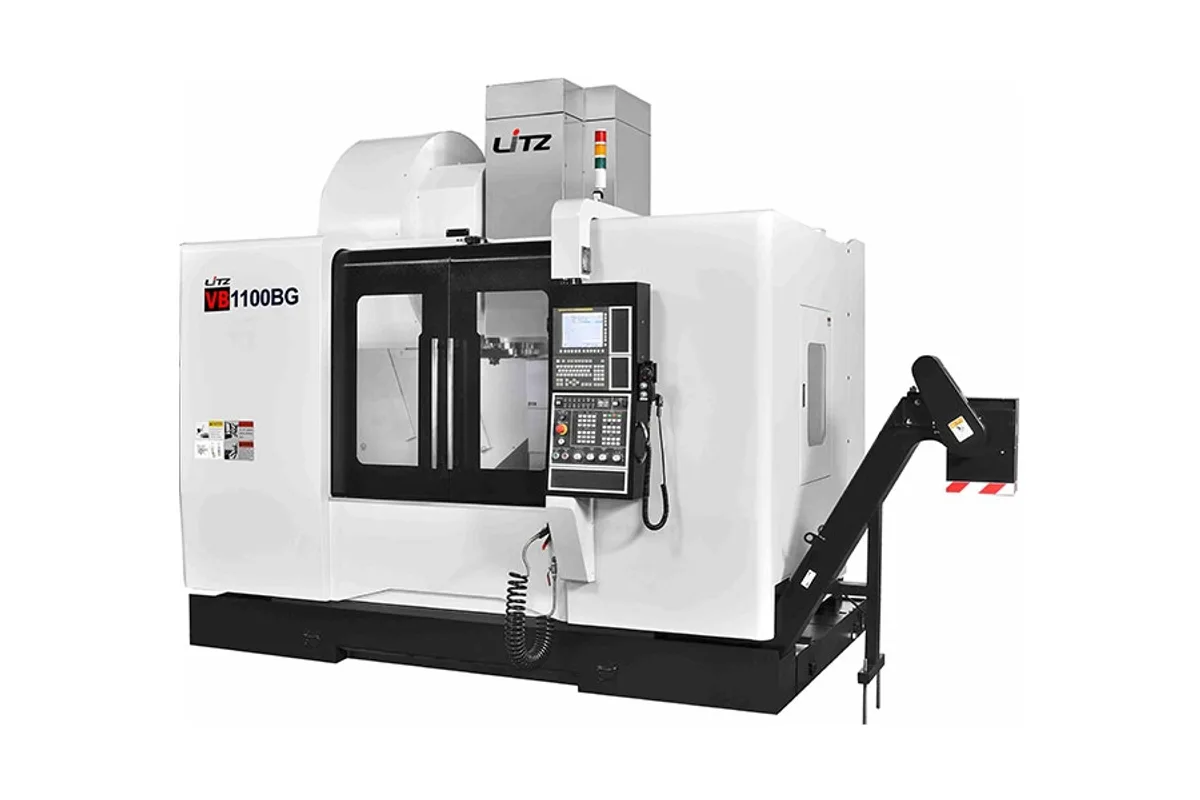

Litz VB series vertical machining center (VB-1100B/BG)

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

10,000 rpm (B) / 8,000 rpm (BG)

Tool Capacity

Table Size

1,300 x 600 mm (51.2 x 23.6 in)

x axis travel

1,100 mm (43.3 in)

y axis travel

610 mm (24.0 in)

z axis travel

600 mm (23.6 in)

How much does the Litz VB-1100B/BG cost?

Price estimate

Uncertain

We do not have a price for the Litz VB-1100B/BG that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz VB-1100B/BG is a BT-50 vertical machining center with 1,100 mm (43.3 in) of X travel, 610 mm (24.0 in) of Y and 600 mm (23.6 in) of Z. One column of the maker's table covers two versions that differ in spindle speed: 10,000 rpm for the B and 8,000 rpm for the BG.

Both versions use BT-50 tooling and a 30-tool arm type magazine, with tools up to 305 mm (12.0 in) long and 15 kg (33 lb). The table gives no spindle motor rating for this model, so power and torque for the B and BG spindles have to come from Litz directly.

The build is aimed at stock removal. A counter weight with central guide device is standard on the head. So are a spindle oil cooling system, a coolant cooling system, a programmable coolant nozzle, a chip conveyor and a wash down device. Few items are left on the option list: coolant through the spindle, linear scales, and alternative controls from Mitsubishi and Siemens.

The table is 1,300 x 600 mm (51.2 x 23.6 in), longer than the X stroke, and the working area is given as 1,100 x 600 mm (43.3 x 23.6 in). Load capacity is 1,000 kg (2,205 lb). Rapids are 30 / 30 / 24 m/min (1,181 / 1,181 / 945 ipm). The machine weighs 9,600 kg (21,164 lb), needs 25 kVA and carries 416 L of coolant. Control is FANUC 0i MF.

Full Specifications

Parameter	Value
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	610 mm (24.0 in)
Z Axis Travel	600 mm (23.6 in)
Distance Spindle Nose to Table	125 to 725 mm (4.9 to 28.5 in)
Spindle Center to Z Rail Surface	660 mm (26.0 in)
Table Height From Floor	988 mm (38.9 in)
Max Spindle Speed	10,000 rpm (B) / 8,000 rpm (BG)
Tool Capacity	30
Max Tool Length	305 mm (12.0 in)
Max Tool Weight	15 kg (33 lb)
Tool Change Method	ARM
Tool Shank	BT-50
Table Size	1,300 x 600 mm (51.2 x 23.6 in)
Max Table Load	1,000 kg (2,205 lb)
Working Area	1,100 x 600 mm (43.3 x 23.6 in)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
CNC Control	FANUC 0i MF
Machine Weight	9,600 kg (21,164 lb)
Coolant Tank Capacity	416 L
Power Requirement	25 kVA
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	30 / 30 / 24 m/min (1,181 / 1,181 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

BT-50 spindle with a 30-tool arm type magazine as standard
Chip conveyor, wash down device and coolant cooling system included
Counter weight with central guide device on the head
Tools up to 15 kg (33 lb) and 305 mm (12.0 in)
1,000 kg (2,205 lb) table load

Limitations

No spindle motor power or torque is given in the table
Working area of 1,100 x 600 mm is smaller than the 1,300 x 600 mm table
Rapids of 30 / 30 / 24 m/min (1,181 / 1,181 / 945 ipm)
Coolant through the spindle and linear scales are options

Best For

Heavy milling of steel and cast iron with BT-50 tooling Die and mould roughing within 1,100 x 610 mm Shops that want chip and coolant handling included as standard

Frequently Asked Questions

01 What is the difference between the VB-1100B and VB-1100BG?

Spindle speed, according to the table: 10,000 rpm for the B and 8,000 rpm for the BG. The other rows are shared, including BT-50 tooling, 30 tools and the 1,100 x 610 x 600 mm travels.

02 What are the travels and table of the VB-1100B/BG?

X is 1,100 mm (43.3 in), Y is 610 mm (24.0 in) and Z is 600 mm (23.6 in). The table is 1,300 x 600 mm (51.2 x 23.6 in), the working area 1,100 x 600 mm (43.3 x 23.6 in), and the load limit 1,000 kg (2,205 lb).

03 What comes as standard on the VB-1100B/BG?

The accessory list marks as standard a spindle oil cooling system, programmable coolant nozzle, coolant cooling system, chip auger, chip conveyor, chip cart, wash down device and a counter weight central guide device. Control is FANUC, with Mitsubishi M80 and Siemens 828D as options.

04 How much does the VB-1100B/BG weigh?

9,600 kg (21,164 lb). The power requirement is 25 kVA, compressed air 6 kg/cm² and coolant tank capacity 416 L. The table surface is 988 mm (38.9 in) above the floor.
