Litz DV-800

Q: How much does the Litz DV-800 cost?

The price estimate for the Litz DV-800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-dv-800#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

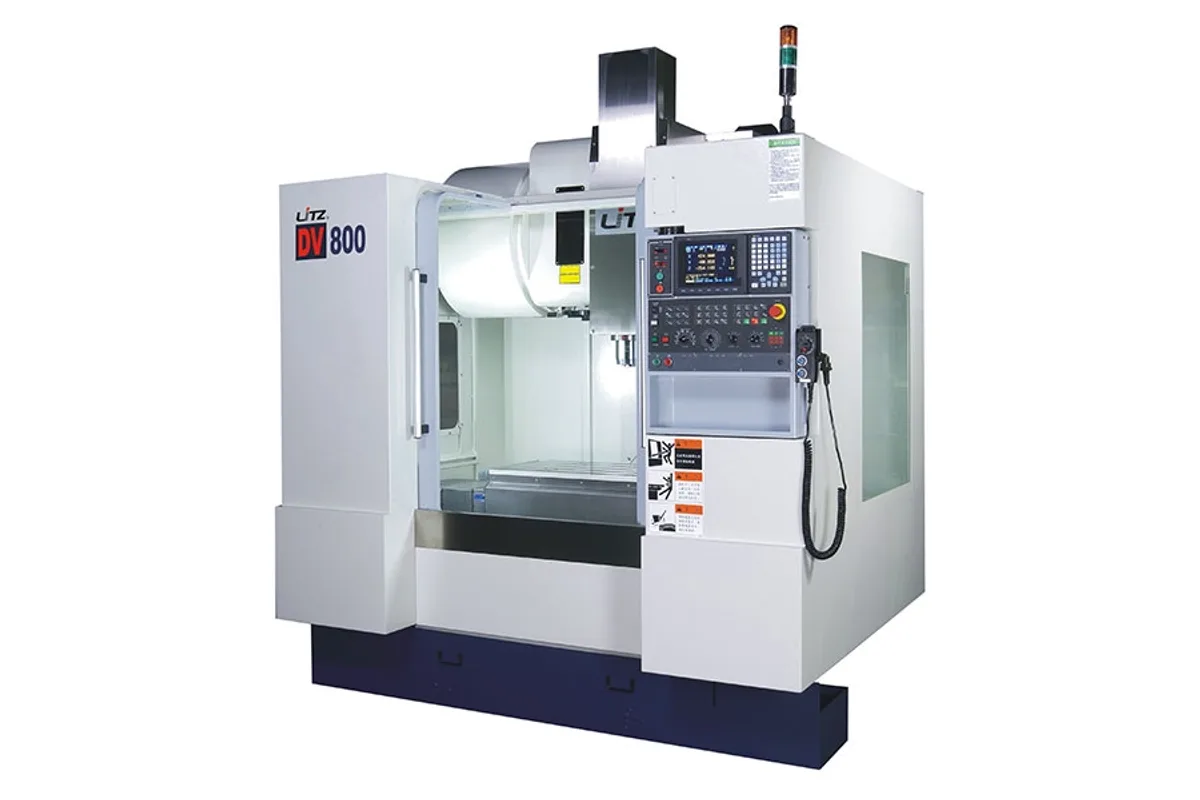

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

10,000 rpm

Tool Capacity

Table Size

910 x 500 mm (35.8 x 19.7 in)

Spindle Power

7.5 / 11 kW (10 / 15 HP) (continuous / 30 min rated)

x axis travel

800 mm (31.5 in)

y axis travel

500 mm (19.7 in)

How much does the Litz DV-800 cost?

Price estimate

Uncertain

We do not have a price for the Litz DV-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz DV-800 is a 40-taper vertical machining center with 800 mm (31.5 in) of X travel, 500 mm (19.7 in) of Y and 540 mm (21.3 in) of Z, a 10,000 rpm spindle and a 24-tool arm-type changer. It is the middle size of the DV series. The DV-700 below it is limited to a 250 kg (551 lb) table load, and the DV-1000 above it stretches X to 1,020 mm (40.2 in).

The table measures 910 x 500 mm (35.8 x 19.7 in) and carries 500 kg (1,102 lb). It is longer than the X stroke, so fixtures should be laid out inside the 800 mm of travel rather than to the table ends. Spindle nose to table distance runs from 150 to 690 mm (5.9 to 27.2 in). That leaves room for a vise and a long tool, but the 150 mm minimum means a short tool will not reach a thin part clamped directly on the table.

Litz rates the spindle motor at 7.5 / 11 kW (10 / 15 HP), continuous and 30 min. For an 800 mm machine that is a moderate motor, which suits general parts work with mid-sized cutters more than heavy roughing. A 15,000 rpm spindle and coolant through the spindle are listed as options, as are roller type linear guideways and linear scales on the three axes.

Rapids are 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) in X, Y and Z. Tools can be up to 270 mm (10.6 in) long and 8 kg (18 lb). The standard control is the Mitsubishi M80, with FANUC 0i-MF and Siemens 828D as options. The machine weighs 5,300 kg (11,684 lb) and draws 20 kVA.

Full Specifications

Parameter	Value
X Axis Travel	800 mm (31.5 in)
Y Axis Travel	500 mm (19.7 in)
Z Axis Travel	540 mm (21.3 in)
Distance Spindle Nose to Table	150 to 690 mm (5.9 to 27.2 in)
Max Spindle Speed	10,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	80 / 125 mm (3.1 / 4.9 in)
Max Tool Length	270 mm (10.6 in)
Max Tool Weight	8 kg (18 lb)
Tool Change Method	Arm
Tool Shank	BBT-40
Spindle Motor Power	7.5 / 11 kW (10 / 15 HP) (continuous / 30 min rated)
Axis Motors Xyz	2.0 / 2.0 / 3.5 kW
Table Size	910 x 500 mm (35.8 x 19.7 in)
Max Table Load	500 kg (1,102 lb)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
Cutting Feed Rate	1-20,000 mm/min (up to 787 ipm)
CNC Control	Mitsubishi M80
Machine Weight	5,300 kg (11,684 lb)
Power Requirement	20 kVA
Coolant Tank Capacity	290 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

800 x 500 x 540 mm travels with a 910 x 500 mm (35.8 x 19.7 in) table rated for 500 kg (1,102 lb)
Rapids of 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) and cutting feed up to 20,000 mm/min
24-tool arm-type changer taking tools up to 270 mm (10.6 in) long and 8 kg (18 lb)
Control is a choice: Mitsubishi M80 as standard, FANUC 0i-MF or Siemens 828D as options
Spindle oil cooler, spindle air seal and a chip auger inside the machine are on the standard list

Limitations

Spindle motor is 7.5 / 11 kW (10 / 15 HP), which limits heavy roughing in steel
The 15,000 rpm spindle, coolant through the spindle and the chip conveyor are options, not part of the standard machine
Spindle nose never comes closer than 150 mm (5.9 in) to the table, so thin work needs risers or longer tools
Roller type linear guideways and linear scales are extra-cost options on all three axes

Best For

General job-shop milling of parts inside an 800 x 500 mm envelope Vise and fixture work up to 500 kg (1,102 lb) on the table Shops that want to pick between Mitsubishi, FANUC and Siemens controls

Frequently Asked Questions

01 What are the travels and table size of the Litz DV-800?

X, Y and Z travels are 800 mm (31.5 in), 500 mm (19.7 in) and 540 mm (21.3 in). The table is 910 x 500 mm (35.8 x 19.7 in) with five 18 mm T-slots and a maximum load of 500 kg (1,102 lb).

02 What spindle does the DV-800 have?

The standard spindle runs to 10,000 rpm with a BBT-40 tool shank and a 7.5 / 11 kW (10 / 15 HP) motor, continuous and 30 min rated. Litz lists a 15,000 rpm spindle and coolant through the spindle as options. A spindle oil cooler and air seal are standard.

03 Which CNC controls are available on the DV-800?

The specification table names the Mitsubishi M80 and the accessory list shows it as standard. FANUC 0i-MF and Siemens 828D are listed as options, so the control should be settled when the machine is ordered.

04 How does the DV-800 compare with the DV-1000?

The DV-1000 has 1,020 mm (40.2 in) of X, 560 mm (22.0 in) of Y and 600 mm (23.6 in) of Z against 800, 500 and 540 mm on the DV-800, and its table carries 750 kg (1,653 lb). Both use the same 10,000 rpm spindle with a 7.5 / 11 kW motor, so the choice is about part size, not cutting power.
