Litz DV-1000

Q: How much does the Litz DV-1000 cost?

The price estimate for the Litz DV-1000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-dv-1000#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

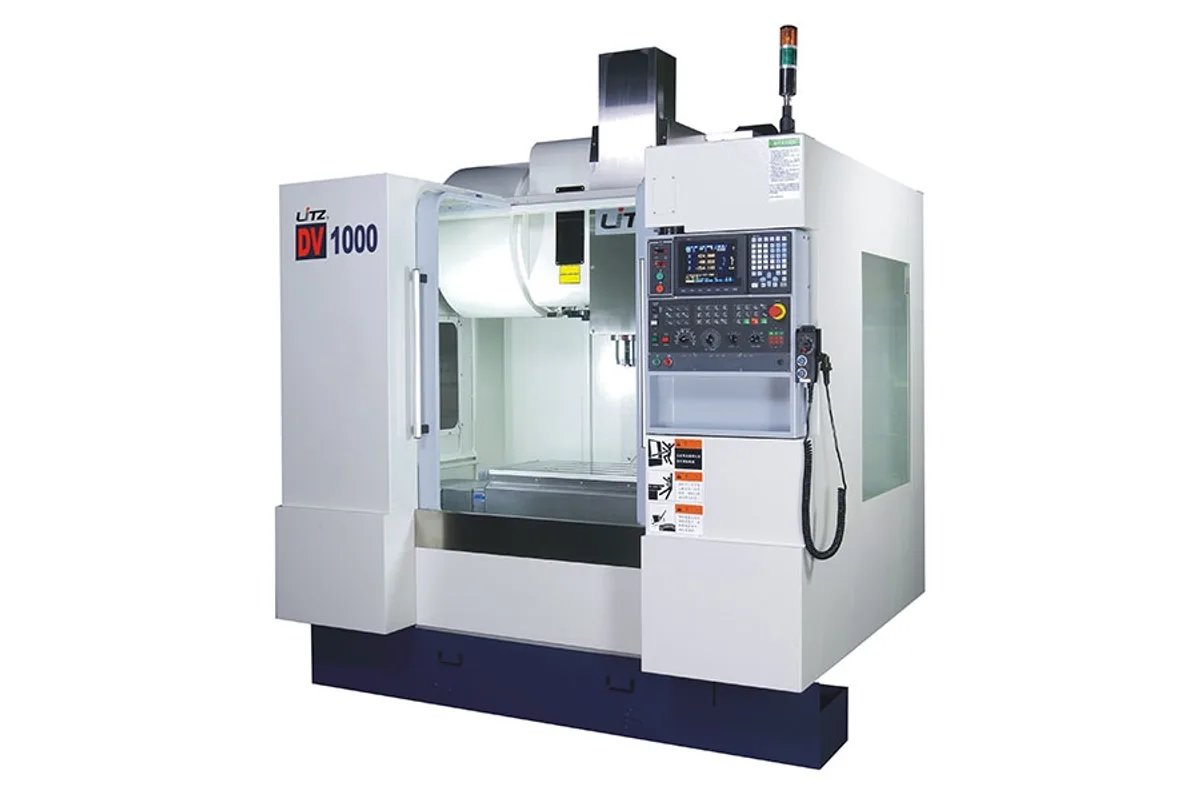

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

10,000 rpm

Tool Capacity

Table Size

1,000 x 560 mm (39.4 x 22.0 in)

Spindle Power

7.5 / 11 kW (10 / 15 HP) (continuous / 30 min rated)

x axis travel

1,020 mm (40.2 in)

y axis travel

560 mm (22.0 in)

How much does the Litz DV-1000 cost?

Price estimate

Uncertain

We do not have a price for the Litz DV-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz DV-1000 is the one-metre member of the DV vertical machining center series, with travels of 1,020 mm (40.2 in) in X, 560 mm (22.0 in) in Y and 600 mm (23.6 in) in Z. The table is 1,000 x 560 mm (39.4 x 22.0 in) and takes 750 kg (1,653 lb), which is where the series moves from small-part work into mould bases, plates and multi-vise setups.

Unlike the smaller DV models, the X stroke here is slightly longer than the table, so the spindle can reach both ends of anything clamped on it. Two or three vises in a row is the obvious layout. Z clearance is 120 to 720 mm (4.7 to 28.3 in) from spindle nose to table.

The spindle is unchanged from the DV-800: 10,000 rpm, BBT-40, 7.5 / 11 kW (10 / 15 HP) continuous and 30 min. A bigger envelope with the same motor means the DV-1000 is a larger-capacity machine, not a stronger one. Buyers who need more spindle power at about this size should look at the DV-1200A, which is listed at 11 / 15 kW.

Axis rapids stay at 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) despite the heavier table. The machine weighs 7,000 kg (15,432 lb), needs 25 kVA and carries 290 L of coolant. Tools up to 300 mm (11.8 in) long fit the 24-tool arm changer.

Full Specifications

Parameter	Value
X Axis Travel	1,020 mm (40.2 in)
Y Axis Travel	560 mm (22.0 in)
Z Axis Travel	600 mm (23.6 in)
Distance Spindle Nose to Table	120 to 720 mm (4.7 to 28.3 in)
Max Spindle Speed	10,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	80 / 125 mm (3.1 / 4.9 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	8 kg (18 lb)
Tool Change Method	Arm
Tool Shank	BBT-40
Spindle Motor Power	7.5 / 11 kW (10 / 15 HP) (continuous / 30 min rated)
Axis Motors Xyz	2.0 / 2.0 / 3.5 kW
Table Size	1,000 x 560 mm (39.4 x 22.0 in)
Max Table Load	750 kg (1,653 lb)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
Cutting Feed Rate	1-20,000 mm/min (up to 787 ipm)
CNC Control	Mitsubishi M80
Machine Weight	7,000 kg (15,432 lb)
Power Requirement	25 kVA
Coolant Tank Capacity	290 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,020 x 560 x 600 mm travels with a 750 kg (1,653 lb) table load
X travel of 1,020 mm (40.2 in) covers the full 1,000 mm table length
Keeps 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids at this size
Tool length up to 300 mm (11.8 in) with 120 to 720 mm (4.7 to 28.3 in) under the spindle nose
15,000 rpm spindle and coolant through the spindle available as options

Limitations

Same 7.5 / 11 kW (10 / 15 HP) spindle motor as the smaller DV-800
Chip conveyor is an option; the standard machine has a chip auger and chip cart
At 7,000 kg (15,432 lb) and 25 kVA it needs more floor and supply than the DV-800 at 5,300 kg and 20 kVA

Best For

Multi-vise production setups along a 1,000 mm table Plates and mould bases up to 750 kg (1,653 lb) General machining where envelope matters more than spindle power

Frequently Asked Questions

01 What size parts fit the Litz DV-1000?

Travels are 1,020 mm (40.2 in), 560 mm (22.0 in) and 600 mm (23.6 in) in X, Y and Z. The table is 1,000 x 560 mm (39.4 x 22.0 in) with a 750 kg (1,653 lb) limit, and the spindle nose is 120 to 720 mm (4.7 to 28.3 in) above it.

02 Is the DV-1000 spindle more powerful than the DV-800 spindle?

No. Both are listed at 10,000 rpm with a BBT-40 shank and a 7.5 / 11 kW (10 / 15 HP) motor, continuous and 30 min rated. The DV-1000 adds travel and table load. The DV-1200A is the DV model with a larger motor, 11 / 15 kW.

03 How fast are the axes on the DV-1000?

Rapid traverse is 36 m/min (1,417 ipm) in X and Y and 24 m/min (945 ipm) in Z. Cutting feed is programmable from 1 to 20,000 mm/min. Axis motors are 2.0 / 2.0 / 3.5 kW for X, Y and Z.

04 What are the installation figures for the DV-1000?

Machine weight is 7,000 kg (15,432 lb). Litz lists a 25 kVA power requirement, a compressed air source of 6 kg/cm² and a 290 L coolant tank. The standard control is the Mitsubishi M80, with FANUC 0i-MF and Siemens 828D as options.
