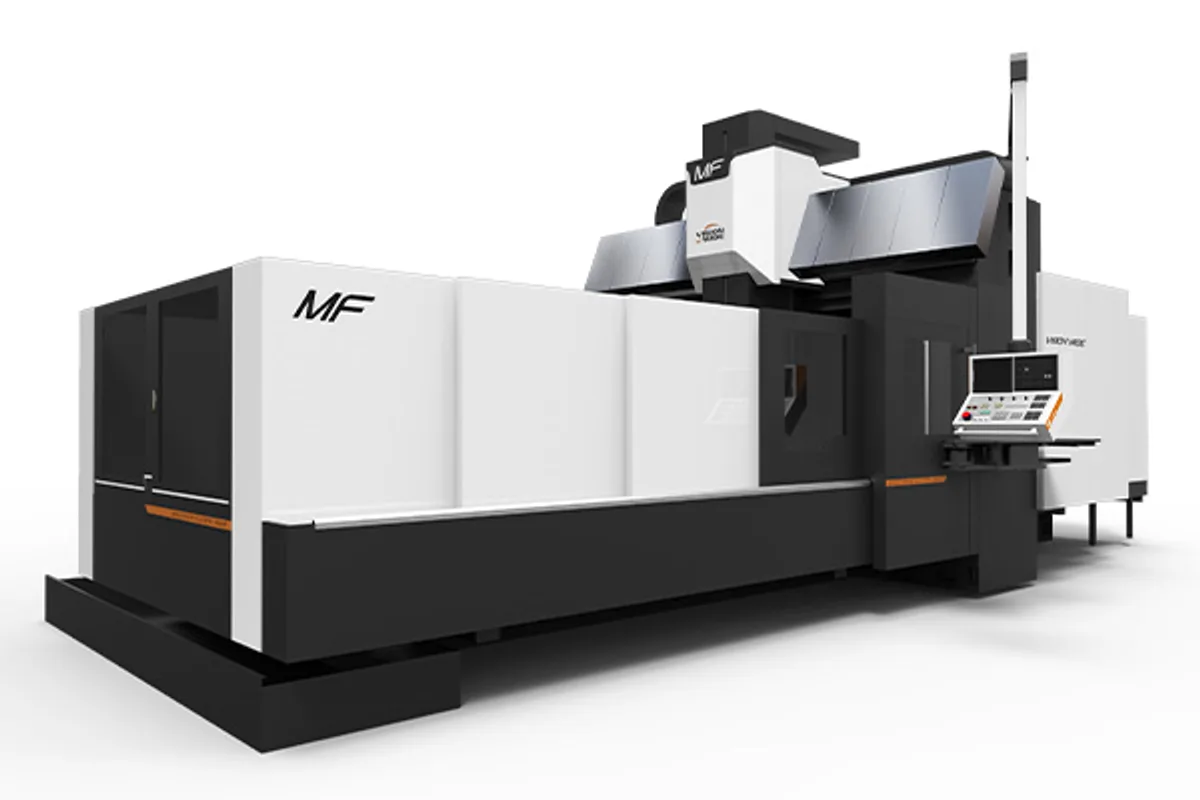

Vision Wide MF-5026
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide MF-5026 cost?
Price estimate
We do not have a price for the Vision Wide MF-5026 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MF-5026 is the largest MF and the largest box way milling machine the maker lists: 5,200 mm (204.7 in) of X travel, 2,600 mm (102.4 in) of Y, and a 5,200x2,050 mm (204.7x80.7 in) table that carries 15,000 kg (33,069 lb).
The series description amounts to a list of answers to one problem, how to cut heavily on a long sliding-way machine without losing accuracy. A 65-degree slant beam with three sliding ways holds the headstock. A gear reducer gives the X axis the thrust to move a loaded table. Y and Z are driven directly by large servo motors. The spindle and all three ball screws are cooled by separate oil coolers. The structure is a solid casting.
What the base machine leaves to the buyer is short. A tool magazine with arm type ATC, 40 or 60 tools, is optional. So are XYZ-axis linear scale feedback, a rotary table, a 6,000 rpm gear spindle and the through-tool coolant systems.
Rapid traverse is 10 m/min in X and 12 m/min in Y and Z, and cutting feed 1-7,000 mm/min. Power is 18.5/22 kW (24.8/29.5 hp) as standard. Z travel is 920 mm, with 1,020 mm optional. A Fanuc 0iMF PLUS controls the machine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,200 mm (204.7 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 5,200x2,050 mm (204.7x80.7 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Max Spindle Speed | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest MF envelope: 5,200 mm (204.7 in) by 2,600 mm (102.4 in)
- 15,000 kg (33,069 lb) table load on box ways
- Slant beam, geared X drive and cooled screws as described by the maker
- Optional rotary table and XYZ-axis linear scale feedback
Limitations
- Tool magazine, scales and rotary table are options
- X rapid of 10 m/min over 5,200 mm (204.7 in)
- Z travel of 920 mm, or 1,020 mm optional
Best For
Frequently Asked Questions
01
The MF-5026, with 5,200 mm (204.7 in) of X travel, 2,600 mm (102.4 in) of Y and a 5,200x2,050 mm (204.7x80.7 in) table for 15,000 kg (33,069 lb).
02
A 6,000 rpm 2-step gear spindle, a 40/60 tools magazine with arm type ATC, XYZ-axis linear scale feedback, a rotary table, through-spindle coolant at 20/70 bar, tool holder coolant interfaces and an oil mist cooling device.
03
X rapid is 10 m/min; Y and Z are 12 m/min. Cutting feed is 1-7,000 mm/min. These match the MF-5000, which has 2,300 mm (90.6 in) of Y.
04
A Fanuc 0iMF PLUS Controller, a 4,000 rpm two-step gear spindle, an X-axis ball screw supporter, a ball screw cooling system, a cutting fluid cooling system and screw and caterpillar chip conveyors.
