Kjellberg K 200

Specs verified 2026-10-06 · kjellberg.de Updated 2026-10-06

Image: kjellberg.de, Kjellberg

Key Specifications

cutting current

60 - 200 A (at 100 % DC, ambient temperature 40 °C)

marking current

35 A (at 100 % DC, ambient temperature 40 °C)

cutting range mild steel maximum o2 air

60 mm (2.4 in)

piercing mild steel o2 air

35 mm (1.4 in)

cutting range mild steel maximum air air

60 mm (2.4 in)

piercing mild steel air air

35 mm (1.4 in)

How much does the Kjellberg K 200 cost?

Price estimate

Uncertain

We do not have a price for the Kjellberg K 200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

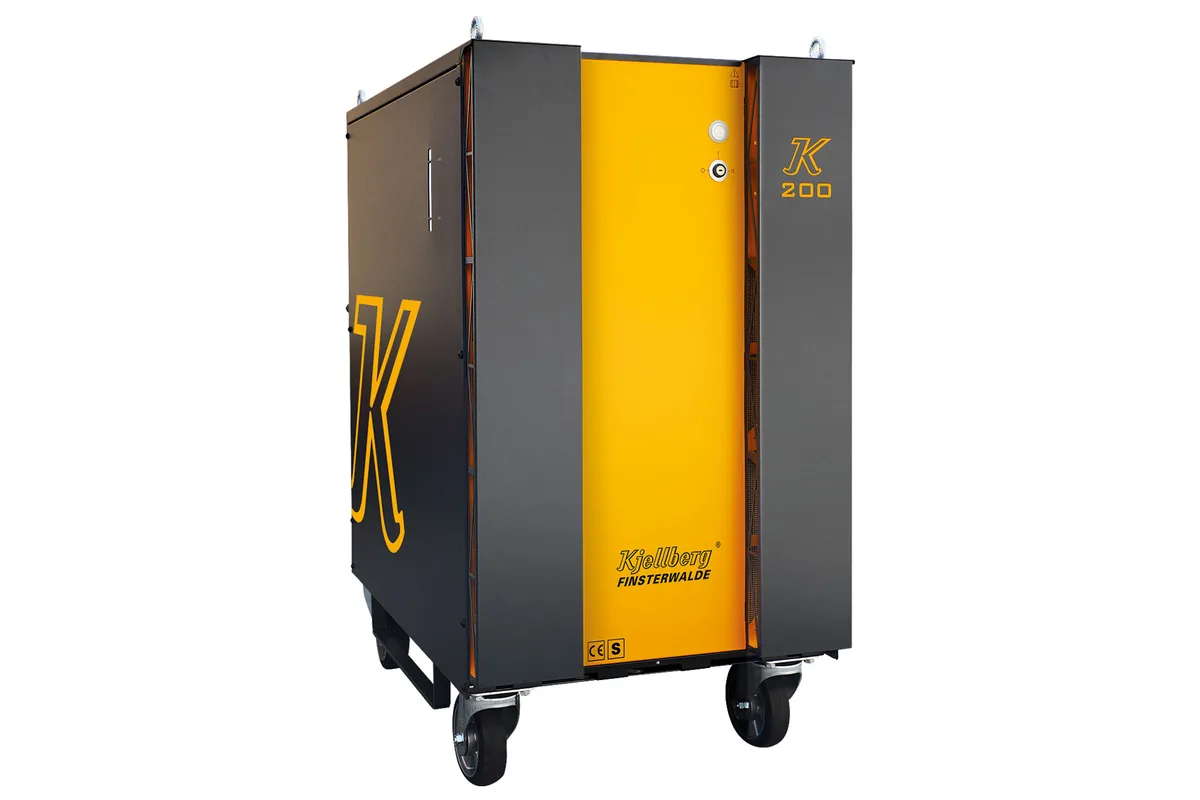

The Kjellberg K 200 is a plasma power source of up to 200 A for CNC-guided and robot-guided cutting, built around a short list of gases and an integrated automatic gas control. Cutting current is 60 - 200 A, and Kjellberg gives the material thickness range as 1 to 60 mm.

Its distinguishing feature is that air alone will do. The unit can cut mild steel, stainless steel and aluminium using air as both the plasma and swirl gas, and the table has an Air/Air column for each material. Run that way, the maximum is 60 mm (2.4 in) in mild steel and stainless steel and 50 mm (2.0 in) in aluminium, with piercing at 35 mm (1.4 in), 30 mm (1.2 in) and 30 mm.

Interestingly, the nitrogen columns are the lower ones. With N2 / N2 the stainless steel maximum is 40 mm (1.6 in) with 25 mm (1.0 in) piercing, and aluminium is 40 mm with 20 mm (0.8 in) piercing. Oxygen as plasma gas, the O2/Air column, is listed for mild steel only and gives the same 60 mm and 35 mm as air. The plasma gas row holds O2, N2 and Air; argon and hydrogen do not appear in it.

Control is through an RS-485 serial interface in CNC mode. For guiding systems without a serial interface, the K-Desk app monitors and adjusts process and cutting parameters from a smartphone. Marking is a fixed 35 A with air. The source weighs 351 kg (774 lb), measures 1078 x 684 x 1231 mm, and connects to 3 x 400 V, 50 Hz on an 80 A slow fuse with a maximum connected load of 52 kVA.

Full Specifications

Parameter	Value
Cutting Current	60 - 200 A (at 100 % DC, ambient temperature 40 °C)
Marking Current	35 A (at 100 % DC, ambient temperature 40 °C)
Cutting Range Mild Steel Maximum O2 Air	60 mm (2.4 in)
Piercing Mild Steel O2 Air	35 mm (1.4 in)
Cutting Range Mild Steel Maximum Air Air	60 mm (2.4 in)
Piercing Mild Steel Air Air	35 mm (1.4 in)
Cutting Range Stainless Steel Maximum N2 N2	40 mm (1.6 in)
Piercing Stainless Steel N2 N2	25 mm (1.0 in)
Cutting Range Stainless Steel Maximum Air Air	60 mm (2.4 in)
Piercing Stainless Steel Air Air	30 mm (1.2 in)
Cutting Range Aluminium Maximum N2 N2	40 mm (1.6 in)
Piercing Aluminium N2 N2	20 mm (0.8 in)
Cutting Range Aluminium Maximum Air Air	50 mm (2.0 in)
Piercing Aluminium Air Air	30 mm (1.2 in)
Plasma Gases	O2, N2, Air
Swirl Gases	N2, Air
Marking Gas	Air
Mains Voltage	3 x 400 V, 50 Hz
Fuse Slow	80 A
Max Connected Load	52 kVA
Protection Class	IP 21S
Machine Dimensions	1078 x 684 x 1231 mm (42.4 x 26.9 x 48.5 in)
Machine Weight	351 kg (774 lb)

Specifications sourced from kjellberg.de — verified 2026-10-06

Strengths & Limitations

Strengths

Cuts mild steel, stainless steel and aluminium using air as both the plasma and swirl gas
Mild steel maximum of 60 mm (2.4 in) and piercing at 35 mm (1.4 in), with O2/Air or Air/Air
Integrated automatic gas control and direct torch connection
RS-485 serial interface for CNC mode, and the K-Desk app where there is no serial interface
K-Torch XS Robo robotic torch for robot-guided cutting
Protection class IP 21S; 80 A slow fuse and a maximum connected load of 52 kVA

Limitations

Cutting current starts at 60 A and the thickness range at 1 mm
Plasma gases are O2, N2 and Air only; no argon or hydrogen gases are listed
With N2 / N2, stainless steel and aluminium are limited to a 40 mm maximum
Marking current is a single 35 A value, not an adjustable range
Mains voltage is 3 x 400 V, 50 Hz; other voltages and frequencies are on request

Best For

Sites with limited gas availability, cutting with compressed air Mild steel plate up to 60 mm with oxygen or air Robot-guided cutting with the K-Torch XS Robo Cutting tables controlled over RS-485

Frequently Asked Questions

01 How thick can the K 200 cut?

Kjellberg gives a material thickness range of 1 to 60 mm. The table lists a mild steel maximum of 60 mm (2.4 in) with piercing at 35 mm. Stainless steel reaches 60 mm with Air/Air and 40 mm with N2 / N2; aluminium reaches 50 mm with Air/Air and 40 mm with N2 / N2.

02 Can the K 200 cut with compressed air only?

Yes. Kjellberg states that the K 200 can cut mild steel, stainless steel and aluminium using air as both the plasma and swirl gas. The marking gas is also air. Depending on the material and cutting task, oxygen or nitrogen can be used as the plasma gas instead.

03 How is the K 200 connected to a CNC machine?

Via the RS-485 serial interface, through which it can be integrated into and controlled by CNC guiding systems. For systems without a serial interface, the K-Desk app lets users monitor, select and adjust process and cutting parameters via smartphone.

04 Is the K 200 only for machine cutting?

No. Kjellberg lists it for CNC-guided and robot-guided cutting, and its brochure also lists the hand torches K-Torch M and K-Torch MS for manual plasma cutting and gouging. The machine torch is the K-Torch, and a quick-change version, the K-Torch QC, is listed too.

05 What power supply does the K 200 need?

Mains voltage is 3 x 400 V, 50 Hz, with an 80 A slow fuse and a maximum connected load of 52 kVA. Other voltages and frequencies are on request. The cutting current of 60 - 200 A is rated at 100 % DC at an ambient temperature of 40 °C.
