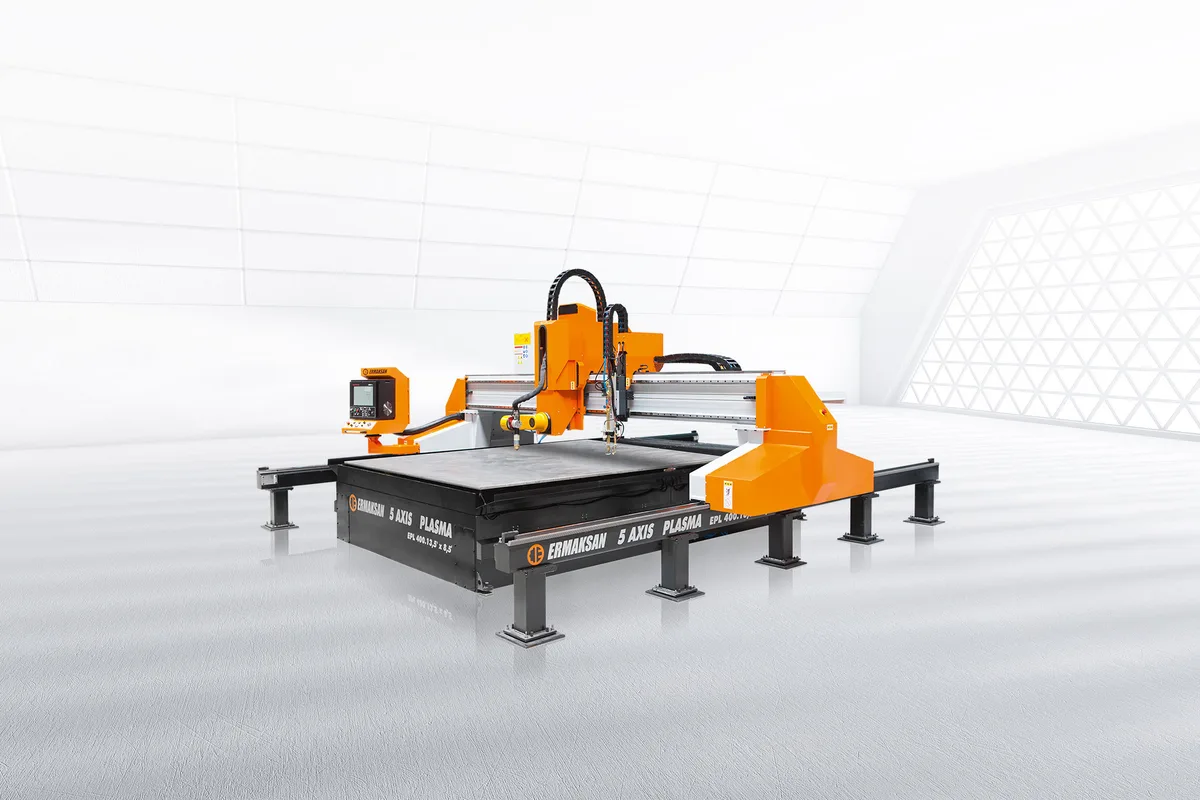

Ermak EPL 3/5 Axis Plasma 2060
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 2060 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 2060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak EPL 3/5 Axis Plasma 2060 pairs a 2,000 mm (78.7 in) cutting width with a 6,000 mm (236.2 in) cutting length. Six metres by two is a common plate format, and it also holds two three-metre sheets end to end.
Loading two sheets is the practical gain over the four-metre model. One can be cut while the other is cleared and replaced, as long as the operator keeps out of the gantry's path; Ermak offers a light curtain and a cage barrier as optional safety equipment for that reason.
The plasma unit listed is the Hypertherm HPR130XD, cutting from 1 to 38 mm. The gantry traverses at 20 m/min. Among the standard software functions is a return feature, which brings the torch back to the last point where cutting stopped after an interruption.
Weight is 8,150 kg (17,967 lb). The gantry is 4,700 mm (185 in) wide overall and 2,280 mm high, and the table surface is at 750 mm.
For tube work, Ermak lists a pipe cutting option for diameters of 50 - 400 mm. It is not part of the standard machine.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,000 mm (78.7 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 4,700 mm (185 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 8,150 kg (17,967 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,000 x 6,000 mm cutting area for six-metre plate or two shorter sheets
- Return feature resumes a cut at the point where it stopped
- 8,150 kg (17,967 lb) for a six-metre table
- Optional pipe cutting for 50 - 400 mm diameters
- Mitsubishi digital AC servo motors on all axes
Limitations
- Plate wider than 2,000 mm will not fit
- Light curtain and cage barrier are optional safety equipment
- Traverse speed of 20 m/min
- Pipe cutting has to be ordered as an option
Best For
Frequently Asked Questions
01
Plate up to 2,000 mm (78.7 in) wide and 6,000 mm (236.2 in) long, from 1 to 38 mm thick according to the table, using a Hypertherm HPR130XD plasma unit.
02
Only with an option. Ermak lists plate and pipe configurations for the EPL series that cut pipes with a diameter of 50 - 400 mm; the standard machine is a plate cutter.
03
8,150 kg (17,967 lb). The twelve-metre EPL 3/5 Axis Plasma 20120 on the same 4,700 mm gantry width weighs 13,550 kg.
04
The standard return feature lets the operator move the machine away and then return to the last point where cutting was stopped. A point laser light, also standard, shows where the torch is.
