Kjellberg HiFocus 360i neo

Q: How much does the Kjellberg HiFocus 360i neo cost?

The price estimate for the Kjellberg HiFocus 360i neo is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/kjellberg-hi-focus-360i-neo#price; the request is passed to Kjellberg or an authorised dealer.

Specs verified 2026-10-06 · kjellberg.de Updated 2026-10-06

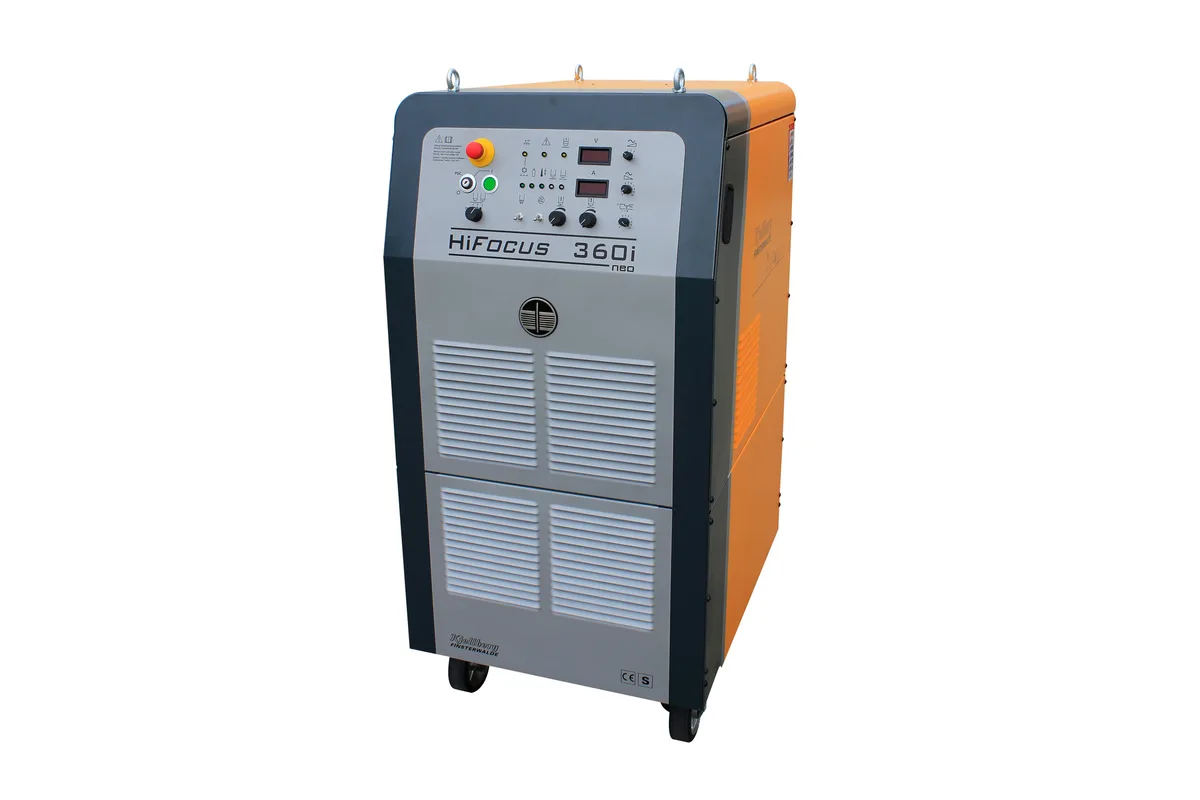

Kjellberg HiFocus 360i neo plasma cutting power source

Image: kjellberg.de, Kjellberg

Key Specifications

cutting current

360 A (at 100 % duty cycle)

cutting current range

10 - 360 A

marking current

5 - 50 A

cutting range

0.5 - 80 mm (0.02 - 3.1 in)

cutting range recommended

0.5 - 60 mm (0.02 - 2.4 in)

piercing

up to 50 mm (2.0 in)

How much does the Kjellberg HiFocus 360i neo cost?

Price estimate

Uncertain

We do not have a price for the Kjellberg HiFocus 360i neo that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Kjellberg HiFocus 360i neo is a 360 A plasma power source for mechanised cutting and marking, with a cutting range of 0.5 - 80 mm (0.02 - 3.1 in). It has two roles in the maker's range: a stand-alone unit for plate work, and the base power source of the HiFocus 600i neo system, where it is paired with a power module.

Piercing is where it earns its place. The piercing figure is up to 50 mm (2.0 in), against up to 40 mm on the HiFocus 280i neo, and it is the same as on the larger HiFocus 440i neo. The recommended cutting range is 0.5 - 60 mm (0.02 - 2.4 in). Up to the 80 mm limit the unit still cuts, from an edge start and outside the recommended band.

Cabinet and torch are shared with its neighbours: 1030 x 680 x 1450 mm and the PerCut 451. Weight is 517 kg (1,140 lb). The supply is 3x 400 V, 50 Hz with a 125 A slow fuse and a connected load of max. 87 kVA, so the feeder has to be sized well above that of the smaller units. The current range of 10 - 360 A is rated at a 100 % duty cycle at an ambient temperature of 40 °C.

Process options follow the upper part of the range. An underwater cutting version is available, HotWire is optional, and the series brochure describes an optional ATChanger that holds up to eight plasma torch heads for automatic changes. Marking runs at 5 - 50 A.

Full Specifications

Parameter	Value
Cutting Current	360 A (at 100 % duty cycle)
Cutting Current Range	10 - 360 A
Marking Current	5 - 50 A
Cutting Range	0.5 - 80 mm (0.02 - 3.1 in)
Cutting Range Recommended	0.5 - 60 mm (0.02 - 2.4 in)
Piercing	up to 50 mm (2.0 in)
Duty Cycle	100 % (ambient temperature 40 °C)
Plasma Torch	PerCut 451
Plasma Gases	O2, N2, Air, Ar, H2, F5
Swirl Gases	O2, N2, Air, F5
Mains Voltage	3x 400 V, 50 Hz
Fuse Slow	125 A
Connected Load	max. 87 kVA
Machine Dimensions	1030 x 680 x 1450 mm (40.6 x 26.8 x 57.1 in)
Machine Weight	517 kg (1,140 lb)

Specifications sourced from kjellberg.de — verified 2026-10-06

Strengths & Limitations

Strengths

Piercing up to 50 mm (2.0 in), the same figure as the HiFocus 440i neo
Recommended cutting range of 0.5 - 60 mm (0.02 - 2.4 in) within a cutting range that reaches 80 mm
360 A at a 100 % duty cycle, adjustable across 10 - 360 A
Also available for underwater cutting
Serves as the base power source of the HiFocus 600i neo system

Limitations

Needs a 125 A slow fuse and a connected load of max. 87 kVA on 3x 400 V, 50 Hz
The 80 mm cutting range extends well beyond the 60 mm end of the recommended range
Weighs 517 kg, so it is placed once and not moved with the table
HotWire and the ATChanger torch head changer are options

Best For

Plate production where piercing up to 50 mm decides the nesting Steel service centers and distributors working inside the 0.5 - 60 mm recommended range Underwater cutting installations Cells with frequent torch head changes, using the optional ATChanger

Frequently Asked Questions

01 How thick can the HiFocus 360i neo pierce?

Piercing is listed up to 50 mm. The cutting range is 0.5 - 80 mm (0.02 - 3.1 in) and the recommended range is 0.5 - 60 mm, so plate between the piercing figure and the 80 mm limit is cut from an edge start.

02 How does the HiFocus 360i neo relate to the HiFocus 600i neo?

The HiFocus 600i neo is a system of two power sources: a HiFocus 360i neo and a power module. Kjellberg lists the 360i neo part of that system with a cutting current of 10 - 360 A and a marking current of 5 - 50 A, the same figures as the stand-alone unit.

03 What supply does the HiFocus 360i neo need?

The mains voltage is 3x 400 V, 50 Hz. The series brochure lists a 125 A slow fuse and a connected load of max. 87 kVA. Kjellberg notes that other voltages and frequencies are available upon request.

04 Which torch does the HiFocus 360i neo use?

The plasma torch row lists the PerCut 451. The series brochure describes an optionally available ATChanger for PerCut torch heads; it can be fitted with up to eight plasma torch heads and exchanges them without manual intervention.
