Machitech Silver Cut 6x12

Q: How much does the Machitech Silver Cut 6x12 cost?

The price estimate for the Machitech Silver Cut 6x12 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-silver-cut-6x12#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

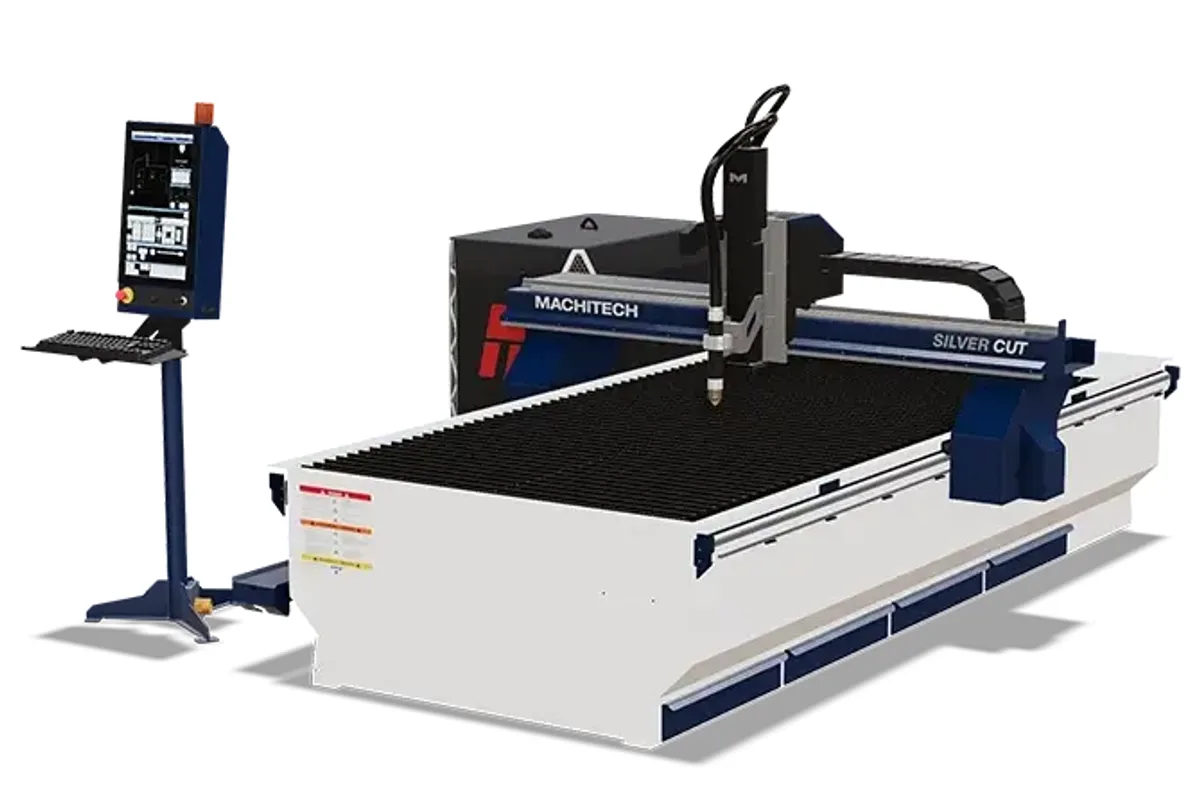

Machitech Silver Cut series CNC plasma table

Image: machitech.com, Machitech Automation

Key Specifications

Rapid Traverse

1,000 ipm (25,400 mm/min)

Accuracy

0.003 in (0.07 mm)

Repeatability

0.002 in (0.05 mm)

processing range

78 in - 150 in (1,980 x 3,810 mm)

table type

Water or downdraft

plasma amperage

170A, 200A, 45-125A

How much does the Machitech Silver Cut 6x12 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Silver Cut 6x12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Machitech Silver Cut 6x12 is the wider of the two short Silver Cut tables. Machitech prints its processing range as 78 in - 150 in (1,980 x 3,810 mm), and it is the largest Silver Cut that can still be ordered as a water table.

That combination matters for one kind of shop in particular. Water tables keep fume and noise down and hold thin sheet flatter against heat, and many fabricators of stainless and aluminum will not give them up. If the work also needs width, this is the size to buy, because the two longest Silver Cuts are downdraft only.

Compared with the Silver Cut 5x10 the frame is wider, 107 in (2,720 mm), and longer, 191 in (4,840 mm). Workpiece weight goes up to 4,410 lbs (2,000 kg) and machine weight to 3,800 lbs (1,720 kg). The height is the same 72 in (1,816 mm).

The XPR170 CorePlus is the plasma system the line is designed for, and the amperage row reads 170A, 200A, 45-125A. Servo motors drive all axes with zero backlash on self-cleaning V groove bearings. The results are 0.003 in (0.07 mm) positional accuracy, 0.002 in (0.05 mm) repeatability, 600 ipm (15,240 mm/min) in the cut and 1,000 ipm (25,400 mm/min) in rapid traverse. Maximum plate thickness is 1.5 in (38 mm) with 7.5 in (190 mm) of Z-axis clearance. Laser plate positioning and automatic torch height control are included. Pipe cutting for 1.6 to 8 in diameter is optional.

Full Specifications

Parameter	Value
Processing Range	78 in - 150 in (1,980 x 3,810 mm)
Table Type	Water or downdraft
Plasma Amperage	170A, 200A, 45-125A
Max Plate Thickness	1.5 in (38 mm)
Z Axis Clearance	7.5 in (190 mm)
Max Cutting Speed	600 ipm (15,240 mm/min)
Rapid Traverse Rate	1,000 ipm (25,400 mm/min)
Positioning Accuracy	0.003 in (0.07 mm)
Repeatability	0.002 in (0.05 mm)
Workpiece Weight	4,410 lbs (2,000 kg)
CNC Control	Machitech NX4 CNC
Laser Positioning	Included
Manual Bevel	Optional
Pneumatic Scribing	Optional
Oxyfuel Cutting	Optional, choice of fuel
Pipe Cutting	Optional, 1.6 to 8 in diameter
Machine Width	107 in (2,720 mm)
Machine Length	191 in (4,840 mm)
Machine Height	72 in (1,816 mm)
Machine Weight	3,800 lbs (1,720 kg), without plasma source or options
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

Largest Silver Cut available as a water table
Wider bed, with a workpiece weight of 4,410 lbs (2,000 kg)
High-definition cutting with the XPR170 CorePlus
Servo motors on all axes, 0.002 in (0.05 mm) repeatability
Laser positioning included for plate alignment

Limitations

Machine is 107 in (2,720 mm) wide and 191 in (4,840 mm) long
600 ipm (15,240 mm/min) maximum cutting speed
No shuttle table or 5-axis bevel head in the option list
Plate thickness limited to 1.5 in (38 mm)

Best For

Stainless and aluminum sheet cut over water Wide plate with high-definition plasma Shops that need both width and a water table General fabrication of wide panels

Frequently Asked Questions

01 What is the processing range of the Silver Cut 6x12?

Machitech prints it as 78 in - 150 in (1,980 x 3,810 mm). Workpiece weight is rated at 4,410 lbs (2,000 kg) and maximum plate thickness at 1.5 in (38 mm).

02 Is the 6x12 available with a water table?

Yes. Its table type is water or downdraft. It is the larger of the two sizes offered with water; the Silver Cut 5x20 and Silver Cut 6x20 are downdraft only.

03 What does the machine weigh and measure?

Total width is 107 in (2,720 mm), total length 191 in (4,840 mm), total height 72 in (1,816 mm). Machine weight is 3,800 lbs (1,720 kg) with standard equipment, without plasma source or options.

04 Which options does Machitech list?

Manual bevel, pneumatic scribing, oxyfuel cutting with a choice of fuel and pipe cutting for 1.6 to 8 in diameter. ProNest 2025 is available as an option in place of the standard ProNest LT.
