Juaristi TX3S
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Table Size
Rapid Traverse
How much does the Juaristi TX3S cost?
Estimated price range
Our best estimate for a cnc boring machine in this class — not a quote from Juaristi. Configuration moves it a long way.
Overview

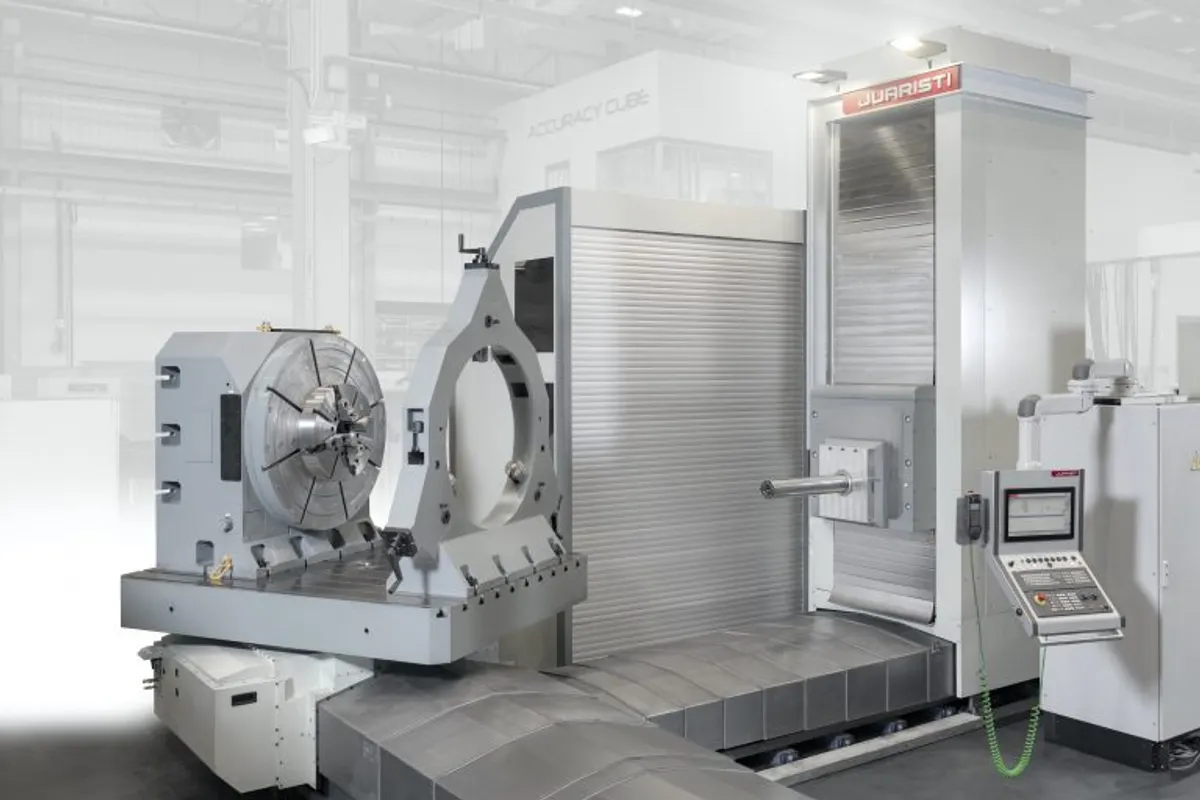

The Juaristi TX3S is a table-type horizontal boring mill that Juaristi lists in a grid of sizes: X travel of 2,000, 3,000, 4,000, 5,000 or 6,000 mm, with Y and Z each offered at 2,000, 2,500 or 3,000 mm. The boring bar is 130-150 mm in diameter with 800 mm of axial W travel, and the table takes up to 20,000 kg.
Y and Z share the same three steps, so the working volume can be kept roughly cubic or stretched along X for long parts. Two table sizes appear in the table, 1,450×1,450 mm and 2,000×2,500 mm, against a single 20,000 kg maximum load. Check which table the load figure applies to before planning a heavy job on the smaller one. Table rotation is listed at 5 min-1, a speed for indexing and positioning, not for turning.
The spindle rows read 40/46 kW and 3,500-3,000 min-1. The order of the values suggests the higher speed goes with the lower power and the smaller bar, but the table does not state the pairing, so have it confirmed in the quotation. Either way, a top speed of 3,000 min-1 or more leaves room for milling as well as boring.
Rapid traverse is listed as 30-25 m/min, again without saying which axes or sizes get which figure. Juaristi's table gives no tool magazine, spindle taper, control, accuracy or machine weight rows, so those need to come from the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 2,000-3,000-4,000-5,000-6,000 mm |
| Y-Axis Travel | 2,000-2,500-3,000 mm |
| Z-Axis Travel | 2,000-2,500-3,000 mm |
| W Axial Boring Bar | 800 mm |
| Boring Bar Diameter | 130-150 mm |
| Spindle Motor Power | 40/46 kW |
| Max Spindle Speed | 3,500-3,000 min-1 |
| Table Size | 1,450×1,450 / 2,000×2,500 mm |
| Max Table Load | 20,000 kg |
| Table Rotation Speed | 5 min-1 |
| Rapid Traverse Rate | 30-25 m/min |
Specifications sourced from juaristi.com — verified 2026-10-03
Strengths & Limitations
Strengths
- X travel offered in five steps from 2,000 to 6,000 mm, with Y and Z each at 2,000, 2,500 or 3,000 mm
- Maximum table load of 20,000 kg
- Boring bar of 130-150 mm diameter with 800 mm of axial W travel
- Spindle power of 40/46 kW with maximum speeds of 3,500-3,000 min-1
- Rapid traverse listed as 30-25 m/min
Limitations
- Table rotation is listed at 5 min-1, which suits positioning and contouring but not turning operations
- Juaristi's table states no tool magazine capacity, spindle taper or control, so these must be settled in the quotation
- The table does not say which boring bar, power and speed belong together in the 130-150 mm, 40/46 kW and 3,500-3,000 min-1 rows
- A single 20,000 kg maximum table load is listed for both the 1,450×1,450 mm and 2,000×2,500 mm tables, with no figure per table
Best For
Frequently Asked Questions
01
Juaristi lists X travel of 2,000, 3,000, 4,000, 5,000 or 6,000 mm, and Y and Z travel of 2,000, 2,500 or 3,000 mm each. The W axis adds 800 mm of axial boring bar travel. Table sizes are 1,450×1,450 mm and 2,000×2,500 mm.
02
The maximum table load is 20,000 kg, and the table rotates at 5 min-1. Two table sizes are listed, 1,450×1,450 mm and 2,000×2,500 mm, with one load figure for both, so confirm the rating of the table you are ordering.
03
Spindle power is listed as 40/46 kW and maximum speed as 3,500-3,000 min-1, with a boring bar diameter of 130-150 mm. The table does not state which values go together, so the combination should be confirmed for the configuration being quoted.
04
Rapid traverse is listed as 30-25 m/min. The table does not break this down by axis or by machine size, so ask which figure applies to the travel combination you need.
