Emco Mecmill Plus

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

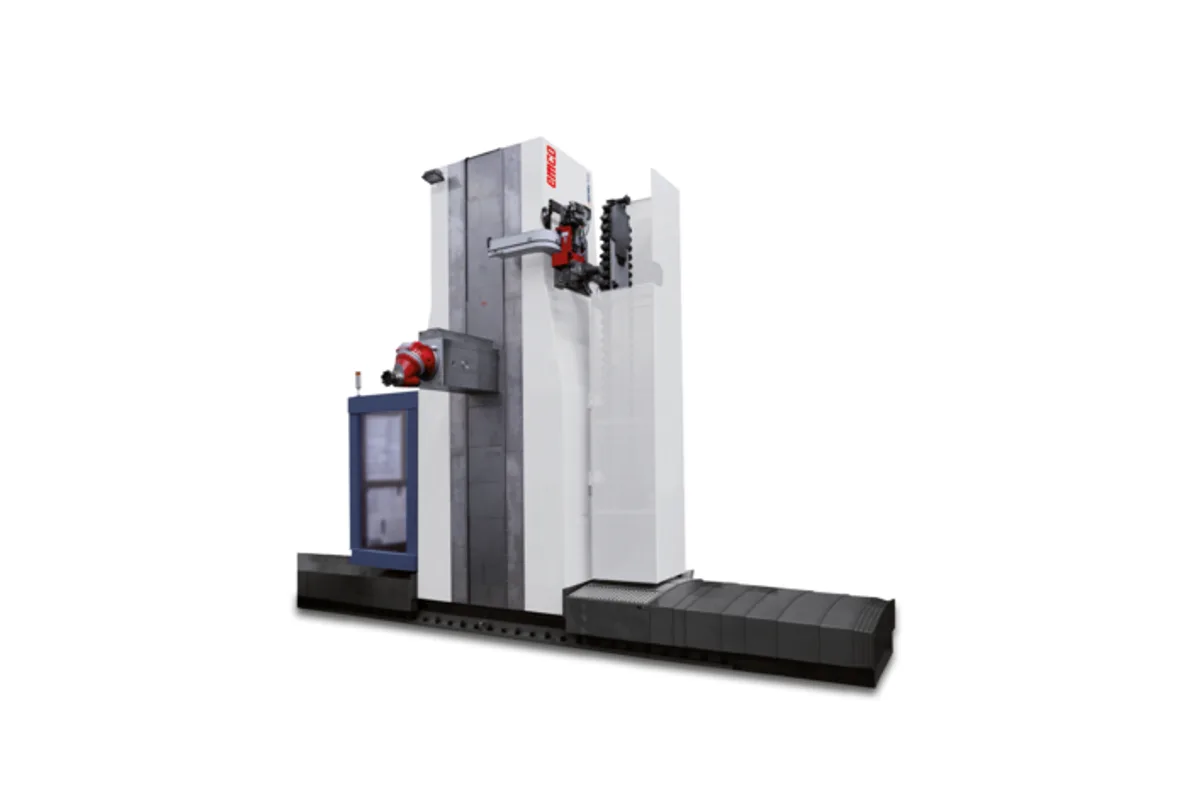

Image: emco-world.com, Emco

Key Specifications

Tool Capacity

40 / 60 / 80 / 100 / 120 / 203 pockets

x axis travel

6000 - 16000 mm

y axis travel

1600 - 1850 mm

z axis travel

4000 - 5000 mm

ram dimensions

550 x 600 mm

feed rate

25 m/min (984 ipm)

How much does the Emco Mecmill Plus cost?

Price estimate

Uncertain

We do not have a price for the Emco Mecmill Plus that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Up to five metres of vertical travel: the Emco Mecmill Plus is the tallest machine Emco lists, with a vertical axis of 4000 - 5000 mm, a longitudinal axis of 6000 - 16000 mm and a cross axis of 1600 - 1850 mm.

Height like that puts heavy demands on the ram. A head working near the top of the column is a long way from the bed, and every bit of ram droop shows up in the part. Emco answers with a larger ram, 550 x 600 mm, a box-in-box column and a patented ram balancing system that compensates the weight of the extended ram. The feed rate is 25 m/min (984 ipm), slightly lower than on the Mecmill, which is the usual consequence of more moving mass.

The head programme goes further too. The universal head is listed with 38 / 57 kW - 50 / 61 kW and 1000 / 1500 Nm - 1500 / 1800 Nm; the second pair is a stronger head that runs at the lower of the two speed ranges in 15 ÷ 6000 rpm - 15 ÷ 5000 rpm. For five-axis finishing there are fork-type heads with a 25° undercut and high-speed spindles up to 24,000 rpm.

Storage is sized to match: 40 / 60 / 80 / 100 / 120 / 203 pockets for tools and 2 / 3 / 4 pockets for heads. The spindle motor in the brochure is 40 kW 1200 Nm, and coolant through the spindle is 20 l/min, 20/40/60/80 bar. Controls are Heidenhain TNC7 / Siemens Sinumerik One.

Full Specifications

Parameter	Value
X Axis Travel	6000 - 16000 mm
Y Axis Travel	1600 - 1850 mm
Z Axis Travel	4000 - 5000 mm
Ram Dimensions	550 x 600 mm
Feed Rate	25 m/min (984 ipm)
CNC Control	Heidenhain TNC7 / Siemens Sinumerik One
Spindle Motor	40 kW 1200 Nm
Coolant Low Pressure	28 l/min, 6 bar
Coolant Through Spindle	20 l/min, 20/40/60/80 bar
Universal Head Option Speed	6000 ÷ 8000 rpm
Offset Spindle Head Speed	3,000 rpm
Fork Head Speed	24,000 rpm
Tool Capacity	40 / 60 / 80 / 100 / 120 / 203 pockets
Head Magazine	2 / 3 / 4 pockets
Universal Head Power	38 / 57 kW - 50 / 61 kW
Universal Head Torque	1000 / 1500 Nm - 1500 / 1800 Nm
Universal Head Speed	15 ÷ 6000 rpm - 15 ÷ 5000 rpm
Universal Head Tool Taper	ISO 50 DIN 69871 (options: BIG PLUS, HSK-100-A DIN 69893)
High Speed Spindle 50 63 Kw	50 / 63 kW, 100 / 125 Nm (S1 / S6), 12000 / 20000 rpm, HSK 100-A / HSK 63-A
High Speed Spindle 45 58 Kw	45 / 58 kW, 300 / 372 Nm (S1 / S6), 12000 rpm, HSK 100-A
High Speed Spindle 42 55 Kw	42 / 55 kW, 67 / 87.5 Nm (S1 / S6), 24000 rpm, HSK 63-A

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Vertical travel of 4000 - 5000 mm
Ram of 550 x 600 mm with patented balancing system
Universal head torque up to the second pair in 1000 / 1500 Nm - 1500 / 1800 Nm
Fork-type heads with 25° undercut and 24,000 rpm
Up to 203 tool pockets and a head magazine of 2 / 3 / 4 pockets

Limitations

Feed rate of 25 m/min (984 ipm) is below the 30 m/min (1,181 ipm) of the Mecmill
The stronger universal head is limited to the lower range in 15 ÷ 6000 rpm - 15 ÷ 5000 rpm
Building height and crane clearance must suit a machine with this vertical travel
Starts at 6000 mm of longitudinal travel

Best For

Very tall workpieces such as press frames and turbine housings Heavy roughing high up on large parts Five-axis finishing with fork-type heads Energy, shipbuilding and heavy-engineering components

Frequently Asked Questions

01 How tall a part can the Mecmill Plus machine?

Vertical axis travel is 4000 - 5000 mm. Longitudinal travel is 6000 - 16000 mm and cross travel 1600 - 1850 mm, with a ram of 550 x 600 mm.

02 What head options does the Mecmill Plus have?

The universal milling head is listed with 38 / 57 kW - 50 / 61 kW and 1000 / 1500 Nm - 1500 / 1800 Nm at 15 ÷ 6000 rpm - 15 ÷ 5000 rpm. Fork-type heads with high-speed spindle reach 24,000 rpm, and a milling head with offset spindle runs at 3,000 rpm.

03 How many tools and heads can it store?

The automatic tool magazine is listed with 40 / 60 / 80 / 100 / 120 / 203 pockets and the automatic head magazine with 2 / 3 / 4 pockets. Emco describes the larger tool store as an automatic tower tool changer.

04 Which controls are available?

The brochure names Heidenhain TNC7 / Siemens Sinumerik One. Machine configuration follows the customer's requirement, so the control is one of several items fixed at the order stage.
