Johnford SV-60

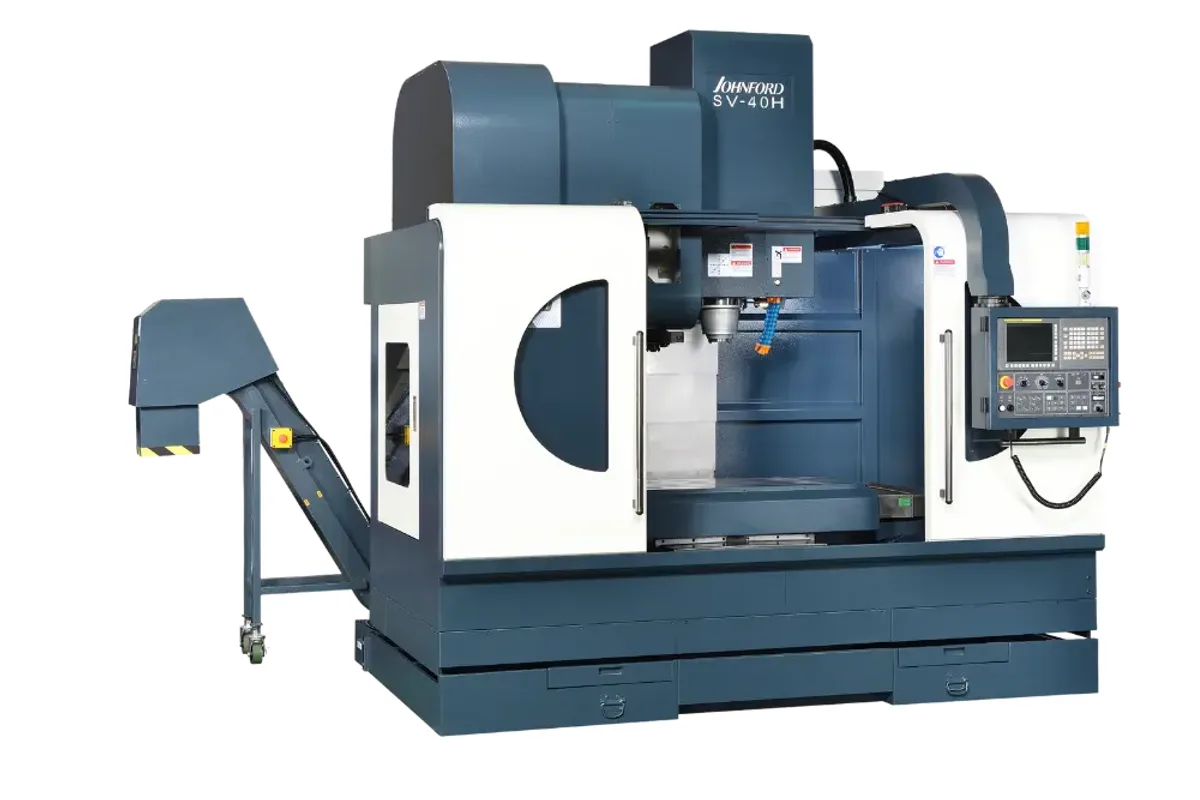

Image: johnford.com.tw, Johnford
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Johnford SV-60 cost?
Price estimate
We do not have a price for the Johnford SV-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford SV-60 is the largest 40-taper model in the SV series, with 1,525 mm (60 in) of X travel on a 1,600 x 700 mm (63 x 27.6 in) table. Y is 710 mm (28 in) and Z is 630 mm (24.8 in). It weighs 11,000 kg (24,250 lb), far more than any smaller SV model.
That weight is the figure to notice. The SV-48, one size down, shares the SV-60's Y and Z travels, its 24 / 24 / 24 m/min (945 / 945 / 945 ipm) rapids and its spindle, yet is listed at 7,000 kg (15,400 lb). The SV-60 is not simply the SV-48 with a longer table. It is 3,940 mm long and 3,240 mm high, and the table is rated for 1,700 kg (3,740 lb).
The spindle row is short on this model. Johnford gives 60~10,000 rpm in BT-40 / CAT-40 with a 7.5 / 11 kW (10.1 / 14.8 hp) Hi-Lo gear drive, and prints no optional spindle or motor in the SV-60 column of the table. The series option list still names 15,000, 18,000 and 20,000 rpm HSK A63 built-in spindles, so anyone who needs more than 10,000 rpm on this size should ask Johnford directly whether those apply.
A 24-tool armless changer is standard, with arm type 24 or 32 tool changers as options. For a table 1,600 mm long the tool limits are modest: 75 mm (3 in) diameter beside other tools, 100 mm (4 in) alone, 320 mm (12.6 in) long and 10 kg (22 lb). The series also lists an automatic pallet changer with pallets up to 1,600 x 700 mm, which matches this table size.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,600 x 700 mm (63 x 27.6 in) |
| X Axis Travel | 1,525 mm (60 in) |
| Y Axis Travel | 710 mm (28 in) |
| Z Axis Travel | 630 mm (24.8 in) |
| Distance Spindle Nose to Table | 100~730 mm (3.94~28.7 in) |
| Distance Spindle to Column | 740 mm (29.1 in) |
| Max Spindle Speed | 60~10,000 rpm (BT-40 / CAT-40) |
| Spindle Motor Power | 7.5 / 11 kW (10.1 / 14.8 hp) Hi-Lo Gear (cont./30 min) |
| Rapid Traverse Xyz | 24 / 24 / 24 m/min (945 / 945 / 945 ipm) |
| Cutting Feed Rate | 1~12,000 mm/min (0.04~472 ipm) |
| Tool Selection | Bi-direction random type, Shortest path |
| Tool Capacity | Armless 24; Arm type 24/32 (Opt.) |
| Max Tool Diameter (full magazine) | 75 mm (3 in) |
| Max Tool Diameter Without Adjacent Tools | 100 mm (4 in) |
| Max Tool Length | 320 mm (12.6 in) |
| Max Tool Weight | 10 kg (22 lb) |
| Max Table Load | 1,700 kg (3,740 lb) |
| Machine Weight | 11,000 kg (24,250 lb) |
| Machine Dimensions | 3,940 x 3,900 x 3,240 mm (155 x 154 x 128 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,525 mm (60 in) of X travel and a 1,600 x 700 mm (63 x 27.6 in) table
- 1,700 kg (3,740 lb) table load, the highest in the SV series
- Machine weight of 11,000 kg (24,250 lb) for a 40-taper machine of this travel
- Geared 7.5 / 11 kW (10.1 / 14.8 hp) drive reaching 10,000 rpm
- Automatic pallet changer option covers pallets up to 1,600 x 700 mm
Limitations
- No optional spindle is printed in this model's column of the specification table
- Tool weight limit of 10 kg (22 lb) restricts large cutters on long parts
- Footprint of 3,940 x 3,900 mm (155 x 154 in) and height of 3,240 mm (128 in)
- 7.5 / 11 kW (10.1 / 14.8 hp) is the same motor as on the much lighter SV-48
Best For
Frequently Asked Questions
01
Travels are 1,525 x 710 x 630 mm (60 x 28 x 24.8 in) and the table is 1,600 x 700 mm (63 x 27.6 in). The machine measures 3,940 x 3,900 x 3,240 mm (155 x 154 x 128 in) and weighs 11,000 kg (24,250 lb).
02
The table load capacity is 1,700 kg (3,740 lb). For comparison within the series, the SV-48 is rated 1,500 kg (3,300 lb) and the SV-41 1,200 kg (2,640 lb).
03
The SV-60 column of Johnford's table shows only the standard 60~10,000 rpm BT-40 / CAT-40 spindle and leaves the optional rows blank. The series option list does mention 15,000, 18,000 and 20,000 rpm for an HSK A63 built-in spindle, so availability on this model needs confirming with the maker.
04
A 24-tool armless changer as standard, with arm type 24 or 32 tool changers optional. Tool selection is bi-directional random with shortest path. Maximum tool size is 75 mm (3 in) in diameter, 100 mm (4 in) without adjacent tools, 320 mm (12.6 in) long and 10 kg (22 lb).
