Johnford DMC-3100P

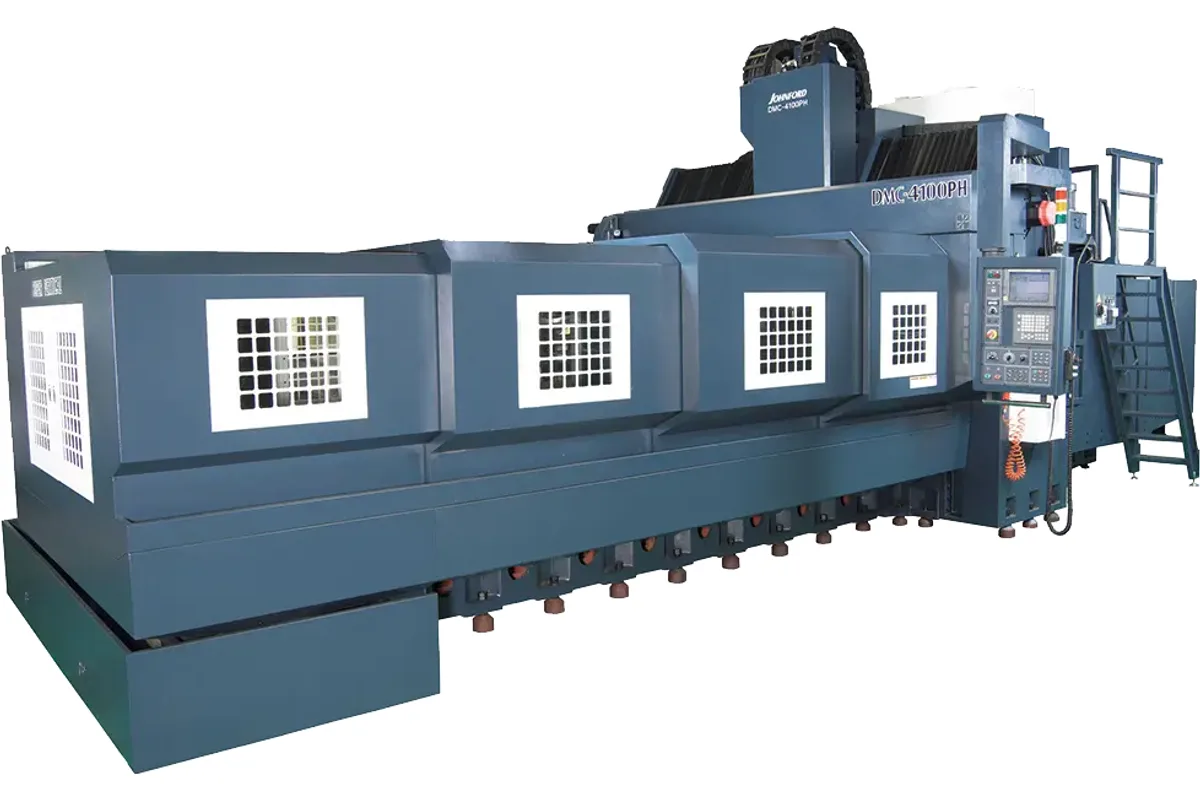

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
distance between columns
x axis travel
How much does the Johnford DMC-3100P cost?
Price estimate
We do not have a price for the Johnford DMC-3100P that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Width is the reason the Johnford DMC-3100P exists. Its columns stand 2,400 mm (94.4 in) apart, Y travel is 2,300 mm (90.5 in), and the table measures 3,200 x 2,050 mm (126 x 80.7 in). X travel is 3,100 mm (122 in) and Z is 800 mm (31.5 in). Johnford calls this group Medium DMC-P, and the 3100P is its shorter 40-taper model.
A table more than two metres wide changes what can be loaded. Large mould bases, bolster plates, sheet-metal die sets and aerospace tooling plates are often closer to square than to long, and they will not pass between the columns of the DMC-3100S, where the gap is 1,796 mm (70.7 in). On the P frame they sit flat with room for clamps.
The frame is heavy for its spindle. Machine weight is 35,000 kg (77,000 lb), and the standard BT-40 / CAT-40 spindle is driven by 7.5 / 11 kW (10.1 / 14.8 hp) through a Hi Lo Gear at 8,000 rpm. The stronger pairing for die and mould finishing is the 18.5 / 23 kW (24.8 / 30.8 hp) built-in spindle. With HSK A63, the table and the accessory list give 15,000, 18,000 and 20,000 rpm as options.
Keep the load rating in view: 10,000 kg (22,000 lb), the figure the narrower S models share. A steel die set that fills this table can exceed it. The longer DMC-4100P is rated 13,000 kg (28,600 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 2,400 mm (94.4 in) |
| Table Size | 3,200 x 2,050 mm (126 x 80.7 in) |
| X Axis Travel | 3,100 mm (122 in) |
| Y Axis Travel | 2,300 mm (90.5 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Spindle Taper | BT-40 / CAT-40; HSK A63(Opt.) |
| Spindle Bearing Diameter | 70 mm (2.8 in) |
| Spindle Speed | 8,000; 10,000/12,000 rpm (Opt.); 15,000, 18,000, 20,000 rpm (Opt.) |
| Spindle Motor Power | 7.5 / 11 kW (10.1 / 14.8 hp) Hi Lo Gear; 18.5 / 23 kW (24.8 / 30.8 hp) Built-in |
| Rapid Traverse Xyz | 12 / 12 / 12 m/min (472 / 472 / 472 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Max Tool Diameter Adjacent Pockets | Ø75 mm (Ø3 in) |
| Tool Capacity | Arm type 24 ; 32 / 40 (Opt.) |
| Max Tool Diameter (full magazine) | Ø100 mm (Ø4 in) |
| Max Tool Length | 320 mm (12.6 in) |
| Max Tool Weight | 10 kg (22 lb) |
| Tool Selection | Bi-direction random type, Shortest path |
| Max Table Load | 10,000 kg (22,000 lb) |
| Machine Dimensions | 8,775 x 5,580 x 3,960 mm (345.5 x 220 x 156 in) |
| Machine Weight | 35,000 kg (77,000 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,300 mm (90.5 in) of Y travel and 2,400 mm (94.4 in) between columns
- 3,200 x 2,050 mm (126 x 80.7 in) table for wide, near-square parts
- Spindle options up to 20,000 rpm with the HSK A63 built-in unit
- 35,000 kg (77,000 lb) frame with full enclosure as standard
Limitations
- Table load of 10,000 kg (22,000 lb) is modest for a table this large
- Standard 7.5 / 11 kW (10.1 / 14.8 hp) geared spindle
- Machine width of 5,580 mm (220 in)
- Z travel of 800 mm (31.5 in), the same as on the smaller frames
Best For
Frequently Asked Questions
01
The distance between columns is 2,400 mm (94.4 in), Y travel is 2,300 mm (90.5 in) and the table is 2,050 mm (80.7 in) wide. Table length is 3,200 mm, with 3,100 mm (122 in) of X travel.
02
The DMC-3100S has 1,778 mm (70 in) of Y, a 3,200 x 1,500 mm (126 x 59 in) table and weighs 26,000 kg (57,270 lb). The DMC-3100P has 2,300 mm (90.5 in) of Y, a table 2,050 mm (80.7 in) wide and weighs 35,000 kg (77,000 lb). X, Z and the 10,000 kg (22,000 lb) table load are the same.
03
BT-40 / CAT-40 on a 70 mm (2.8 in) bearing, with HSK A63 optional. Power is 7.5 / 11 kW (10.1 / 14.8 hp) with the Hi Lo Gear or 18.5 / 23 kW (24.8 / 30.8 hp) with the built-in spindle.
04
8,775 x 5,580 x 3,960 mm (345.5 x 220 x 156 in), with a machine weight of 35,000 kg (77,000 lb). Two screw type chip conveyors and one chain type conveyor with a trolley are part of the standard machine.
