Vision Wide SM-6122

Q: How much does the Vision Wide SM-6122 cost?

The price estimate for the Vision Wide SM-6122 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-sm-6122#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

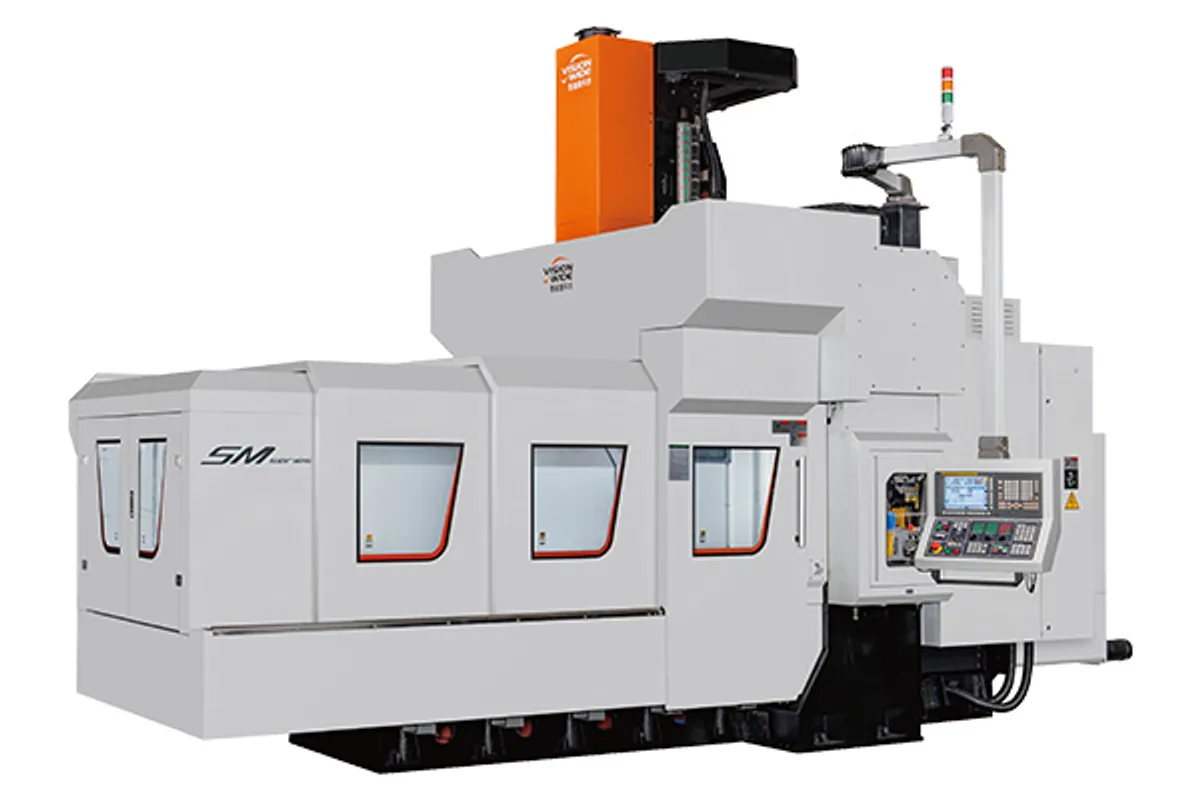

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

6,000 rpm

Table Size

6,300×2,100 mm (248.0×82.7 in)

x axis travel

6,100 mm (240.2 in)

y axis travel

2,200 mm (86.6 in)

z axis travel

800 / 1,000 mm (31.5 / 39.4 in)

max table load

20,000 kg (44,092 lb)

How much does the Vision Wide SM-6122 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide SM-6122 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Six metres of X travel puts the Vision Wide SM-6122 beyond every other moving-table double-column machine in the maker's SM and SF tables. X is 6,100 mm (240.2 in), the table is 6,300×2,100 mm (248.0×82.7 in), and the load rating is 20,000 kg (44,092 lb).

For comparison, the longest SF, the SF-5122, has 5,100 mm (200.8 in) of X and an 18,000 kg (39,683 lb) table. The SM-6122 goes one step further in both and has the larger motor: 22 / 26 kW (29.5 / 34.9 hp).

A table that moves its full length needs roughly twice that length of floor, so this is a machine to plan the building around. Vision Wide's specification table gives no footprint or machine weight. Get the foundation drawing early, because a bed of this length has to be planned into the floor before the machine arrives.

Y travel is 2,200 mm (86.6 in) and Z is 800 mm, or 1,000 mm optionally. The spindle is the linear way 2-step gear type at 6,000 rpm. For parts this long that also need cross travel beyond the table, the SM-6122Y lists 2,700 mm (106.3 in) of Y.

Full Specifications

Parameter	Value
X Axis Travel	6,100 mm (240.2 in)
Y Axis Travel	2,200 mm (86.6 in)
Z Axis Travel	800 / 1,000 mm (31.5 / 39.4 in)
Table Size	6,300×2,100 mm (248.0×82.7 in)
Max Table Load	20,000 kg (44,092 lb)
Spindle Power Cont 30 Min	22 / 26 kW (29.5 / 34.9 hp)
Max Spindle Speed	6,000 rpm
Tool Capacity Vertical Tool Change	24 / 32 / 40 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

6,100 mm (240.2 in) of X travel, the longest in the SM series
20,000 kg (44,092 lb) table load
6,300×2,100 mm (248.0×82.7 in) table
22 / 26 kW (29.5 / 34.9 hp) spindle motor

Limitations

No footprint, machine weight or foundation data in the specification table
Z travel of 800 mm is short against a 6,100 mm (240.2 in) bed
Tool capacity tops out at 40 pcs

Best For

Parts longer than the 5,100 mm (200.8 in) reach of the SM-5122 Long beams, rails and press components up to 20,000 kg (44,092 lb) Several large setups on one table

Frequently Asked Questions

01 What is the longest Vision Wide SM model?

The SM-6122 and its wider variant the SM-6122Y, each with 6,100 mm (240.2 in) of X travel and a 6,300×2,100 mm (248.0×82.7 in) table.

02 How much weight can the SM-6122 carry?

20,000 kg (44,092 lb), the highest table load in the SM series. The SM-5122 carries 18,000 kg (39,683 lb) and the SM-4122 carries 16,000 kg (35,273 lb).

03 How much floor space does the SM-6122 need?

Vision Wide's table does not give machine dimensions or weight. The table measures 6,300×2,100 mm (248.0×82.7 in) and travels 6,100 mm (240.2 in), so the bed is far longer than the table. Request the layout and foundation drawings.

04 What are the Y and Z travels of the SM-6122?

Y travel is 2,200 mm (86.6 in). Z travel is 800 / 1,000 mm (31.5 / 39.4 in), where 800 mm is standard and 1,000 mm is on the option list.
