Hwacheon Vertical Machining Centers (VMC)

Hwacheon Hi-M G1

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

24,000 rpm

Spindle Taper

HSK-E40 (BT-30 opt.)

Tool Capacity

Table Size

750 x 620 mm (29.5 x 24.4 in)

Spindle Power

9.5 kW (12.7 hp)

x axis travel

750 mm (29.5 in)

How much does the Hwacheon Hi-M G1 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon Hi-M G1 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

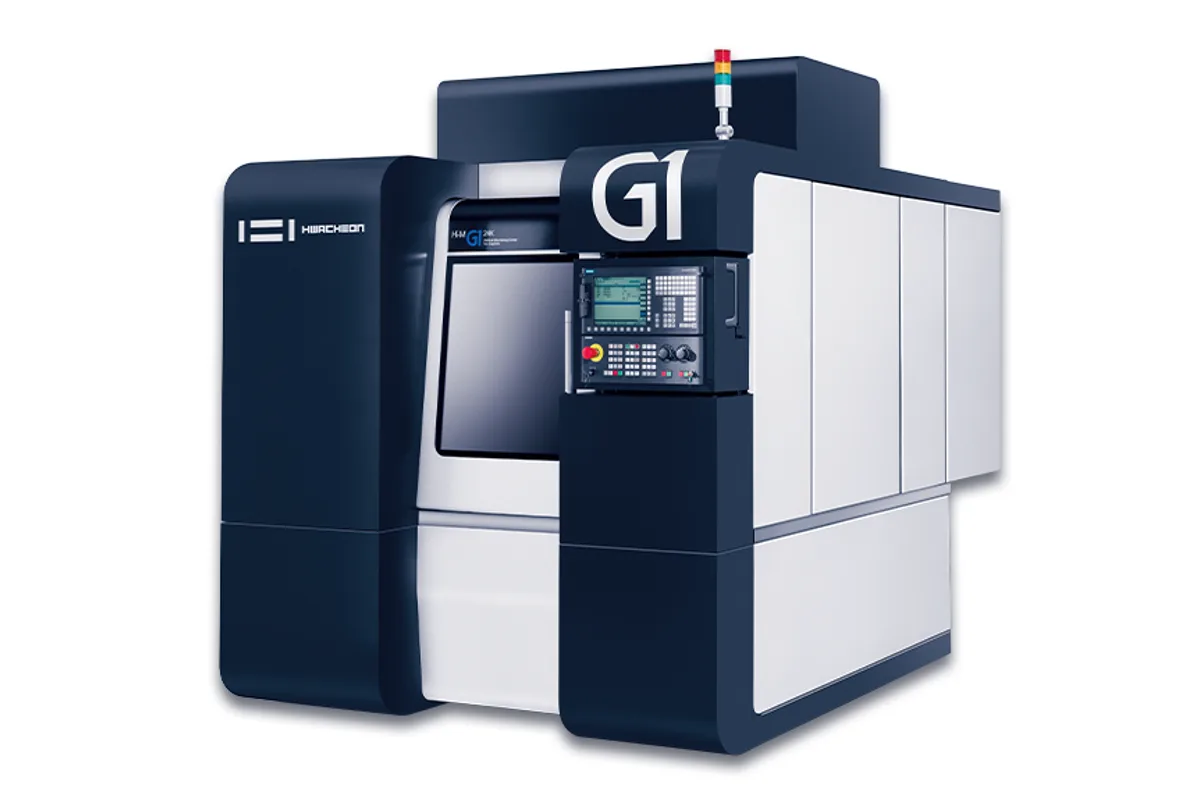

The Hwacheon Hi-M G1 is a compact high-speed vertical machining center with a 24,000 rpm built-in spindle, 750 x 600 x 350 mm (29.5 x 23.6 x 13.8 in) of travel and a 750 x 620 mm (29.5 x 24.4 in) table. The spindle is rated 9.5 kW (12.7 hp), grease lubricated and jacket cooled by an oil cooler, and takes HSK-E40 tooling with BT-30 as an option.

What sets the G1 apart within its frame size is the choice of control. It is offered with either a SIEMENS-828D or a FANUC 0i-MF, and the supply follows the control: 380V, 60Hz for the SIEMENS version and 220V, 60Hz for the FANUC version. A shop already programming one of the two can keep its post-processors and operators. The table also lists a dust collector, 2,710 mm (106.7 in) high, which points the machine at graphite and other dry, dusty cutting rather than flood-cooled steel.

Sixteen tools sit in a fixed-address magazine. Each can be up to Ø63 mm (Ø2.5 in), 200 mm (7.9 in) long and 3 kg (6.6 lb), so the machine is built around small cutters at high speed rather than large face mills. Rapids are 25 / 25 / 20 m/min (984 / 984 / 787 ipm), cutting feed reaches 10,000 mm/min (394 ipm), the table carries 400 kg (882 lb) on five 16 mm T-slots at 125 mm pitch, and the spindle nose sits 100 to 450 mm (3.9 to 17.7 in) above the table.

Two siblings share this envelope. The Hwacheon Hi-M760 raises spindle power to 11.2 kW (15.0 hp) with water cooling. For bigger parts, the Hwacheon Hi-M G2+ moves to a 1,300 x 800 mm (51.2 x 31.5 in) table, a BT 40 spindle and 20 kW (26.8 hp). The G1 needs 35 kVA and 6 to 7 kg/cm² of air, occupies 2,165 x 2,575 mm (85.2 x 101.4 in), stands 2,520 mm (99.2 in) high and weighs 4,800 kg (10,582 lb).

Full Specifications

Parameter	Value
X Axis Travel	750 mm (29.5 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	350 mm (13.8 in)
Distance Spindle Nose to Table	100 ~ 450 mm (3.9 ~ 17.7 in)
Table Size	750 x 620 mm (29.5 x 24.4 in)
Max Table Load	400 kg (882 lb)
T-Slots	16 x 125 mm, 5 slots (width x pitch: 0.63 x 4.9 in)
Max Spindle Speed	24,000 rpm
Spindle Motor Power	9.5 kW (12.7 hp)
Spindle Taper	HSK-E40 (BT-30 opt.)
Spindle Drive	Built-in
Spindle Lubrication	Grease
Spindle Cooling	Jacket cooling (oil cooler)
Rapid Traverse Xyz	25 / 25 / 20 m/min (984 / 984 / 787 ipm)
Cutting Feed Rate	1 ~ 10,000 mm/min (up to 394 ipm)
Tool Capacity	16
Max Tool Diameter (full magazine)	Ø63 mm (Ø2.5 in)
Max Tool Length	200 mm (7.9 in)
Max Tool Weight	3 kg (6.6 lb)
Tool Selection	Fixed address
Power Requirement	35 kVA
Power Supply	SIEMENS version: 380V, 60Hz; FANUC version: 220V, 60Hz
Air Supply	6 ~ 7 kg/cm²
Spindle Coolant Tank	20 L (5 US gal)
Dust Collector Height	2,710 mm (106.7 in)
Machine Height	2,520 mm (99.2 in)
Machine Dimensions	2,165 x 2,575 mm (85.2 x 101.4 in) (length x width)
Machine Weight	4,800 kg (10,582 lb)
CNC Control	SIEMENS-828D or FANUC 0i-MF

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

24,000 rpm built-in spindle with HSK-E40 tooling (BT-30 optional), jacket cooled by an oil cooler
Choice of SIEMENS-828D or FANUC 0i-MF control
750 x 620 mm (29.5 x 24.4 in) table with five 16 mm T-slots at 125 mm pitch
Compact 2,165 x 2,575 mm (85.2 x 101.4 in) footprint on a 35 kVA supply
Cutting feed up to 10,000 mm/min (394 ipm) with 25 / 25 / 20 m/min (984 / 984 / 787 ipm) rapids

Limitations

16-tool magazine, with tools limited to 3 kg (6.6 lb) and 200 mm (7.9 in) long
9.5 kW (12.7 hp) of spindle power limits heavy cuts in steel
Table load is 400 kg (882 lb)
Z travel is 350 mm (13.8 in), with at most 450 mm (17.7 in) from spindle nose to table

Best For

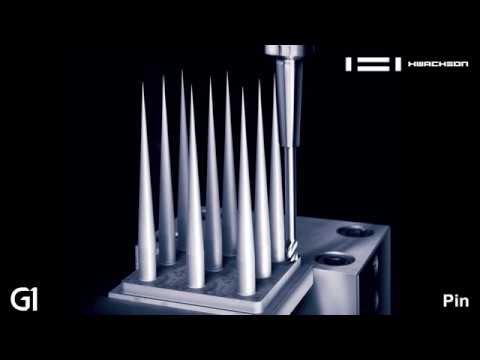

Graphite electrodes and small mould details at 24,000 rpm Small-tool finishing with HSK-E40 or BT-30 tooling Parts and fixtures within 400 kg (882 lb) on a 750 x 620 mm (29.5 x 24.4 in) table Shops standardised on either SIEMENS-828D or FANUC 0i-MF

Frequently Asked Questions

01 What is the difference between the Hi-M G1 and the Hi-M G1 Pro?

Both share the 24,000 rpm, 9.5 kW (12.7 hp) HSK-E40 spindle, the 750 x 620 mm (29.5 x 24.4 in) table and 16 tools. The Hi-M G1 can be ordered with SIEMENS-828D or FANUC 0i-MF control. The Hwacheon Hi-M G1 Pro comes with FANUC 0i-MF only and adds C3-grade ball screws, 0.05 µm linear scales and HTDC thermal displacement control as standard.

02 How does the Hi-M G1 compare with the Hi-M760?

The Hwacheon Hi-M760 has the same 750 x 600 x 350 mm travels, table and 24,000 rpm HSK-E40 spindle, but rates the spindle at 11.2 kW (15.0 hp) against 9.5 kW (12.7 hp) on the G1 and cools it with water. The Hwacheon Hi-M760 ships with SIEMENS-828D and offers FANUC 0i-MF as an option.

03 What tools can the Hi-M G1 carry?

16 tools, selected by fixed address. Each can be up to Ø63 mm (Ø2.5 in) in diameter, 200 mm (7.9 in) long and 3 kg (6.6 lb). Spindle taper is HSK-E40, with BT-30 available as an option for shops already tooled in that system.

04 What power and air does the Hi-M G1 need?

35 kVA. The SIEMENS version runs on 380V, 60Hz and the FANUC version on 220V, 60Hz. Air supply is 6 to 7 kg/cm². Allow 2,165 x 2,575 mm (85.2 x 101.4 in) of floor and 2,520 mm (99.2 in) of height, or 2,710 mm (106.7 in) at the dust collector.
