Hwacheon Vertical Machining Centers (VMC)

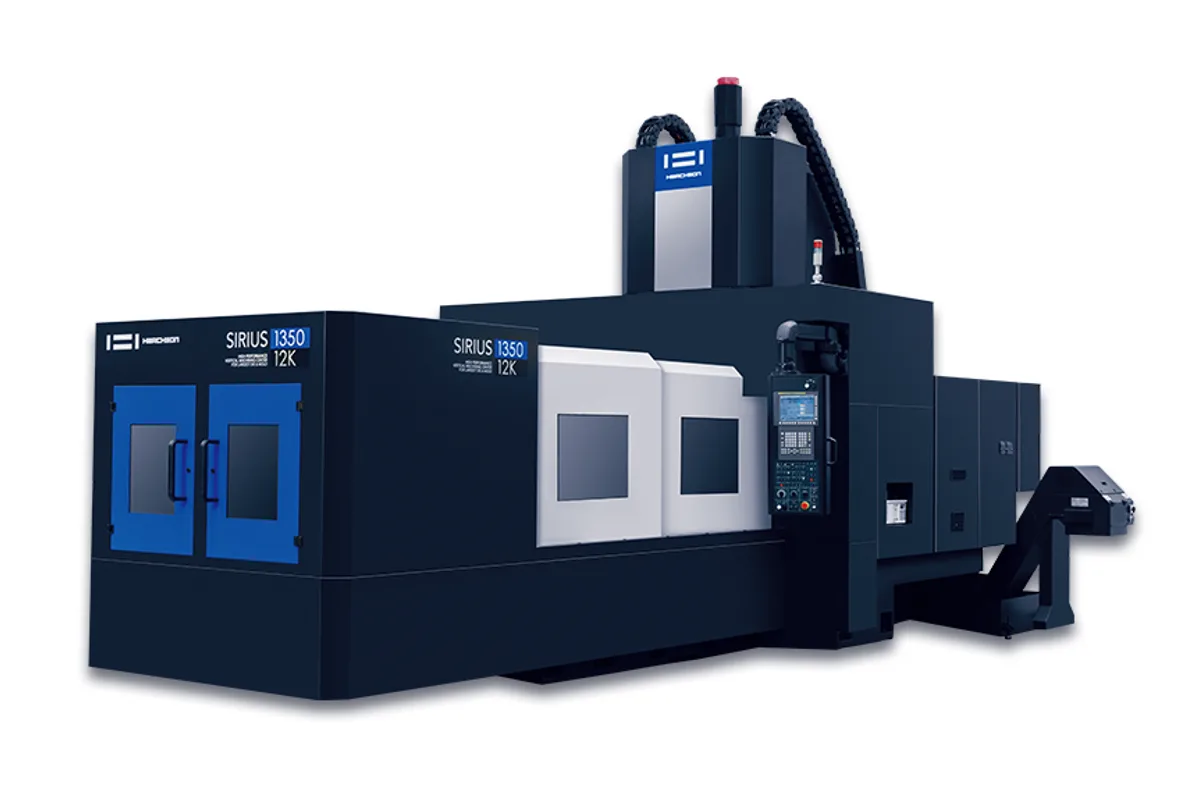

Hwacheon SIRIUS-1350

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

8,000 / 12,000 rpm (8K also in a high-torque version)

Spindle Taper

ISO#50, 7/24 Taper (BBT-50)

Tool Capacity

40 (opt.: 60)

Table Size

2,800 x 1,250 mm (110.2 x 49.2 in)

Spindle Power

8K: 30 / 25 kW (40.2 / 33.5 hp) (high-torque: 55 / 30 kW (73.8 / 40.2 hp)); 12K: 30 / 25 kW (40.2 / 33.5 hp)

x axis travel

2,550 mm (100.4 in)

How much does the Hwacheon SIRIUS-1350 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon SIRIUS-1350 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon SIRIUS-1350 is the heavy-duty version of the 2,800 x 1,250 mm (110.2 x 49.2 in) SIRIUS table: 2,550 mm (100.4 in) of X, 1,350 mm (53.1 in) of Y and 750 mm (29.5 in) of Z, with the table rated for 8,000 kg (17,637 lb). Of its SIRIUS siblings it is the one with a high-torque spindle option, and like the SIRIUS-1750 it comes in a Gap version for taller parts.

Three spindles are listed, all built-in with a BBT-50 taper. The 8,000 and 12,000 rpm units are rated 30 / 25 kW (40.2 / 33.5 hp) on a Ø100 mm (Ø3.9 in) bearing bore. The 8,000 rpm high-torque version is rated 55 / 30 kW (73.8 / 40.2 hp) and moves to a Ø120 mm (Ø4.7 in) bore, which is the one to choose for heavy roughing of steel and cast iron. Tool shanks go beyond BBT-50 here: CAT-50, SK-50 and HSK-100 are options.

The Gap version raises the spindle nose range from 250 ~ 1,000 mm (9.8 ~ 39.4 in) to 500 ~ 1,250 mm (19.7 ~ 49.2 in) and the workpiece passage from 1,550 x 800 mm (61.0 x 31.5 in) to 1,550 x 1,050 mm (61.0 x 41.3 in). The cost is height: 4,335 mm (170.7 in) against 4,085 mm (160.8 in). Z itself stays 750 mm, so on the Gap version short parts sit further from the spindle and may need a riser.

The magazine starts at 40 tools with 60 optional, memory random as standard with fixed address as an option. It takes tools up to 500 mm (19.7 in) long, the longest of the SIRIUS group, Ø120 / Ø200 mm (Ø4.7 / Ø7.9 in) with / without adjacent tools, and 20 kg (44 lb).

Rapids are 16 / 16 / 16 m/min (630 / 630 / 630 ipm). The machine weighs 25,000 kg (55,115 lb), occupies 8,120 x 4,340 mm (319.7 x 170.9 in), and needs 75 kVA and 0.5 ~ 0.7 MPa x 1,870 NL/min of air. The coolant tank is 450 L (119 US gal) and the control a Fanuc 31i-B.

Full Specifications

Parameter	Value
X Axis Travel	2,550 mm (100.4 in)
Y Axis Travel	1,350 mm (53.1 in)
Z Axis Travel	750 mm (29.5 in)
Distance Spindle Nose to Table	250 ~ 1,000 mm (9.8 ~ 39.4 in) [Gap version: 500 ~ 1,250 mm (19.7 ~ 49.2 in)]
Max Workpiece Passage W X H	1,550 x 800 mm (61.0 x 31.5 in) [Gap version: 1,550 x 1,050 mm (61.0 x 41.3 in)]
Table Size	2,800 x 1,250 mm (110.2 x 49.2 in)
Max Table Load	8,000 kg (17,637 lb)
T-Slots	22 x 160 mm (0.87 x 6.30 in), 7 slots (width x pitch, count)
Max Spindle Speed	8,000 / 12,000 rpm (8K also in a high-torque version)
Spindle Motor Power	8K: 30 / 25 kW (40.2 / 33.5 hp) (high-torque: 55 / 30 kW (73.8 / 40.2 hp)); 12K: 30 / 25 kW (40.2 / 33.5 hp)
Spindle Taper	ISO#50, 7/24 Taper (BBT-50)
Spindle Bearing Bore	8K: Ø100 mm (Ø3.9 in) [high-torque: Ø120 mm (Ø4.7 in)]; 12K: Ø100 mm (Ø3.9 in)
Spindle Drive	Built-in motor
Spindle Bearing Lubrication	Oil-jet
Spindle Cooling	Jacket cooling (oil cooler)
Rapid Traverse Xyz	16 / 16 / 16 m/min (630 / 630 / 630 ipm)
Tool Shank	BBT-50 (opt.: CAT-50 / SK-50 / HSK-100)
Pull Stud	90˚
Tool Capacity	40 (opt.: 60)
Max Tool Diameter (full magazine)	Ø120 / Ø200 mm (Ø4.7 / Ø7.9 in) (with / without adjacent tools)
Max Tool Length	500 mm (19.7 in)
Max Tool Weight	20 kg (44 lb)
Tool Selection	Memory Random (opt.: Fixed Address)
Power Requirement	75 kVA
Air Supply	0.5 ~ 0.7 MPa x 1,870 NL/min
Coolant Tank Capacity	450 L (119 US gal)
Machine Height	4,085 mm (160.8 in) [Gap version: 4,335 mm (170.7 in)]
Floor Space	8,120 x 4,340 mm (319.7 x 170.9 in)
Machine Weight	25,000 kg (55,115 lb)
CNC Control	Fanuc 31i-B

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

8,000 kg (17,637 lb) table load, against 5,000 kg (11,023 lb) on the SIRIUS-1250 with the same table size
Optional 8,000 rpm high-torque spindle rated 55 / 30 kW (73.8 / 40.2 hp) on a Ø120 mm (Ø4.7 in) bearing bore
Gap version opens the passage to 1,550 x 1,050 mm (61.0 x 41.3 in) and the nose range to 500 ~ 1,250 mm (19.7 ~ 49.2 in)
40-tool magazine as standard, 60 optional, with tools up to 500 mm (19.7 in) long
Tool shank options of CAT-50, SK-50 and HSK-100 alongside the standard BBT-50

Limitations

Z travel is 750 mm (29.5 in) in both versions; the Gap version raises the spindle rather than adding stroke
Rapids are 16 / 16 / 16 m/min (630 / 630 / 630 ipm) on a 2,550 mm (100.4 in) X stroke
Coolant tank is 450 L (119 US gal) for a 2,800 x 1,250 mm table
The Gap version stands 4,335 mm (170.7 in) tall and the footprint is 8,120 x 4,340 mm (319.7 x 170.9 in)

Best For

Heavy roughing with the 55 / 30 kW high-torque spindle Workpieces up to 8,000 kg (17,637 lb) Tall parts in the Gap version, up to 1,050 mm (41.3 in) passage height Jobs needing long tools up to 500 mm (19.7 in) Shops standardised on CAT-50, SK-50 or HSK-100 holders

Frequently Asked Questions

01 What does the SIRIUS-1350 Gap version change?

It raises the spindle nose range from 250 ~ 1,000 mm (9.8 ~ 39.4 in) to 500 ~ 1,250 mm (19.7 ~ 49.2 in) and the workpiece passage from 1,550 x 800 mm (61.0 x 31.5 in) to 1,550 x 1,050 mm (61.0 x 41.3 in). Machine height goes from 4,085 mm (160.8 in) to 4,335 mm (170.7 in). Z travel stays 750 mm (29.5 in).

02 Which SIRIUS-1350 spindle suits heavy cutting?

The 8,000 rpm high-torque version, rated 55 / 30 kW (73.8 / 40.2 hp) with a Ø120 mm (Ø4.7 in) bearing bore. The standard 8,000 rpm and the 12,000 rpm spindles are both rated 30 / 25 kW (40.2 / 33.5 hp) on a Ø100 mm (Ø3.9 in) bore, so the 12K is the choice only when speed matters more than power.

03 How does the SIRIUS-1350 compare with the SIRIUS-1250?

Same 2,800 x 1,250 mm (110.2 x 49.2 in) table, but the SIRIUS-1350 rates it for 8,000 kg (17,637 lb) against 5,000 kg (11,023 lb), adds 100 mm of Y (1,350 against 1,250 mm), and starts at 40 tools (opt.: 60) where the SIRIUS-1250 starts at 8 (opt.: 40). It also offers the high-torque spindle and the Gap version.

04 What tools fit the SIRIUS-1350 magazine?

Tools up to 500 mm (19.7 in) long and 20 kg (44 lb), Ø120 mm (Ø4.7 in) in diameter with adjacent pockets filled and Ø200 mm (Ø7.9 in) with them empty. The standard shank is BBT-50, with CAT-50, SK-50 and HSK-100 as options. Selection is memory random, with fixed address optional.
