Hwacheon Vertical Machining Centers (VMC)

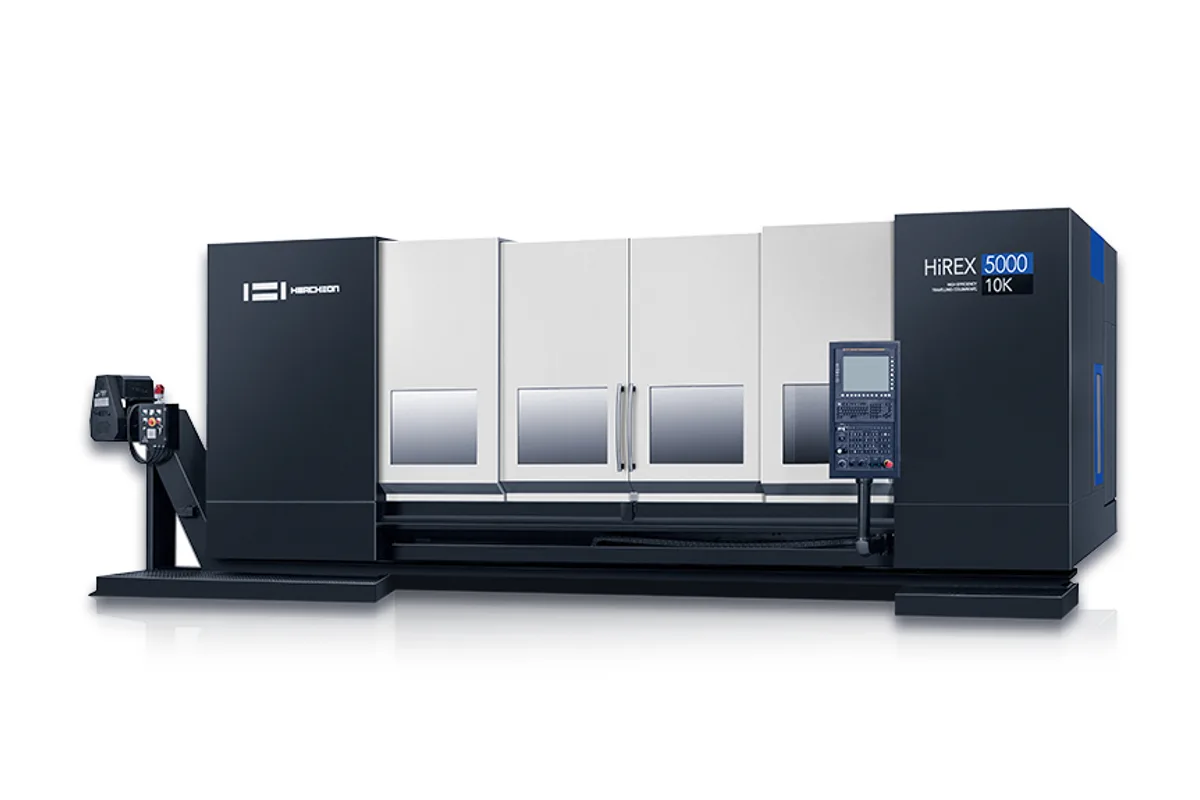

Hwacheon HiREX-5000

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

10,000 / 12,000 rpm (through-spindle coolant opt.)

Spindle Taper

BT-40

Tool Capacity

24 (opt.: 30)

Table Size

550 x 5,500 mm (21.7 x 216.5 in)

Spindle Power

10K: 15 / 11 kW (20.1 / 14.8 hp) (opt.: 18.5 / 15 kW (24.8 / 20.1 hp)); 12K: 18.5 / 15 kW (24.8 / 20.1 hp)

x axis travel

5,000 mm (196.9 in)

How much does the Hwacheon HiREX-5000 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon HiREX-5000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon HiREX-5000 is the middle size of Hwacheon's long-travel verticals, with 5,000 mm (196.9 in) of X, 520 mm (20.5 in) of Y and 570 mm (22.4 in) of Z over a 550 x 5,500 mm (21.7 x 216.5 in) table. Unlike the HiREX-4000 it comes in a single width, and its table is rated at 5,800 kg (12,787 lb).

A table five and a half metres long and 550 mm wide is made for work that is long rather than wide: extruded profiles, rails, frames, or a row of fixtures loaded in turn along X. Five T-slots, 18 mm wide at 110 mm (4.33 in) pitch, run its length, and the spindle centre sits 660 mm (26.0 in) from the column. Rapids are 30 / 36 / 36 m/min (1,181 / 1,417 / 1,417 ipm), so the long X axis is the slowest of the three, which matters on parts with many short moves spread along the bed.

The spindle choice is between speed and power at the low end. Both versions are direct-drive BT-40 on Ø70 mm (Ø2.8 in) bearings with grease lubrication. The 10K version runs to 10,000 rpm on 15 / 11 kW (20.1 / 14.8 hp), with 18.5 / 15 kW (24.8 / 20.1 hp) as an option, and is cooled by a fan cooler. The 12K version reaches 12,000 rpm on 18.5 / 15 kW (24.8 / 20.1 hp) with an oil cooler, which suits aluminium profiles cut with small tools. Through-spindle coolant is optional. Tool shanks are BT-40, with BBT-40, CAT-40 and SK-40 as options.

The magazine holds 24 tools, 30 optional, by memory random selection. Each can be up to 300 mm (11.8 in) long and 8 kg (18 lb), and Ø80 mm (Ø3.1 in) in diameter beside other tools or Ø150 mm (Ø5.9 in) with the neighbours empty. The machine needs 45 kVA, 0.5 ~ 0.7 MPa x 690 NL/min of air and a 760 L (201 US gal) coolant tank, takes 8,680 x 3,010 mm (341.7 x 118.5 in) of floor, stands 3,000 mm (118.1 in) high, or 3,250 mm (128.0 in) with through-spindle coolant, and weighs 23,000 kg (50,706 lb). Control is Fanuc 0i-MF Plus.

Full Specifications

Parameter	Value
X Axis Travel	5,000 mm (196.9 in)
Y Axis Travel	520 mm (20.5 in)
Z Axis Travel	570 mm (22.4 in)
Distance Spindle Nose to Table	150 ~ 720 mm (5.9 ~ 28.3 in)
Distance Column to Spindle Center	660 mm (26.0 in)
Table Size	550 x 5,500 mm (21.7 x 216.5 in)
Max Table Load	5,800 kg (12,787 lb)
T-Slots	18 x 110 mm (0.71 x 4.33 in), 5 slots (width x pitch, count)
Max Spindle Speed	10,000 / 12,000 rpm (through-spindle coolant opt.)
Spindle Motor Power	10K: 15 / 11 kW (20.1 / 14.8 hp) (opt.: 18.5 / 15 kW (24.8 / 20.1 hp)); 12K: 18.5 / 15 kW (24.8 / 20.1 hp)
Spindle Taper	BT-40
Spindle Bearing Bore	Ø70 mm (Ø2.8 in)
Spindle Drive	Direct drive
Spindle Bearing Lubrication	Grease
Spindle Cooling	10K: Jacket cooling (fan cooler); 12K: Jacket cooling (oil cooler)
Rapid Traverse Xyz	30 / 36 / 36 m/min (1,181 / 1,417 / 1,417 ipm)
Tool Shank	BT-40 (opt.: BBT-40, CAT-40, SK-40)
Pull Stud	MAS P40T-1 (45˚)
Tool Capacity	24 (opt.: 30)
Max Tool Diameter (full magazine)	Ø80 / Ø150 mm (Ø3.1 / Ø5.9 in) (with / without adjacent tools)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	8 kg (18 lb)
Tool Selection	Memory Random
Power Requirement	45 kVA
Air Supply	0.5 ~ 0.7 MPa x 690 NL/min
Coolant Tank Capacity	760 L (201 US gal)
Machine Height	3,000 mm (118.1 in) [through-spindle coolant: 3,250 mm (128.0 in)]
Floor Space	8,680 x 3,010 mm (341.7 x 118.5 in)
Machine Weight	23,000 kg (50,706 lb)
CNC Control	Fanuc 0i-MF Plus

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

5,000 mm (196.9 in) of X travel over a 550 x 5,500 mm (21.7 x 216.5 in) table
Table rated at 5,800 kg (12,787 lb)
36 m/min (1,417 ipm) rapids on Y and Z, 30 m/min (1,181 ipm) on X
Direct-drive BT-40 spindle to 10,000 or 12,000 rpm, up to 18.5 / 15 kW (24.8 / 20.1 hp)
Tools up to Ø150 mm (Ø5.9 in) with adjacent pockets empty, 300 mm (11.8 in) long and 8 kg (18 lb)

Limitations

Y travel is 520 mm (20.5 in) with no wider version listed, unlike the Y620 option of the Hwacheon HiREX-4000
Standard magazine holds 24 tools, with 30 as an option
Needs 8,680 x 3,010 mm (341.7 x 118.5 in) of floor for a 23,000 kg (50,706 lb) machine
Through-spindle coolant costs extra and raises the height to 3,250 mm (128.0 in)

Best For

Long, narrow parts such as rails and profiles up to 5,000 mm (196.9 in) Rows of fixtures along a 5,500 mm (216.5 in) table Aluminium profiles cut with the 12,000 rpm spindle Heavy long workpieces up to 5,800 kg (12,787 lb)

Frequently Asked Questions

01 How does the HiREX-5000 sit between the HiREX-4000 and HiREX-6000?

The Hwacheon HiREX-4000 has a 4,500 mm (177.2 in) table in 550 or 650 mm widths, rated up to 4,650 kg (10,251 lb). The HiREX-5000 has a 550 x 5,500 mm (21.7 x 216.5 in) table rated at 5,800 kg (12,787 lb). The Hwacheon HiREX-6000 goes to a 650 x 6,500 mm (25.6 x 255.9 in) table rated at 7,300 kg (16,094 lb).

02 Which spindle suits the HiREX-5000 best?

Both are direct-drive BT-40. The 10K spindle runs to 10,000 rpm on 15 / 11 kW (20.1 / 14.8 hp), or 18.5 / 15 kW (24.8 / 20.1 hp) with the option, and is fan cooled. The 12K spindle runs to 12,000 rpm on 18.5 / 15 kW (24.8 / 20.1 hp) and is oil cooled. Pick the 12K for small tools in aluminium; the 10K covers general steel work.

03 What tools does the HiREX-5000 magazine take?

24 tools, or 30 with the option, selected by memory random. Tools may be up to 300 mm (11.8 in) long and 8 kg (18 lb), and up to Ø80 mm (Ø3.1 in) with adjacent tools in place or Ø150 mm (Ø5.9 in) without. Pull studs are MAS P40T-1 (45˚).

04 What does the HiREX-5000 need on site?

A 45 kVA supply, 0.5 ~ 0.7 MPa x 690 NL/min of air and 8,680 x 3,010 mm (341.7 x 118.5 in) of floor. Height is 3,000 mm (118.1 in), or 3,250 mm (128.0 in) with through-spindle coolant. The coolant tank holds 760 L (201 US gal) and the machine weighs 23,000 kg (50,706 lb).
