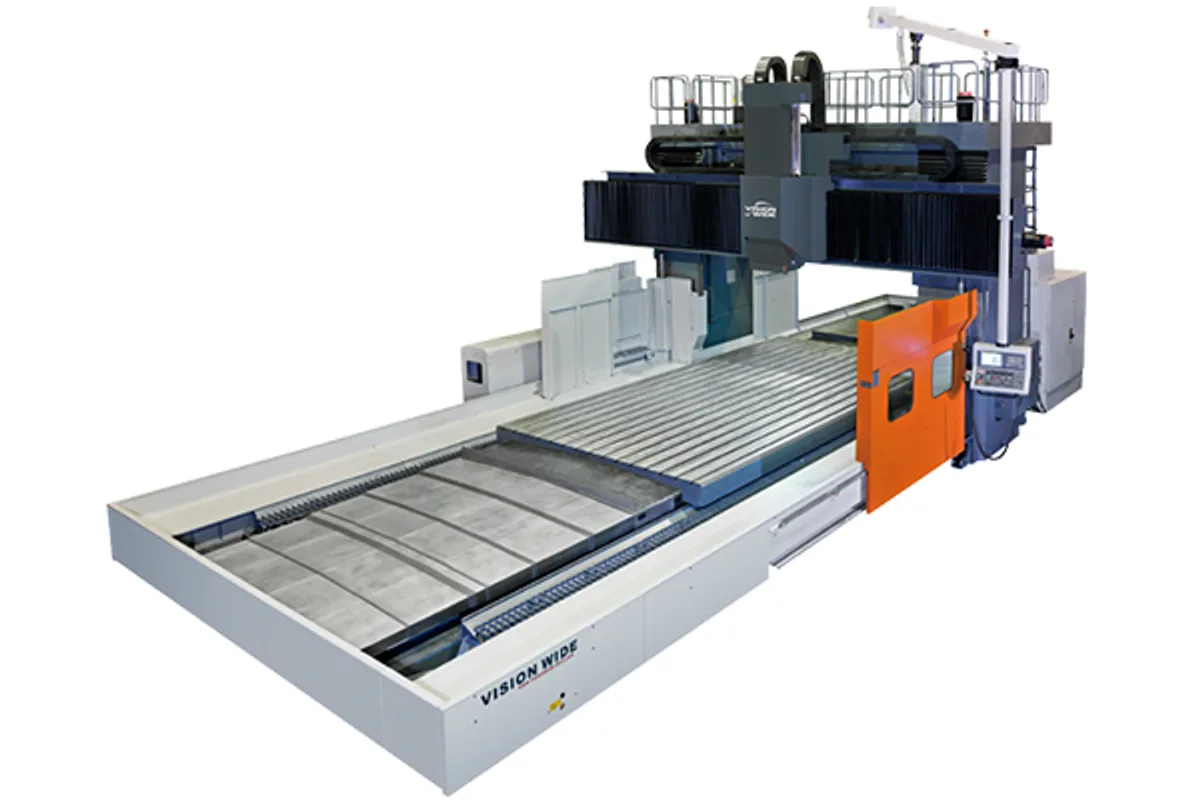

Vision Wide BM-5035 / 5042
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-5035 / 5042 cost?
Price estimate
We do not have a price for the Vision Wide BM-5035 / 5042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Ninety tools is the largest magazine listed for the Vision Wide BM-5035 / 5042, and three kinds of changer are offered to hold them. All three stand on the floor beside the machine.
The first is the floor-standing vertical type, standard with 40 tools and optional with 60 or 90. It serves the vertical spindle. The other two are vertical-horizontal changers, which also load the attachment head in its horizontal position. One is a fixed type and one a random type. In a fixed changer each tool returns to its own pocket; in a random changer it goes to the nearest free one, which shortens the exchange and leaves pocket management to the control. Both are optional, at 40, 60 or 90 pcs.
A machine of this size justifies the larger sets. X travel is 5,100 mm (200.8 in), Y is 3,500 mm or 4,200 mm, and the 5,000×3,000 mm (196.9×118.1 in) table carries 24,000 kg (52,910 lb). A part that fills it and is machined on five faces can run for days.
The cross rail moves on a W axis with 1,000 mm of travel as standard. Spindle power is 22/26 kW (29.5/34.9 hp), or 30/37 kW (40.2/49.6 hp) as an option, and the control is a FANUC 0iMF Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,100 mm (200.8 in) |
| Y Axis Travel | 3,500/ 4,200 mm (137.8/ 165.4 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 5,000×3,000 mm (196.9×118.1 in) |
| Max Table Load | 24,000 kg (52,910 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 10 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Tool magazines of 40, 60 or 90 pcs
- Choice of fixed or random vertical-horizontal tool changers
- 5,000×3,000 mm (196.9×118.1 in) table for 24,000 kg (52,910 lb)
- Movable cross rail with W-axis travel
Limitations
- Both vertical-horizontal changers are optional
- Only the 40 tool vertical magazine is standard
- Cutting feed of 1-7,000 mm/min
Best For
Frequently Asked Questions
01
The floor-standing vertical tool change is listed at 40/60 pcs(Opt.)/90 pcs(Opt.). The two vertical-horizontal changers, fixed and random, are each listed at 40, 60 or 90 pcs, all optional.
02
The table names them only as vertical-horizontal (fixed) and vertical-horizontal (random). In general a fixed changer returns each tool to its own pocket and a random changer uses the nearest free pocket. Ask the maker for exchange times.
03
Table 5,000×3,000 mm (196.9×118.1 in), load 24,000 kg (52,910 lb). X travel 5,100 mm (200.8 in), Y travel 3,500 mm or 4,200 mm on the longer-Y model of the BM-5035 / 5042, Z and W each 1,000 mm as standard.
04
22/26 kW (29.5/34.9 hp), continuous and short-time, with a 30/37 kW (40.2/49.6 hp) option. The standard spindle is a 4,000 rpm 2-step gear type.
