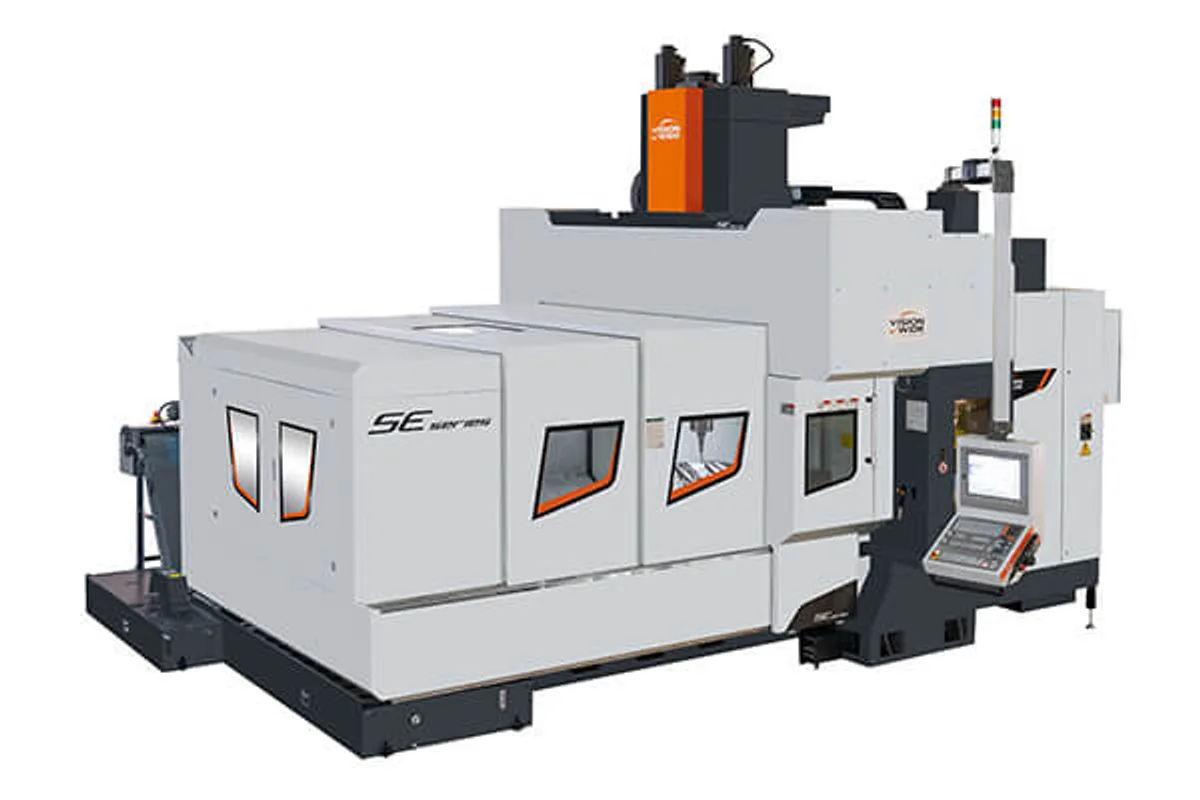

Vision Wide SE-2612
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SE-2612 cost?
Price estimate
We do not have a price for the Vision Wide SE-2612 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Aluminum is where the Vision Wide SE-2612 earns its place. The machine has 2,600 mm (102.4 in) of X travel over a 2,800x1,100 mm (110.2x43.3 in) table, and Vision Wide quotes an aluminum alloy chips removal rate of 5,000 cc/ min for the SE series.
A long, narrow table and a fast spindle is the classic layout for aircraft-type plates, ribs and spars, battery trays and extrusion-based frames. The parts are much longer than they are wide, they start as plate or bar, and most of the material ends up as chips. On such work the 1,200 mm (47.2 in) Y travel is rarely the limit. Spindle speed and feed are, and here the table gives 15,000 rpm and a cutting feed range of 1-24,000 mm/min.
Higher speeds are optional. The feature list says spindle speed reaches 24,000 rpm, and the option list has built-in spindles of 20,000 / 24,000 / 28,000 rpm with a #40 / HSK-A63 interface on the FANUC control.
Do not read the 12,000 kg (26,455 lb) table load as a sign of a roughing machine for steel. Standard power is 15/ 18.5 kW (20.1/ 24.8 hp). The load rating means heavy fixtures and steel mold bases can sit on the table, not that the spindle will remove steel quickly.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 2,800x1,100 mm (110.2x43.3 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
| Tool Capacity | 24 pcs (20/32/40 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Stated aluminum alloy chips removal rate of 5,000 cc/ min for the series
- 2,800x1,100 mm (110.2x43.3 in) table with 2,600 mm (102.4 in) of X travel
- Optional built-in spindles of 20,000 / 24,000 / 28,000 rpm
- 12,000 kg (26,455 lb) table load
Limitations
- Y travel is 1,200 mm (47.2 in)
- 15/ 18.5 kW (20.1/ 24.8 hp) of standard spindle power
- Spindles above 15,000 rpm are options tied to the control choice
Best For
Frequently Asked Questions
01
Vision Wide names aluminum alloy machining as a design purpose of the SE series and gives an aluminum alloy chips removal rate of 5,000 cc/ min. The SE-2612 has a 15,000 rpm standard spindle and cutting feed up to 24,000 mm/min.
02
The option list includes built-in spindles of 20,000 / 24,000 / 28,000 rpm (#40 / HSK-A63) for the FANUC controller, and 18,000 / 20,000 / 24,000 / 28,000 rpm for the HEIDENHAIN controller. The standard spindle is 15,000 rpm.
03
X is 2,600 mm (102.4 in), Y is 1,200 mm (47.2 in), and Z is 800/1,000 mm (31.5/39.4 in) (Opt.), the longer stroke being optional.
04
12,000 kg (26,455 lb). That is the highest rating among the three SE models with 1,200 mm (47.2 in) of Y travel; the SE-2112 is rated for 10,000 kg (22,046 lb).
More from Vision Wide
Other Vertical Machining Centers (VMC)
Okuma MB-46VAE
Röders RXP950
HNK HPF-30M (30x80)

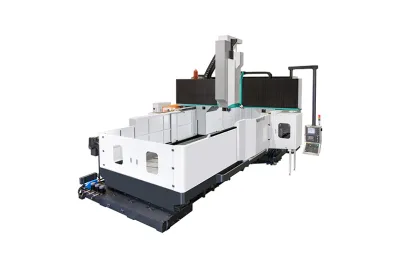

Feeler FDM-4235
