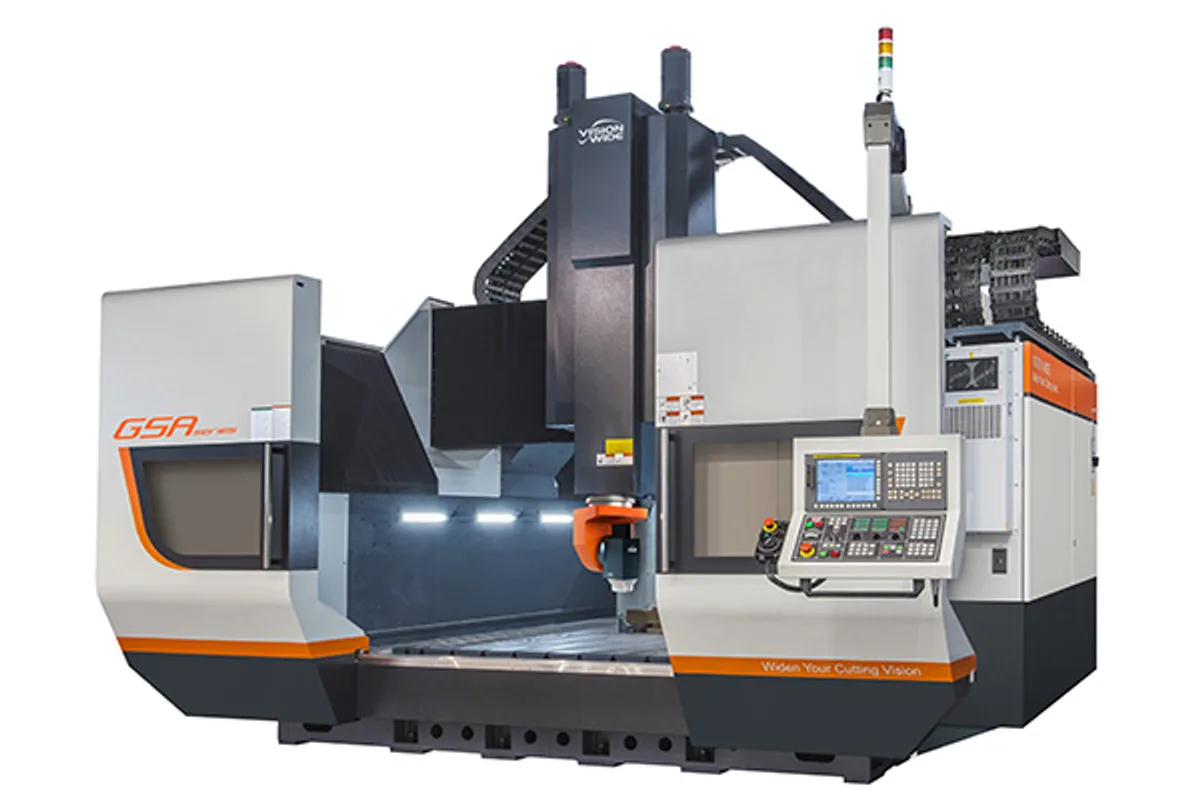

Vision Wide GSA-3032
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-3032 cost?
Price estimate
We do not have a price for the Vision Wide GSA-3032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Head accuracy is the subject to study on the Vision Wide GSA-3032. A two-axis head that tilts and swivels a 50/65 kW (67.1/87.2 hp) spindle has to return to each angle exactly, and over a 3,000×3,200 mm (118.1×126.0 in) table a small angular error becomes a visible step where two angled cuts meet.
Vision Wide addresses this in three places. IAC head rotation error mechanism chain correction is standard: the errors in the head's mechanical chain are measured and compensated. Automatic correction software of rotary axis error is an option, for re-checking the rotary axes in the shop. And auto workpiece measurement, also optional, lets the machine find the part before cutting.
A protection system comes as standard as well. It monitors spindle and motor temperature and rotation axis motor temperature, and limits spindle cutting load in software.
None of these items has a figure attached on the GSA page. The series text promises that the IAC 2-axis head achieves 5-axis accuracy performance, without stating a tolerance, so ask for the head's indexing accuracy and repeatability.
Travels are 3,000 mm (118.1 in) in X and 3,200 mm (126.0 in) in Y. Rapids are 32/32/20 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 3,000×3,200 mm (118.1×126.0 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- IAC head rotation error mechanism chain correction is standard
- Head protection with spindle, motor and rotation axis temperature monitoring
- 3,000×3,200 mm (118.1×126.0 in) fixed table
- Linear scales on X (dual), Y and Z as standard
Limitations
- No indexing accuracy or repeatability figure is published for the head
- Automatic correction software of rotary axis error is an option
- Auto workpiece measurement is an option
Best For
Frequently Asked Questions
01
The page gives no figure. Head rotation error mechanism chain correction is standard and automatic correction software of rotary axis error is optional. Request the indexing accuracy and repeatability of the B and C axes from the maker.
02
It is listed as spindle and motor temperature monitoring, rotation axis motor temperature monitoring and spindle cutting load software protection, all part of the standard IAC head protection system.
03
3,000 mm (118.1 in) in X, 3,200 mm (126.0 in) in Y and 1,000/1,200 mm (39.4/47.2 in)(Opt.) in Z. The table is 3,000×3,200 mm (118.1×126.0 in).
04
Auto workpiece measurement is on the optional accessory list for the GSA series. It is not included in the standard machine.
