Hwacheon Hi-M G2+

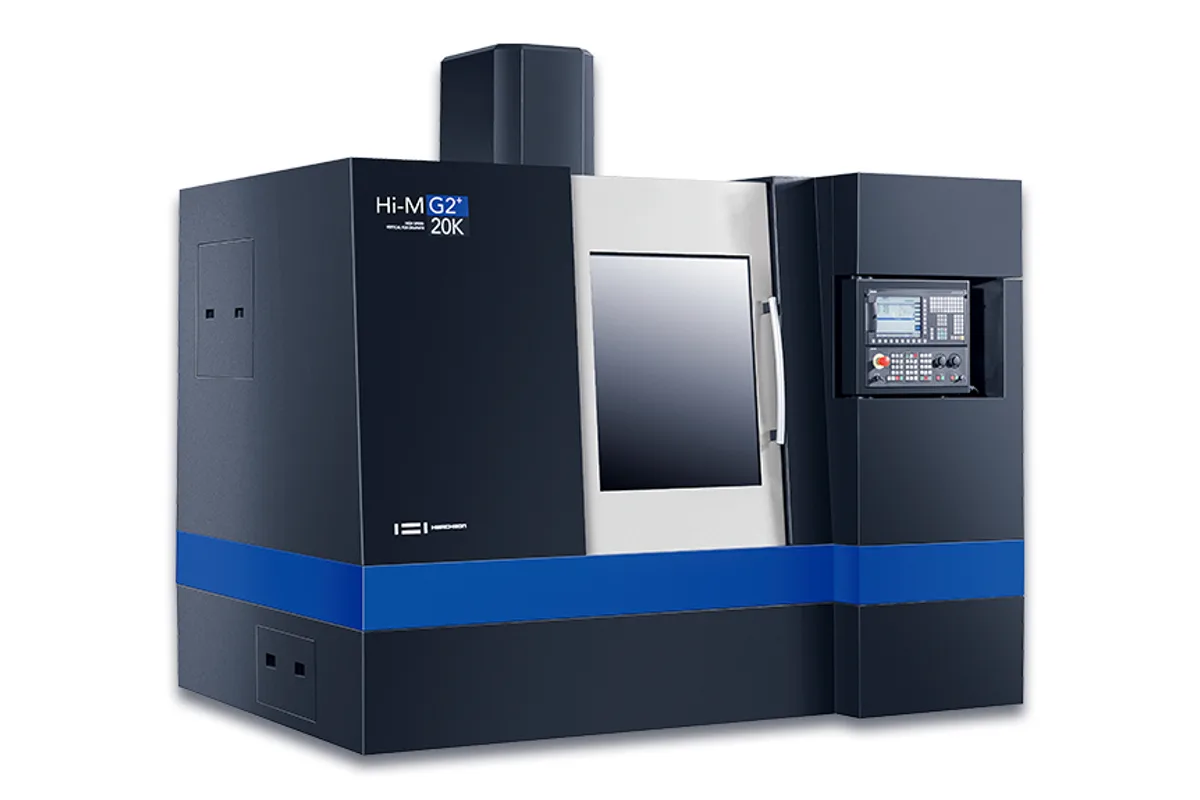

Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon Hi-M G2+ cost?
Price estimate
We do not have a price for the Hwacheon Hi-M G2+ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon Hi-M G2+ is the 40-taper member of the Hi-M family: a vertical machining center with a 20,000 rpm BT 40 built-in spindle rated 20 kW (26.8 hp), 1,200 x 800 x 500 mm (47.2 x 31.5 x 19.7 in) of travel and a 1,300 x 800 mm (51.2 x 31.5 in) table that carries 800 kg (1,764 lb). Where the smaller Hi-M models run HSK-E40 or BT-30 tools, the G2+ takes BT-40 shanks with MAS 403-1982-BT/PT1 (45°) pull studs and tools up to 8 kg (17.6 lb), so it can drive the larger cutters that steel and mould plates need.
The Hwacheon Hi-M1300 sits on the same 1,300 x 800 mm (51.2 x 31.5 in) table, but with a BT-30 spindle of 6 kW (8.0 hp), 12.5 kW (16.8 hp) optional, and a 300 kg (661 lb) table load. The Hwacheon Hi-M1300 runs faster, at 24,000 rpm or 30,000 rpm depending on the spindle version. Choose the G2+ when the work is heavier and the cutters bigger, and the Hi-M1300 when the parts are light and the tools small.
The magazine holds 16 tools as standard, with 24 or 32 as options, all by fixed address. Tools may be up to Ø80 mm (Ø3.1 in), or Ø75 mm (Ø3.0 in) with the 32-tool magazine, and 200 mm (7.9 in) long. Z travel of 500 mm (19.7 in), with the spindle nose 80 ~ 580 mm (3.1 ~ 22.8 in) above the table, leaves room for a vise and a tall part. Rapids are 25 / 25 / 20 m/min (984 / 984 / 787 ipm) and cutting feed reaches 10,000 mm/min (394 ipm). The spindle is grease lubricated and jacket cooled by an oil cooler.
Control is SIEMENS-828D or FANUC 0i-MF, and the choice changes the installation: 380V, 60Hz and 2,830 x 3,080 mm (111.4 x 121.3 in) of floor for SIEMENS, 220V, 60Hz and 2,830 x 3,130 mm (111.4 x 123.2 in) for FANUC. Both need 50 kVA, stand 3,000 mm (118.1 in) high and weigh 9,500 kg (20,944 lb). The spindle coolant tank holds 30 L (8 US gal).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Distance Spindle Nose to Table | 80 ~ 580 mm (3.1 ~ 22.8 in) |
| Table Size | 1,300 x 800 mm (51.2 x 31.5 in) |
| Max Table Load | 800 kg (1,764 lb) |
| T-Slots | 16 x 125 mm, 5 slots (width x pitch: 0.63 x 4.9 in) |
| Max Spindle Speed | 20,000 rpm |
| Spindle Motor Power | 20 kW (26.8 hp) |
| Spindle Taper | BT 40 |
| Spindle Drive | Built-in |
| Spindle Lubrication | Grease |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 25 / 25 / 20 m/min (984 / 984 / 787 ipm) |
| Cutting Feed Rate | 1 ~ 10,000 mm/min (up to 394 ipm) |
| Tool Shank | BT-40 |
| Pull Stud | MAS 403-1982-BT/PT1 (45°) |
| Tool Capacity | 16 (24 / 32 opt.) |
| Max Tool Diameter (full magazine) | Ø80 mm (Ø3.1 in); with 32-tool magazine Ø75 mm (Ø3.0 in) |
| Max Tool Length | 200 mm (7.9 in) |
| Max Tool Weight | 8 kg (17.6 lb) |
| Tool Selection | Fixed address |
| Power Requirement | 50 kVA |
| Power Supply | SIEMENS version: 380V, 60Hz; FANUC version: 220V, 60Hz |
| Air Supply | 6 ~ 7 kg/cm² |
| Spindle Coolant Tank | 30 L (8 US gal) |
| Dust Collector Height | 2,710 mm (106.7 in) |
| Machine Height | 3,000 mm (118.1 in) |
| Machine Dimensions | SIEMENS: 2,830 x 3,080 mm (111.4 x 121.3 in); FANUC: 2,830 x 3,130 mm (111.4 x 123.2 in) (length x width) |
| Machine Weight | 9,500 kg (20,944 lb) |
| CNC Control | SIEMENS-828D or FANUC 0i-MF |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 20 kW (26.8 hp) BT 40 built-in spindle running to 20,000 rpm
- 800 kg (1,764 lb) table load on a 1,300 x 800 mm (51.2 x 31.5 in) table
- Tools up to Ø80 mm (Ø3.1 in) and 8 kg (17.6 lb), with optional 24- or 32-tool magazines
- 500 mm (19.7 in) of Z travel, with 80 ~ 580 mm (3.1 ~ 22.8 in) from spindle nose to table
- Choice of SIEMENS-828D or FANUC 0i-MF control
Limitations
- Top speed of 20,000 rpm is below the 24,000 rpm of the BT-30 Hwacheon Hi-M1300
- Standard magazine holds 16 tools; 24 or 32 are extra-cost options
- With the 32-tool magazine, tool diameter drops to Ø75 mm (Ø3.0 in)
- Weighs 9,500 kg (20,944 lb) and needs a 50 kVA supply
Best For
Frequently Asked Questions
01
Both have a 1,300 x 800 mm (51.2 x 31.5 in) table. The Hwacheon Hi-M1300 uses a BT-30 spindle of 6 kW (8.0 hp), 12.5 kW (16.8 hp) optional, at 24,000 rpm or 30,000 rpm, and rates the table at 300 kg (661 lb). The G2+ uses a 20 kW (26.8 hp) BT 40 spindle at 20,000 rpm and rates the table at 800 kg (1,764 lb).
02
BT-40 shanks with MAS 403-1982-BT/PT1 (45°) pull studs. The standard magazine holds 16 tools, with 24 or 32 as options. Tools can be up to Ø80 mm (Ø3.1 in), or Ø75 mm (Ø3.0 in) with the 32-tool magazine, 200 mm (7.9 in) long and 8 kg (17.6 lb).
03
The supply and the footprint. The SIEMENS-828D version runs on 380V, 60Hz and occupies 2,830 x 3,080 mm (111.4 x 121.3 in). The FANUC 0i-MF version runs on 220V, 60Hz and occupies 2,830 x 3,130 mm (111.4 x 123.2 in). Both need 50 kVA.
04
Z travel is 500 mm (19.7 in), and the distance from spindle nose to table runs from 80 ~ 580 mm (3.1 ~ 22.8 in). Subtract the vise or fixture height and the tool length, up to 200 mm (7.9 in), to see what part height fits.
