Huron VX 11

Q: How much does the Huron VX 11 cost?

The price estimate for the Huron VX 11 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/huron-vx-11#price; the request is passed to Huron or an authorised dealer.

Specs verified 2026-10-04 · huron.fr Updated 2026-10-04

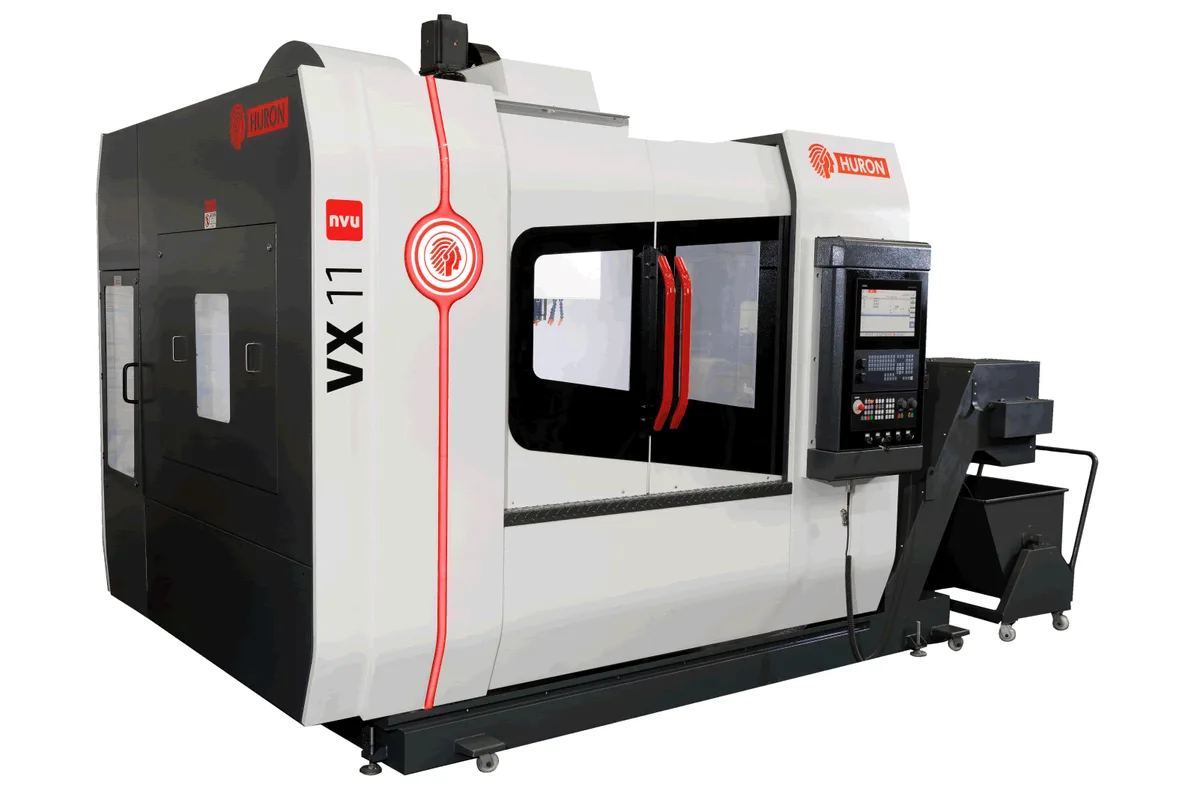

Image: huron.fr, Huron

Key Specifications

Max Spindle

10,000 rpm

Spindle Taper

ISO 40

Tool Capacity

Table Size

1,200 x 630 mm (47.2 x 24.8 in)

Spindle Power

14.3 kW (19.2 hp)

Accuracy

X / Y / Z: 0.010 mm (0.0004 in)

How much does the Huron VX 11 cost?

Price estimate

Uncertain

We do not have a price for the Huron VX 11 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With 1,020 x 600 x 610 mm (40.2 x 23.6 x 24.0 in) of travel, the Huron VX 11 sits in the size class most tool and die shops buy first. Its table is 1,200 x 630 mm and rated for 1,200 kg (2,646 lb), which is the big step from the VX 8 and its 500 kg limit.

The machine itself is 8,300 kg (18,298 lb). Huron builds the VX as a C-frame in ribbed cast iron, with what it calls a broad-based architecture and a reinforced column to withstand cutting forces and absorb vibration. Ballscrews are calibrated, pre-stressed and coupled directly to the motors.

Cutting hardware is common to the range. The ISO 40 spindle turns at up to 10,000 rpm with 14.3 kW and 68 Nm, the characteristic speed is 2,000 rpm, and the changer holds 40 tools of up to 80 mm diameter and 250 mm length. So the VX 11 is a larger, stiffer platform under the same spindle, not a more powerful machine.

It is also the shallowest VX to install. Overall depth with doors opened and conveyor is 2,750 mm against a width of 5,070 mm, which points to a conveyor that discharges to the side. Height is 3,200 mm. Rapids are 24 m/min on all three axes.

Full Specifications

Parameter	Value
X Axis Travel	1,020 mm (40.2 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	610 mm (24.0 in)
Rapid Traverse Xyz	X / Y / Z: 24 m/min
Table Size	1,200 x 630 mm (47.2 x 24.8 in)
Max Table Load	1,200 kg (2,646 lb)
Max Spindle Speed	10,000 rpm
Spindle Taper	ISO 40
Spindle Motor Power	14.3 kW (19.2 hp)
Spindle Torque	68 Nm (50.2 lb-ft)
Spindle Characteristic Speed	2,000 rpm
Tool Capacity	40
Max Tool Diameter (full magazine)	80 mm (3.1 in)
Max Tool Weight	7 kg (15 lb)
Max Tool Length	250 mm (9.8 in)
Positioning Accuracy	X / Y / Z: 0.010 mm (0.0004 in)
Repeatability	X / Y / Z: 0.003 mm (0.0001 in)
Machine Width	5,070 mm (199.6 in)
Machine Depth	2,750 mm (108.3 in)
Machine Height	3,200 mm (126.0 in)
Machine Weight	8,300 kg (18,298 lb)

Specifications sourced from huron.fr — verified 2026-10-04

Strengths & Limitations

Strengths

1,200 kg (2,646 lb) table load on a 1,200 x 630 mm table
Only 2,750 mm deep with doors open and conveyor, the shallowest machine in the VX range
8,300 kg (18,298 lb) of ribbed cast iron under a 1,020 mm X travel
Calibrated, pre-stressed ballscrews with direct motor coupling, per Huron's feature list
24 m/min rapids, which the larger VX 13 does not match at 20 m/min

Limitations

Spindle is the same 14.3 kW, 68 Nm unit as the smaller VX 8
Y travel is 600 mm; parts that need more have to move to the VX 13 at 700 mm
Needs 5,070 mm of width once the conveyor is in place
Tool diameter is capped at 80 mm

Best For

Mould inserts and die components up to 1,200 kg with fixture General toolroom milling in the 1,020 x 600 x 610 mm class Workshops with limited depth behind the machine Small to medium production runs, the use Huron names for the VX

Frequently Asked Questions

01 How does the VX 11 differ from the VX 12?

The VX 12 has 1,220 mm of X travel and a 1,400 x 630 mm table, where the VX 11 has 1,020 mm and 1,200 x 630 mm. Y and Z, the 1,200 kg table load, the spindle and the 40-tool changer are the same. The VX 12 is also deeper to install, 3,610 mm against 2,750 mm.

02 What load can the VX 11 table take?

Huron rates the 1,200 x 630 mm table at 1,200 kg (2,646 lb). That figure covers the workpiece plus vises, fixtures and any rotary table, so weigh the whole setup when planning heavy die blocks.

03 What are the spindle figures for the Huron VX 11?

Maximum speed is 10,000 rpm on an ISO 40 taper. Power is 14.3 kW and torque 68 Nm, with a characteristic speed of 2,000 rpm. Huron's page for the VX 11 lists this one spindle and no higher-speed or higher-torque alternative.

04 What accuracy does Huron state for the VX 11?

Positioning is 0.010 mm and repeatability 0.003 mm on X, Y and Z. Those are the same values Huron gives for the other VX models, so accuracy is not a reason to pick one size over another.
