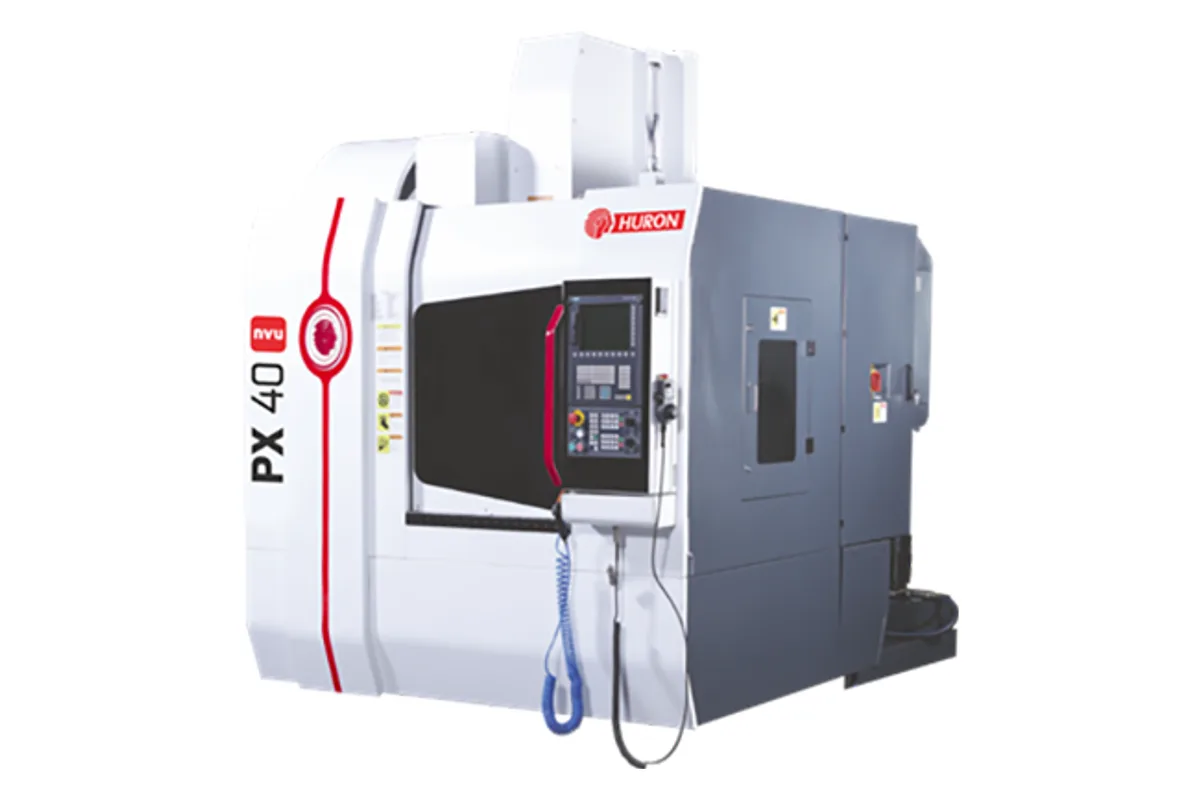

Huron PX 40

Q: How much does the Huron PX 40 cost?

The price estimate for the Huron PX 40 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/huron-px-40#price; the request is passed to Huron or an authorised dealer.

Specs verified 2026-10-04 · huron.fr Updated 2026-10-04

Image: huron.fr, Huron

Key Specifications

Max Spindle

10,000 rpm

Spindle Taper

ISO 40

Tool Capacity

Table Size

915 x 460 mm (36.0 x 18.1 in)

Spindle Power

Siemens: 8.3 / 5.5 kW (11.1 / 7.4 hp); Fanuc: 7.5 / 5.5 kW (10.1 / 7.4 hp)

Accuracy

X / Y / Z: 0.010 mm (0.0004 in)

How much does the Huron PX 40 cost?

Price estimate

Uncertain

We do not have a price for the Huron PX 40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Huron PX 40 is a compact C-frame vertical machining centre with 760 x 510 x 510 mm (29.9 x 20.1 x 20.1 in) of travel, an ISO 40 spindle that runs to 10,000 rpm and a 20-tool changer. Huron describes it as a milling centre dedicated to productivity and suited to series production lines, and the figures fit that description: short travels, quick axes and a small footprint.

Rapids are 40 m/min on X and Y and 32 m/min on Z. The table measures 915 x 460 mm and carries 500 kg (1,102 lb), so the work is small fixtures and vises rather than plates or mould bases. Huron builds the machine with a fixed bed, a cross-travel table and a sliding saddle that carries the spindle.

The spindle rating depends on the drive package. Huron's table gives 8.3 / 5.5 kW and 53 / 35 Nm for the Siemens version, with a characteristic speed of 1,500 rpm, and 7.5 / 5.5 kW and 48 / 26 Nm for the Fanuc version at 2,000 rpm. Either way this is a light spindle. It suits drilling, tapping and finishing cuts with small tools far better than heavy face milling in steel.

Tools can be 80 mm in diameter with every pocket full, or 125 mm with neighbours empty, up to 250 mm long and 7 kg. With doors open and the chip conveyor fitted the machine needs 3,200 x 3,620 mm of floor and weighs 4,300 kg (9,480 lb).

Full Specifications

Parameter	Value
X Axis Travel	760 mm (29.9 in)
Y Axis Travel	510 mm (20.1 in)
Z Axis Travel	510 mm (20.1 in)
Rapid Traverse Xyz	X: 40 m/min; Y: 40 m/min; Z: 32 m/min
Table Size	915 x 460 mm (36.0 x 18.1 in)
Max Table Load	500 kg (1,102 lb)
Max Spindle Speed	10,000 rpm
Spindle Taper	ISO 40
Spindle Motor Power	Siemens: 8.3 / 5.5 kW (11.1 / 7.4 hp); Fanuc: 7.5 / 5.5 kW (10.1 / 7.4 hp)
Spindle Torque	Siemens: 53 / 35 Nm (39.1 / 25.8 lb-ft); Fanuc: 48 / 26 Nm (35.4 / 19.2 lb-ft)
Spindle Characteristic Speed	Siemens: 1,500 rpm; Fanuc: 2,000 rpm
Tool Capacity	20
Max Tool Diameter (full magazine)	80 / 125 mm (3.1 / 4.9 in)
Max Tool Weight	7 kg (15 lb)
Max Tool Length	250 mm (9.8 in)
Positioning Accuracy	X / Y / Z: 0.010 mm (0.0004 in)
Repeatability	X / Y / Z: 0.005 mm (0.0002 in)
Machine Width	3,200 mm (126.0 in)
Machine Depth	3,620 mm (142.5 in)
Machine Height	2,810 mm (110.6 in)
Machine Weight	4,300 kg (9,480 lb)

Specifications sourced from huron.fr — verified 2026-10-04

Strengths & Limitations

Strengths

Rapids of 40 m/min on X and Y and 32 m/min on Z keep non-cutting time short on parts with many features
Small installation: 3,200 x 3,620 mm with doors open and chip conveyor, and 4,300 kg (9,480 lb)
Spindle ratings are published for both a Siemens and a Fanuc drive package, so the choice of control family is open
Positioning of 0.010 mm and repeatability of 0.005 mm on X, Y and Z

Limitations

Spindle power is 8.3 / 5.5 kW (Siemens) or 7.5 / 5.5 kW (Fanuc), which rules out heavy roughing
The magazine holds 20 tools, the smallest count among Huron's vertical machines
Table load stops at 500 kg (1,102 lb) on a 915 x 460 mm table
Torque peaks at 53 / 35 Nm on the Siemens version and 48 / 26 Nm on the Fanuc version

Best For

Series production of small prismatic parts within 760 x 510 x 510 mm Drilling, tapping and light milling at up to 10,000 rpm Cells and lines where a 3,200 x 3,620 mm footprint matters Shops that want to choose between Siemens and Fanuc drive packages

Frequently Asked Questions

01 What are the travels and table size of the Huron PX 40?

X, Y and Z travels are 760, 510 and 510 mm (29.9, 20.1 and 20.1 in). The table is 915 x 460 mm (36.0 x 18.1 in) with an admissible load of 500 kg (1,102 lb). The table is wider than the X travel, which leaves room to clamp at the ends.

02 How powerful is the PX 40 spindle?

It is an ISO 40 spindle with a top speed of 10,000 rpm. Huron lists 8.3 / 5.5 kW and 53 / 35 Nm for the Siemens version and 7.5 / 5.5 kW and 48 / 26 Nm for the Fanuc version. The characteristic speed is 1,500 rpm with Siemens and 2,000 rpm with Fanuc. Plan cuts around small cutters and modest depths.

03 How many tools does the PX 40 hold and how big can they be?

The automatic tool changer has 20 housings. A tool can be up to 80 mm in diameter with adjacent pockets occupied, and Huron's second figure of 125 mm applies to an oversize tool. Maximum tool length is 250 mm and maximum tool weight is 7 kg (15 lb).

04 How much space does the PX 40 need?

Huron gives overall measurements with the doors opened and the chip conveyor in place: 3,200 mm wide, 3,620 mm deep and 2,810 mm high. The machine weighs 4,300 kg (9,480 lb), light enough for most workshop floors, but check the height against door and crane clearances.
