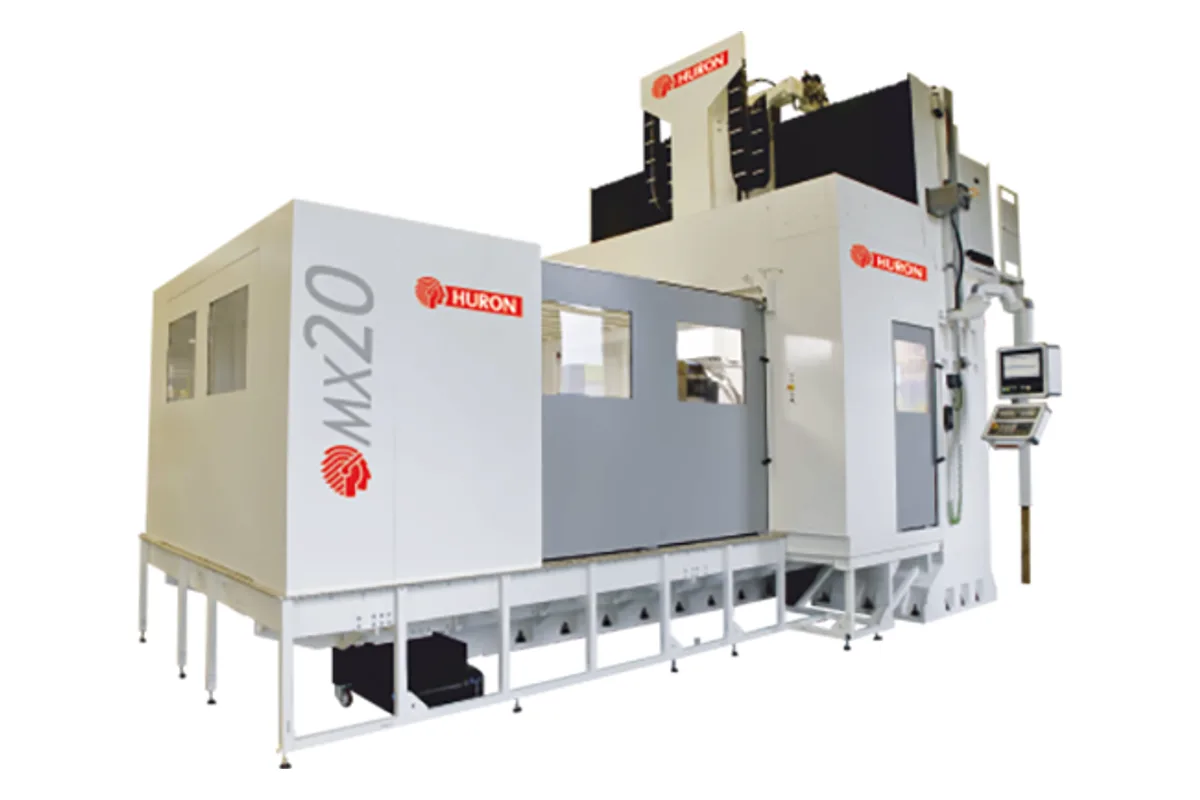

Huron MX 20 M
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron MX 20 M cost?
Price estimate
We do not have a price for the Huron MX 20 M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron MX 20 M is the largest MX milling centre, with 3,000 x 3,100 x 1,600 mm (118.1 x 122.0 x 63.0 in) of travel and a 2,200 mm table rated for 12,000 kg (26,455 lb). It applies the MX universal-head concept to parts the size of a small car.
Size brings the rapid feedrate down to 20 m/min, half the rate of the MX 16 M. The table's C axis turns at 7 rpm. These are the speeds of a machine that spends its time in the cut on large workpieces, and cycle planning should assume long positioning moves.
The head and spindle are unchanged from the MX 16. A tilts from -45° to +180° at 100 rpm on a 45° plane. The spindle is HSK 100-A at up to 10,000 rpm with 43 kW and 415 Nm. With 1,600 mm of Z, a 650 mm tool and the head horizontal, deep features on the flank of a tall part come within reach.
Huron publishes dimensions for the machine without APC only: 9,668 mm wide, 9,480 mm deep and 6,620 mm high. For the APC configuration the table says not available. Stated positioning stays at 0.007 mm on X, Y and Z and 10 sec on A and C, the same as on the smallest universal-head MX. The changer has 60 housings for tools up to 30 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 3,100 mm (122.0 in) |
| Z Axis Travel | 1,600 mm (63.0 in) |
| Rapid Traverse Xyz | 20 m/min |
| Head Type | Universal head |
| A Axis Range | -45° / +180° |
| A Axis Speed | 100 rpm |
| Table Type | Milling |
| Table Size | Ø 2,200 mm (Ø 86.6 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| C Axis Speed | 7 rpm |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | HSK 100-A |
| Spindle Motor Power | 43 kW (57.7 hp) |
| Spindle Torque | 415 Nm (306.1 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 120 mm (4.7 in) |
| Max Tool Weight | 30 kg (66 lb) |
| Max Tool Length | 650 mm (25.6 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec |
| Machine Width | 9,668 mm (380.6 in) without APC |
| Machine Depth | 9,480 mm (373.2 in) without APC |
| Machine Height | 6,620 mm (260.6 in) without APC |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 x 3,100 x 1,600 mm working volume
- 12,000 kg (26,455 lb) on a 2,200 mm table
- Same 0.007 mm linear positioning statement as the smaller MX machines
- 415 Nm HSK 100-A spindle with tools up to 650 mm long
- Universal head tilting from -45° to +180°
Limitations
- Rapid feedrate is 20 m/min
- C axis turns at 7 rpm, for indexing heavy parts
- No dimensions are published for an APC configuration
- Needs 9,668 x 9,480 mm of floor and 6,620 mm of height
Best For
Frequently Asked Questions
01
X travel is 3,000 mm, Y travel 3,100 mm and Z travel 1,600 mm. The table is 2,200 mm in diameter and carries 12,000 kg (26,455 lb).
02
Rapid feedrate is 20 m/min on the linear axes. The head's A axis moves at 100 rpm and the table's C axis at 7 rpm. The MX 16 M, one size down, has 40 m/min rapids.
03
An HSK 100-A spindle with 43 kW, 415 Nm and a 10,000 rpm maximum. The 60-housing changer takes tools up to 120 mm in diameter, 650 mm long and 30 kg (66 lb).
04
Huron's table has a column for the machine with APC, but the entries read not available. Dimensions are given only without APC: 9,668 mm wide, 9,480 mm deep and 6,620 mm high. Ask Huron about pallet options for this size.
