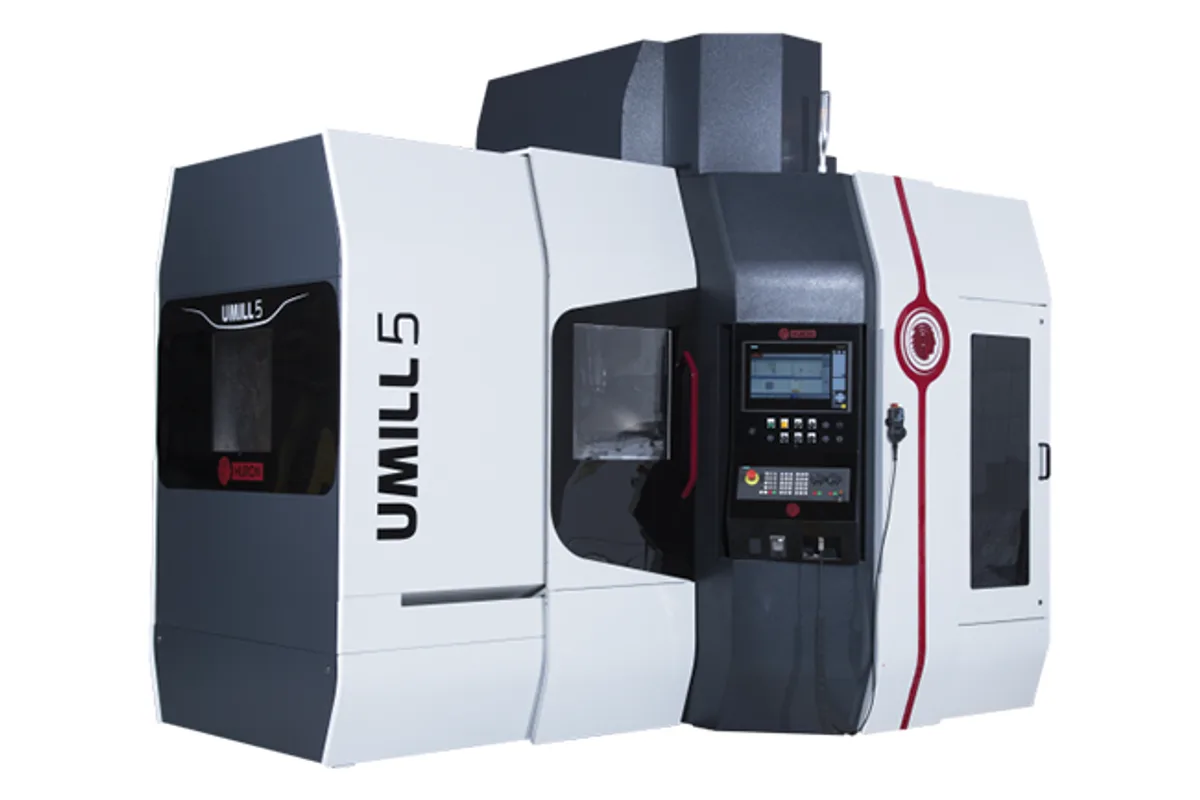

Huron U Mill 5
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron U Mill 5 cost?
Price estimate
We do not have a price for the Huron U Mill 5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron U Mill 5 is a compact five-axis machining centre with a fixed portal and a swivelling rotary table on a cradle. Travels are 500 x 560 x 450 mm (19.7 x 22.0 x 17.7 in), the table is 500 mm in diameter, and the ISO 40 spindle produces 173 Nm at up to 10,000 rpm.
That torque figure sets the U Mill apart from Huron's high-speed five-axis machines. The spindle is rated 18 kW with a characteristic speed of 1,000 rpm, so full torque is on hand at low speed for steel, cast iron and tougher alloys. Huron describes the range as covering work from roughing to finishing in 3 or 5 axes.
The cradle tilts the A axis from +20° to -110° at 25 rpm, and C rotates 360° at 45 rpm. Those speeds suit positioning and steady simultaneous cuts more than fast contouring of small features. Table load is 450 kg (992 lb).
Huron stresses stiffness: a fixed portal in ribbed cast iron with stiffening walls to resist torsion, and a modular design. The machine weighs 11,000 kg (24,250 lb) and stands on 4,200 x 4,110 mm. Positioning is 0.015 mm and repeatability 0.005 mm on the linear axes. The 30-tool changer takes tools up to 80 mm in diameter and 300 mm long.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 560 mm (22.0 in) |
| Z Axis Travel | 450 mm (17.7 in) |
| Rapid Traverse Xyz | 40 m/min |
| A Axis Range | +20° / -110° |
| A Axis Speed | 25 rpm |
| C Axis Range | 360° |
| C Axis Speed | 45 rpm |
| Table Size | dia. 500 mm (dia. 19.7 in) |
| Max Table Load | 450 kg (992 lb) |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | ISO 40 |
| Spindle Motor Power | 18 kW (24.1 hp) |
| Spindle Torque | 173 Nm (127.6 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Length | 300 mm (11.8 in) |
| Positioning Accuracy | X / Y / Z: 0.015 mm (0.0006 in) |
| Repeatability | X / Y / Z: 0.005 mm (0.0002 in) |
| Machine Width | 4,200 mm (165.4 in) |
| Machine Depth | 4,110 mm (161.8 in) |
| Machine Height | 3,150 mm (124.0 in) |
| Machine Weight | 11,000 kg (24,250 lb) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 173 Nm of spindle torque with a characteristic speed of 1,000 rpm
- Cradle table with A from +20° to -110° and continuous C
- 11,000 kg (24,250 lb) of ribbed cast iron for a 500 mm table
- 450 kg (992 lb) table load
- Compact 4,200 x 4,110 mm installation
Limitations
- Spindle tops out at 10,000 rpm
- A axis moves at 25 rpm and C at 45 rpm
- Stated linear positioning is 0.015 mm
- 30 tools, with a 7 kg weight limit per tool
Best For
Frequently Asked Questions
01
500 mm in X, 560 mm in Y and 450 mm in Z, with a rapid feedrate of 40 m/min. The table is 500 mm in diameter with an admissible load of 450 kg (992 lb).
02
The A axis swivels from +20° to -110° at 25 rpm. The C axis rotates 360° at 45 rpm. The table is fixed on a cradle, which gives access to five faces of the workpiece.
03
The U Mill 6 has 700 x 740 x 550 mm travels, a 630 mm table and a 600 kg load, and weighs 13,000 kg. The rotary axes of the U Mill 6 are slower, 20 rpm on A and 35 rpm on C. Spindle, tool changer and accuracy figures are the same on both.
04
An ISO 40 spindle with a maximum speed of 10,000 rpm, 18 kW and 173 Nm. The characteristic speed is 1,000 rpm. Huron describes it as a powerful spindle with high torque for high metal removal rates.
