Johnford SDMC-11000x3200x1400-2H-TU35

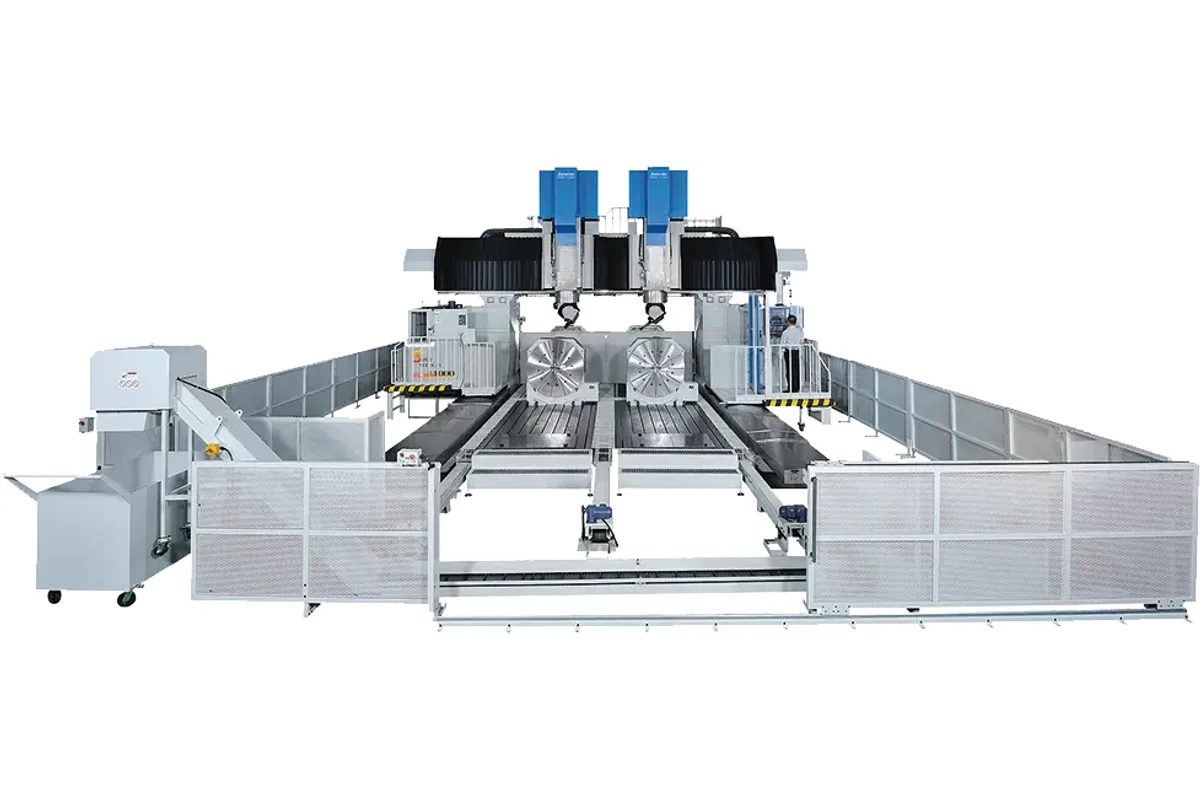

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Johnford SDMC-11000x3200x1400-2H-TU35 cost?
Price estimate
We do not have a price for the Johnford SDMC-11000x3200x1400-2H-TU35 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford SDMC-11000x3200x1400-2H-TU35 is a twin-head, five-axis portal machining center. Each head adds a B axis stroke of ±180° and a C axis stroke of 0 - 360° to linear travels of 11,000 mm (433.1 in), 3,200 mm (126 in) and 1,400 mm (55.1 in).
Rotary axes in the head, on a fixed table, are the arrangement for parts too large to tilt: wing and fuselage tooling, wind turbine blade moulds, ship propeller patterns, long structural members with angled faces. The cutter comes to the surface at whatever angle it needs. The 1,400 mm Z stroke and the 490~1,890 mm (19.3~74.4 in) spindle nose to table range leave room for the swivelling head above a deep mould.
The spindle is rated 37 / 56 kW (49.6 / 75.1 hp) at 4,500 rpm with an HSK-A100 interface. That is a heavy-cutting specification, not a high-speed one. Tools reach Ø200 mm (Ø7.9 in), 500 mm (19.7 in) and 25 kg (55 lb), and each head has its own vertical changer: the table reads 60 tools for one ATC, times two.
X and Y rapids are 20 m/min (787 ipm); Z is 10 m/min (394 ipm). The machine weighs 131,000 kg (288,200 lb) and stands 5,830 mm (229.5 in) high on a footprint of 21,010 x 12,500 mm (827.2 x 492.1 in).
The maker's table states the table load in a unit that cannot be right, so no load figure appears on this page. It should be requested along with the positioning data for the B and C axes, which the page does not give.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 11,000 mm (433.1 in) |
| Y Axis Travel | 3,200 mm (126 in) |
| Z Axis Travel | 1,400 mm (55.1 in) |
| B Axis Range | ±180° |
| C Axis Range | 0 - 360° |
| Distance Spindle Nose to Table | 490~1,890 mm (19.3~74.4 in) |
| Spindle Taper | HSK-A100 |
| Spindle Speed | 4,500 rpm |
| Spindle Motor Power | 37 / 56 kW (49.6 / 75.1 hp) |
| Rapid Traverse Xyz | 20 / 20 / 10 m/min (787 / 787 / 394 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Tool Shank | HSK-A100 |
| Tool Selection | Bi-Direction Random Type,Shortest Path |
| Tool Capacity | 60 Tools for one ATC (Vertical) X 2 |
| Max Tool Diameter (full magazine) | Ø200 mm (Ø7.9 in) |
| Max Tool Length | 500 mm (19.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Machine Length | 21,010 mm (827.2 in) |
| Machine Width | 12,500 mm (492.1 in) |
| Machine Height | 5,830 mm (229.5 in) |
| Machine Weight | 131,000 kg (288,200 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- B axis ±180° and C axis 0 - 360° in each of two heads
- 37 / 56 kW (49.6 / 75.1 hp) spindle with HSK-A100
- 1,400 mm (55.1 in) of Z and up to 1,890 mm (74.4 in) from spindle nose to table
- Two vertical tool changers with 60 tools each
- 11,000 x 3,200 mm of X and Y travel on a fixed table
Limitations
- Top speed of 4,500 rpm limits finishing with small cutters
- The maker publishes no usable table load figure for this model
- 5,830 mm (229.5 in) high and 131,000 kg (288,200 lb)
- Z rapid of 10 m/min (394 ipm)
Best For
Frequently Asked Questions
01
Yes. Beside X, Y and Z the table lists a B axis stroke of ±180° and a C axis stroke of 0 - 360°. The travels are labelled X1/X2, Y1/Y2 and Z1/Z2, which with the 2H code indicates two heads.
02
An HSK-A100 spindle at 4,500 rpm with a 37 / 56 kW (49.6 / 75.1 hp) motor. Maximum tool size is Ø200 mm (Ø7.9 in) by 500 mm (19.7 in), and maximum tool weight is 25 kg (55 lb).
03
21,010 mm (827.2 in) long, 12,500 mm (492.1 in) wide and 5,830 mm (229.5 in) high, at 131,000 kg (288,200 lb). The building needs crane height above that for assembly.
04
Rapid traverse is 20 / 20 / 10 m/min (787 / 787 / 394 ipm) in X, Y and Z, and the cutting feed range is 1~10,000 mm/min (0.04~394 ipm). Rotary axis speeds are not stated on the maker's page.
