Jingdiao JDGR200T
Image: en.jingdiao.com, Jingdiao
Key Specifications
Max Spindle
Spindle Taper
Table Size
Accuracy
Repeatability
x axis travel
How much does the Jingdiao JDGR200T cost?
Price estimate
We do not have a price for the Jingdiao JDGR200T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

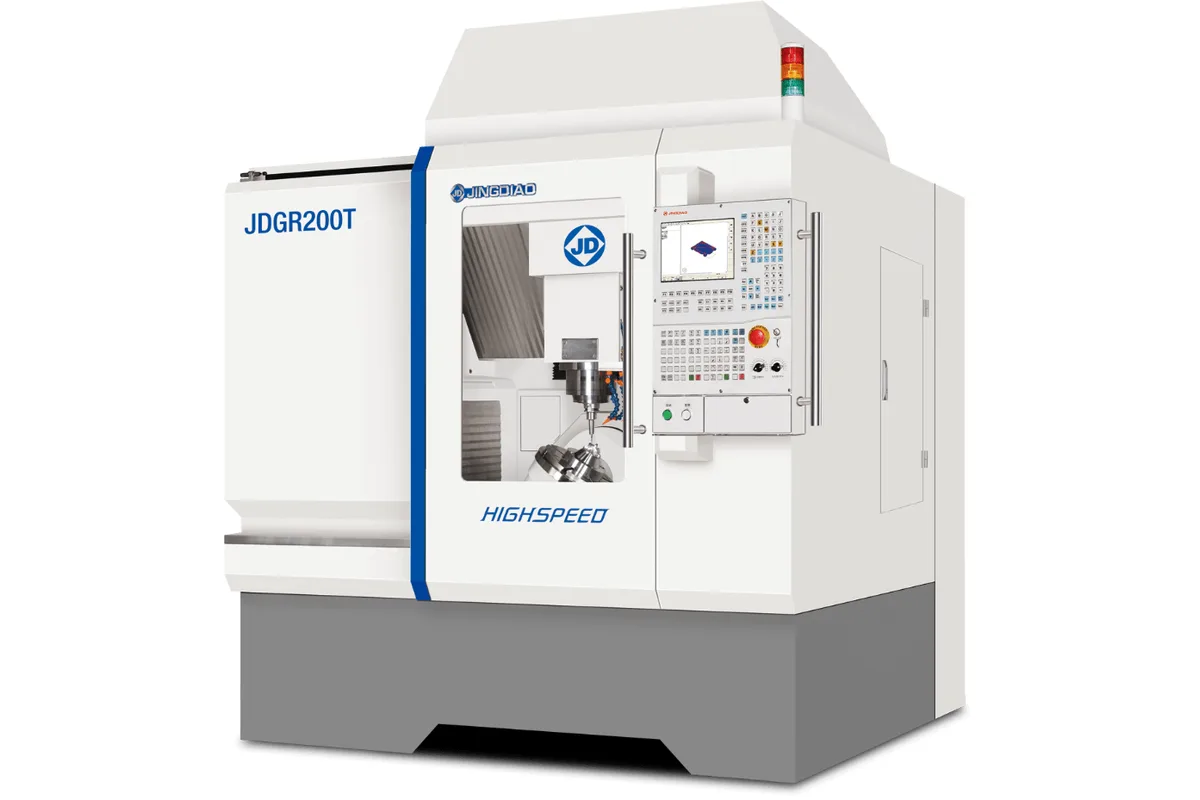

The Jingdiao JDGR200T is a compact 5-axis high-speed machining center with a B/C table and an unusually long list of spindles: four of them, from a 32,000 rpm HSK-E32 unit for precision machining to a 20,000 rpm HSK-A50 spindle with coolant through it. Travels are 500 mm (19.7 in) in X, 280 mm (11.0 in) in Y and 300 mm (11.8 in) in Z over a table of Ø260 mm (10.2 in) rated for 50 kg (110 lb).
The proportions say what it is for. X is nearly twice Y, and the tilt axis is B. Jingdiao lists the work as precision mold parts in the electronics, medical and optical trades: milling, grinding, polishing and small hole drilling in metals and non-metals. Its example parts are bone plates, spinal implants and lamp molds, which are small, complex and finished all over.
Between the two extremes of the spindle list sits a 24,000 rpm BT30 spindle, and a plain 20,000 rpm HSK-A50 version without through coolant. Whichever is chosen, the configuration table shows a chain magazine with 37 tools, and the maker also mentions a 63-tool chain magazine. A shop therefore specifies this machine by its tooling first, since the taper decides whether the JDGR200T behaves as a micro-milling machine with MQL or as a small general 5-axis mill.
B tilts from -120° to 90° and C rotates 360°, at up to 30 / 50 rpm (B/C). Linear positioning accuracy is 0.002 / 0.002 / 0.002 mm (X/Y/Z) and rotary accuracy 8 / 8 sec (B/C). Jingdiao also says the JDGR200T can be upgraded to an automation unit with automatic loading and unloading for night shifts. The data sheet does not give one clear machine weight for this model, so ask for it with the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 280 mm (11.0 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| B Axis Range | -120° to 90° |
| C Axis Range | 360° |
| Table Size | Ø260 mm (10.2 in) |
| Max Table Load | 50 kg (110 lb) |
| Spindle Type | JD135E-32-HE32/F (spindle for precision machining), JD135S-24-BT30/FA, JD150S-20-HA50/C or JD150SC-20-HA50/A (coolant through spindle) |
| Max Spindle Speed | 32,000 rpm (HSK-E32), 24,000 rpm (BT30) or 20,000 rpm (HSK-A50) |
| Spindle Taper | HSK-E32, BT30 or HSK-A50 |
| Tool Magazine | Chain Type (37 Tools) |
| Positioning Accuracy | 0.002 / 0.002 / 0.002 mm (X/Y/Z) |
| Positioning Accuracy Rotary | 8 / 8 sec (B/C) |
| Repeatability | 0.0018 / 0.0018 / 0.0018 mm (X/Y/Z) |
| Repeatability Rotary | 5 / 5 sec (B/C) |
| Rapid Traverse Xyz | 15 m/min (591 ipm) |
| Rapid Traverse Rotary | 30 / 50 rpm (B/C) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Cutting Feed Rate Rotary | 15 / 25 rpm (B/C) |
| Drive System | AC servo |
| CNC Control | JD50 Control System |
| Power Requirement | 3-Phase, 380V/50Hz, or Customized |
| Air Pressure | ≥0.52 MPa |
Specifications sourced from en.jingdiao.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Four spindles to choose from: 32,000 rpm HSK-E32, 24,000 rpm BT30, and 20,000 rpm HSK-A50 with or without coolant through the spindle
- X travel of 500 mm (19.7 in), longer than the 450 mm (17.7 in) of the larger JDGR400T
- Chain magazine with 37 tools on every configuration, with a 63-tool magazine also mentioned by the maker
- Positioning accuracy of 0.002 / 0.002 / 0.002 mm (X/Y/Z) and 8 / 8 sec (B/C)
- Can be upgraded to an automation unit for automatic loading and unloading
Limitations
- Table load is 50 kg (110 lb) on a Ø260 mm (10.2 in) table
- Y travel is only 280 mm (11.0 in)
- Rotary rapids of 30 / 50 rpm (B/C) are modest for simultaneous 5-axis work on small parts
- The maker publishes no single machine weight for this model, and its data sheet disagrees with the product page on travel and load, so confirm the figures on the quotation
Best For
Frequently Asked Questions
01
X travel is 500 mm (19.7 in), Y is 280 mm (11.0 in) and Z is 300 mm (11.8 in). The B axis tilts from -120° to 90° and the C axis rotates 360°. The worktable is Ø260 mm (10.2 in) and carries 50 kg (110 lb).
02
Four are listed: a spindle for precision machining at 32,000 rpm on HSK-E32, a high-speed precision spindle at 24,000 rpm on BT30, a high-speed precision spindle at 20,000 rpm on HSK-A50, and a coolant through spindle at 20,000 rpm on HSK-A50.
03
Each of the four listed configurations has a chain type magazine with 37 tools. In its highlights Jingdiao says chain type magazines with capacities of 37 and 63 are available, so the larger magazine is worth asking about for jobs with many tool types.
04
Jingdiao says it can be upgraded to an automation unit for automatic loading and unloading, to meet continuous processing needs on the night shift. An external scraper chip conveyor is offered to lengthen the chip-cleaning interval in batch production, and an internal spray system works with the screw chip conveyor inside the machine.
05
Both tilt on B, but the JDGR200T is the larger machine: a Ø260 mm (10.2 in) table for 50 kg (110 lb) against Ø160 mm (6.3 in) and 15 kg (33 lb) on the JDGR100, and 500 mm (19.7 in) of X against 400 mm (15.7 in). Only the JDGR200T lists HSK-A50 spindles.
