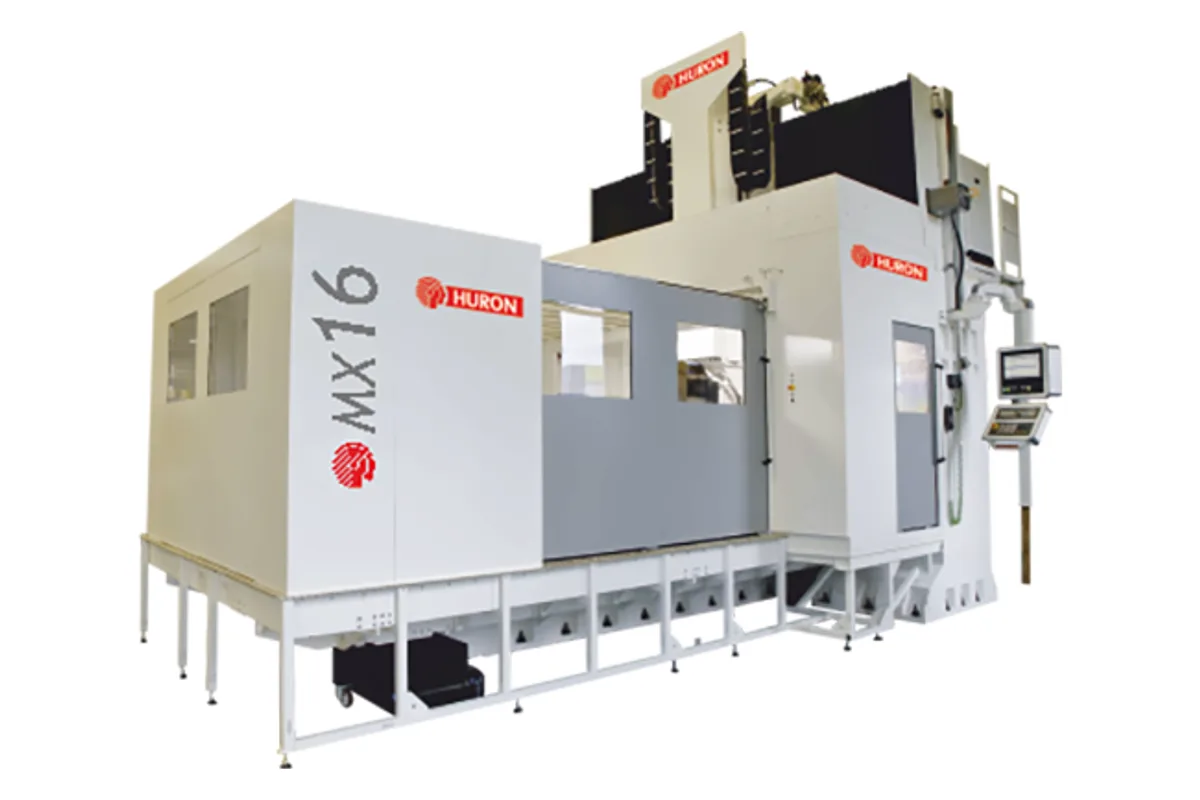

Huron MX 16 M
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron MX 16 M cost?
Price estimate
We do not have a price for the Huron MX 16 M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron MX 16 M is a large five-axis milling centre: 2,300 x 2,300 x 1,250 mm (90.6 x 90.6 x 49.2 in) of travel and a 1,750 mm table that takes 10,000 kg (22,046 lb). From this size up, Huron fits the HSK 100-A spindle to the milling version as well as the mill-turn one.
So the M and MT are closer here than lower in the range. Both have 43 kW, 415 Nm and 10,000 rpm, and both take tools up to 30 kg and 650 mm long. They differ at the table. The MX 16 M carries twice the load of the MX 16 MT and its C axis turns at 9 rpm, a speed for indexing and slow contouring of very heavy parts.
The universal head tilts from -45° to +180° at 100 rpm. On a machine with 1,250 mm of Z and 2,300 mm of Y, that head reaches around a large casting or weldment to machine five sides, including deep side features with long tools.
Rapid feedrate is 40 m/min, unusual for axes of this length. Positioning is stated at 0.007 mm and repeatability at 0.004 mm on X, Y and Z. The installation without APC is 8,370 mm wide, 10,000 mm deep and 6,650 mm high. Sixty tools are carried, with a 120 mm diameter limit.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,300 mm (90.6 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Rapid Traverse Xyz | 40 m/min |
| Head Type | Universal head |
| A Axis Range | -45° / +180° |
| A Axis Speed | 100 rpm |
| Table Type | Milling |
| Table Size | Ø 1,750 mm (Ø 68.9 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| C Axis Speed | 9 rpm |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | HSK 100-A |
| Spindle Motor Power | 43 kW (57.7 hp) |
| Spindle Torque | 415 Nm (306.1 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 120 mm (4.7 in) |
| Max Tool Weight | 30 kg (66 lb) |
| Max Tool Length | 650 mm (25.6 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec |
| Machine Width | 8,370 mm (329.5 in) without APC; 8,411 mm (331.1 in) with APC |
| Machine Depth | 10,000 mm (393.7 in) without APC; 10,020 mm (394.5 in) with APC |
| Machine Height | 6,650 mm (261.8 in) without APC; 6,631 mm (261.1 in) with APC |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,000 kg (22,046 lb) table load
- 2,300 x 2,300 mm X and Y with 1,250 mm of Z
- HSK 100-A spindle with 43 kW and 415 Nm on the milling version
- 40 m/min rapids on a machine of this size
- Tools up to 30 kg and 650 mm long
Limitations
- C axis turns at 9 rpm, for indexing and slow contouring
- Maximum tool diameter is 120 mm
- Height of 6,650 mm without APC
- 10,000 rpm top spindle speed
Best For
Frequently Asked Questions
01
2,300 mm in X, 2,300 mm in Y and 1,250 mm in Z. The table is 1,750 mm in diameter and carries 10,000 kg (22,046 lb).
02
At the table. The MX 16 M has a 1,750 mm milling table for 10,000 kg at 9 rpm. The MX 16 MT has a 1,650 mm milling/turning table for 5,000 kg at 250 rpm. Travels, spindle and tool changer are the same.
03
HSK 100-A with a 10,000 rpm maximum, 43 kW and 415 Nm. The characteristic speed is 1,000 rpm. Smaller MX milling versions such as the MX 12 M use HSK 63-A at 14,000 rpm instead.
04
Without APC it measures 8,370 mm wide, 10,000 mm deep and 6,650 mm high. With APC Huron lists 8,411 mm, 10,020 mm and 6,631 mm.
