Litz HU-1000

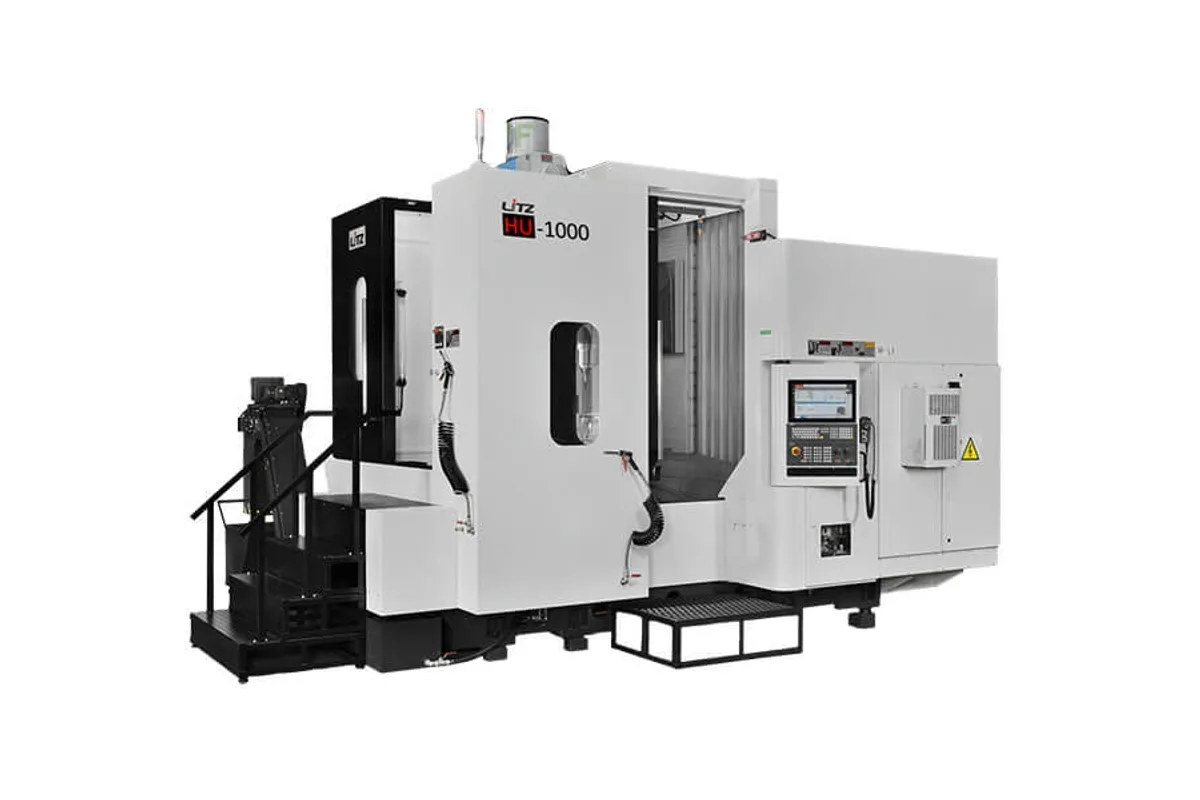

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Max Workpiece ⌀
x axis travel
How much does the Litz HU-1000 cost?
Price estimate
We do not have a price for the Litz HU-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz HU-1000 is a five-axis machining center built on a horizontal layout: a B-axis swing head that tilts the spindle from -0° to +180° works over a C-axis rotary table 1,000 mm (39.4 in) in diameter. Linear travels are 1,000 mm (39.4 in) in X, 880 mm (34.6 in) in Y and 710 mm (28.0 in) in Z.
Because the head swings through the vertical and on to the opposite horizontal, the same spindle can work as a vertical, as a horizontal, or at any angle between. The table lists separate clearances for each attitude: 110 to 820 mm (4.3 to 32.3 in) from spindle nose to table in the vertical position and 56 to 766 mm (2.2 to 30.2 in) from spindle centre to table in the horizontal one.
The spindle is a built-in motor unit at 18,000 rpm with 154 Nm (114 lb-ft) of torque and an HSK63A interface. BT-40, CAT-40 and DIN-40 are offered as alternatives. The B-axis head is driven by a torque motor, the C-axis table by a worm gear, and both index in 0.001° steps.
Accuracy equipment is standard, not optional: linear scales on the three linear axes and on B and C, plus hollow cooling of the X, Y and Z screws. The table carries 1,500 kg (3,307 lb) and parts up to 1,500 mm (59.1 in) high. A 40-tool magazine, chain-type chip conveyor and Siemens ONE control complete the base machine; FANUC 31i-B5 and HEIDENHAIN TNC7 are options. Weight is 18,000 kg (39,683 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 880 mm (34.6 in) |
| Z Axis Travel | 710 mm (28.0 in) |
| B Axis Range | -0° to +180° |
| Spindle Nose to Table Vertical | 110 to 820 mm (4.3 to 32.3 in) |
| Spindle Center to Table Horizontal | 56 to 766 mm (2.2 to 30.2 in) |
| Spindle Nose to Table Center Horizontal | -146 to 734 mm (-5.7 to 28.9 in) |
| Table Size | 1,000 mm (39.4 in) diameter |
| Max Workpiece Diameter | 1,000 mm (39.4 in) diameter |
| Max Workpiece Height | 1,500 mm (59.1 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| T-Slot Width | 18 mm (0.7 in) |
| Table Indexing | 0.001° |
| Table Height From Floor | 1,175 mm (46.3 in) |
| Max Spindle Speed | 18,000 rpm |
| Spindle Torque | 154 Nm (114 lb-ft) |
| Spindle Taper | ISO40 |
| Spindle Bearing Inner Diameter | 65 mm (2.6 in) |
| Spindle Transmission | built-in motor |
| Rapid Traverse Xyz | 36,000 mm/min (1,417 ipm) |
| Cutting Feed Rate | 1-20,000 mm/min (up to 787 ipm) |
| Manual Feed Rate | 1,260 mm/min (50 ipm) |
| Tool Shank | HSK63A |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | 70 mm (2.8 in); 125 mm (4.9 in) without adjacent tool |
| Max Tool Length | 340 mm (13.4 in) |
| Max Tool Weight | 7 kg (15 lb) |
| CNC Control | Siemens ONE |
| Power Requirement | 42 kVA |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| Coolant Tank Capacity | 620 L |
| Machine Height | 3,825 mm (150.6 in) |
| Floor Area | 5,737 x 4,200 mm (225.9 x 165.4 in) |
| Machine Weight | 18,000 kg (39,683 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- B-axis swing head from -0° to +180° over a C-axis rotary table
- 18,000 rpm built-in spindle with 154 Nm (114 lb-ft) and HSK63A
- Linear scales standard on X, Y, Z, B and C
- 1,500 kg (3,307 lb) table load and workpieces up to 1,500 mm (59.1 in) high
- Choice of Siemens ONE, FANUC 31i-B5 or HEIDENHAIN TNC7
Limitations
- 40 tools with a 7 kg (15 lb) limit per tool
- Coolant through the spindle is an option, at 30 bar or 70 bar
- C-axis table is worm gear driven, where the B-axis head has a torque motor
- 18,000 kg (39,683 lb) on a 5,737 x 4,200 mm footprint
Best For
Frequently Asked Questions
01
Litz calls it a 5 axes efficiency horizontal machining center. The spindle sits in a B-axis rotary milling head that swings from -0° to +180°, and the workpiece sits on a C-axis rotary table of 1,000 mm (39.4 in) diameter.
02
A built-in motor spindle at 18,000 rpm with a maximum torque of 154 Nm (114 lb-ft). The standard interface is HSK63A, and BT-40, CAT-40 or DIN-40 can be ordered. A spindle cooling system is standard.
03
The table takes workpieces up to 1,000 mm (39.4 in) in diameter and 1,500 mm (59.1 in) high, with a load of 1,500 kg (3,307 lb). Travels are 1,000 x 880 x 710 mm.
04
Yes. The standard list includes a 3-axis linear scale, a B-axis linear scale and a C-axis linear scale, together with hollow cooling of the X, Y and Z guide rods. Both rotary axes have 0.001 degree division.
