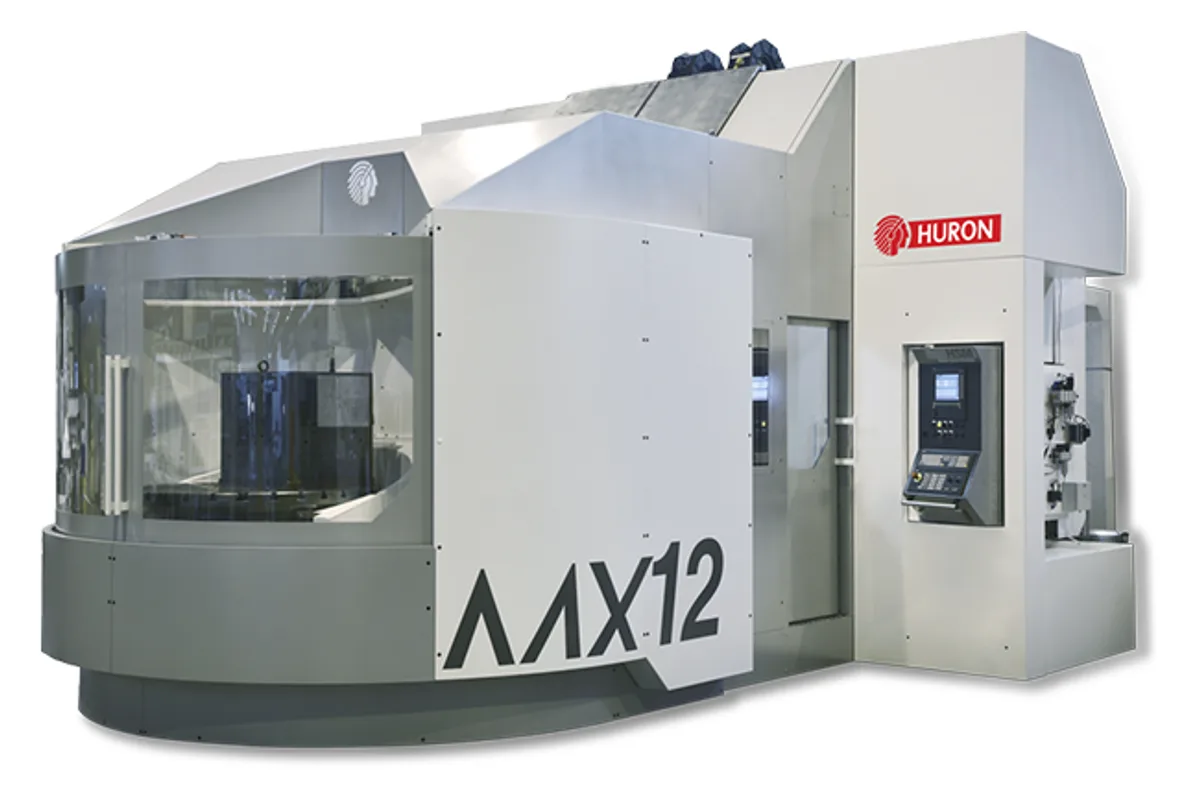

Huron MX 12 MT
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron MX 12 MT cost?
Price estimate
We do not have a price for the Huron MX 12 MT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a 1,400 mm table that turns at 250 rpm, the Huron MX 12 MT brings mill-turn capability to parts well over a metre in diameter. It shares the 1,200 x 1,600 x 1,000 mm (47.2 x 63.0 x 39.4 in) travels of the MX 12 M and carries 3,000 kg (6,614 lb).
Table speed halves compared with the MX 10 MT, which runs at 500 rpm. That follows from diameter: surface speed at the rim of a 1,400 mm part is already high at 250 rpm. What matters for the buyer is whether small-diameter features near the centre can still be turned at a sensible cutting speed.
The spindle is the HSK 100-A unit with 43 kW and 415 Nm at up to 10,000 rpm, and tools may weigh 25 kg, measure 250 mm across and reach 650 mm in length. That tool envelope fits the parts: large face mills for casting skins, long bars for deep bores, and rigid holders for turning.
Head kinematics are the MX standard. A tilts from -45° to +180° at 100 rpm on a 45° plane, with an integrated torque motor and vibration monitoring. Stated accuracy is 0.007 mm on X, Y and Z and 10 sec on A and C. The magazine has 60 housings. Overall size is the same as the M version, up to 7,210 x 10,755 mm with the APC option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Rapid Traverse Xyz | 40 m/min |
| Head Type | Universal head |
| A Axis Range | -45° / +180° |
| A Axis Speed | 100 rpm |
| Table Type | Mill/Turn |
| Table Size | Ø 1,400 mm (Ø 55.1 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| C Axis Speed | 250 rpm |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | HSK 100-A |
| Spindle Motor Power | 43 kW (57.7 hp) |
| Spindle Torque | 415 Nm (306.1 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 250 mm (9.8 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Max Tool Length | 650 mm (25.6 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec |
| Machine Width | 6,988 mm (275.1 in) without APC; 7,210 mm (283.9 in) with APC (option) |
| Machine Depth | 8,880 mm (349.6 in) without APC; 10,755 mm (423.4 in) with APC (option) |
| Machine Height | 4,125 mm (162.4 in) without APC; 4,125 mm (162.4 in) with APC (option) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,400 mm mill/turn table at up to 250 rpm
- 3,000 kg (6,614 lb) table load in a turning-capable machine
- 415 Nm HSK 100-A spindle with 43 kW
- Tools up to 650 mm long, 250 mm in diameter and 25 kg
- 1,600 mm of Y travel to cover the full table
Limitations
- Table speed is 250 rpm, half that of the MX 10 MT
- Carries 3,000 kg, less than the 4,000 kg of the MX 12 M
- Spindle limited to 10,000 rpm
- No turning-diameter or swing figure is published
Best For
Frequently Asked Questions
01
A mill/turn table of 1,400 mm diameter with a 3,000 kg (6,614 lb) admissible load and a rotating speed of 250 rpm.
02
The MX 16 MT is much larger: 2,300 x 2,300 x 1,250 mm travels, a 1,650 mm table and a 5,000 kg load. Its table also turns at 250 rpm and it uses the same 43 kW, 415 Nm spindle. The MX 12 MT has 1,200 x 1,600 x 1,000 mm travels and a 1,400 mm table.
03
HSK 100-A tooling. The 60-housing changer accepts tools up to 250 mm in diameter, 650 mm long and 25 kg (55 lb).
04
X is 1,200 mm, Y is 1,600 mm and Z is 1,000 mm, at 40 m/min. The head's A axis tilts from -45° to +180° at 100 rpm.
