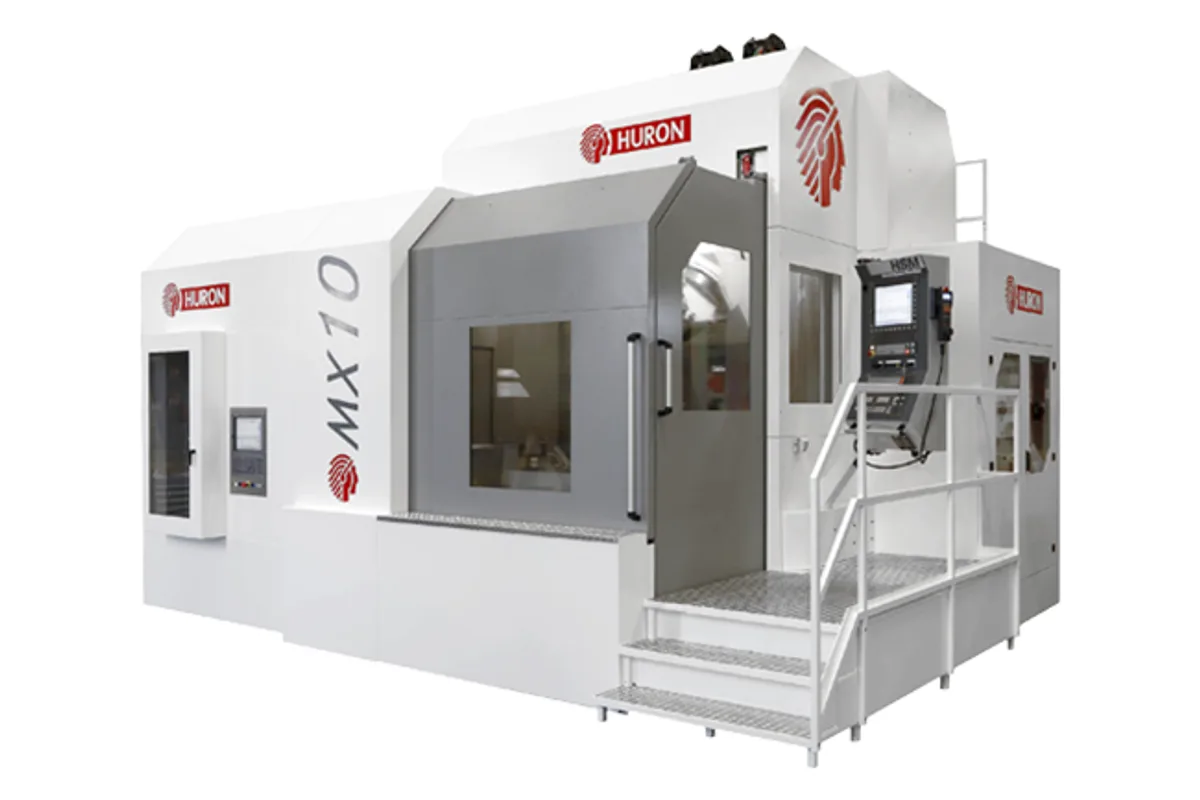

Huron MX 10 M

Q: How much does the Huron MX 10 M cost?

The price estimate for the Huron MX 10 M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/huron-mx-10-m#price; the request is passed to Huron or an authorised dealer.

Specs verified 2026-10-04 · huron.fr Updated 2026-10-04

Image: huron.fr, Huron

Key Specifications

Max Spindle

14,000 rpm

Spindle Taper

HSK 63-A

Tool Capacity

Table Size

Ø 1,250 x 900 mm (Ø 49.2 x 35.4 in)

Spindle Power

29 kW (38.9 hp)

Accuracy

X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec

How much does the Huron MX 10 M cost?

Price estimate

Uncertain

We do not have a price for the Huron MX 10 M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Huron MX 10 M is a five-axis universal-head milling centre with a square working plan: 1,200 mm (47.2 in) in both X and Y, and 1,000 mm in Z. The table is listed as Ø 1,250 x 900 mm and carries 2,000 kg (4,409 lb).

Square travels suit a rotary table. Whatever angle the C axis is at, the head can reach the same distance from centre, which simplifies planning for parts machined on several faces. The table turns at 65 rpm, the fastest C axis among the milling-only MX versions.

The spindle is the MX milling unit, HSK 63-A at 14,000 rpm with 29 kW and 277 Nm. Its characteristic speed is 1,000 rpm. Huron says of the range that it machines hard materials in minimal time, and the torque figure is the basis for that claim. The head tilts from -45° to +180° at 100 rpm with an integrated torque motor.

Pay attention to the installation figures. Without APC the machine is 6,950 mm wide and 8,750 mm deep. With the optional pallet changer the width becomes 10,250 mm while the depth is 8,050 mm, so the APC appears to sit beside the machine and not in front of it. Height is 4,200 mm, or 4,385 mm with APC. The changer holds 60 tools.

Full Specifications

Parameter	Value
X Axis Travel	1,200 mm (47.2 in)
Y Axis Travel	1,200 mm (47.2 in)
Z Axis Travel	1,000 mm (39.4 in)
Rapid Traverse Xyz	40 m/min
Head Type	Universal head
A Axis Range	-45° / +180°
A Axis Speed	100 rpm
Table Type	Milling
Table Size	Ø 1,250 x 900 mm (Ø 49.2 x 35.4 in)
Max Table Load	2,000 kg (4,409 lb)
C Axis Speed	65 rpm
Max Spindle Speed	14,000 rpm
Spindle Taper	HSK 63-A
Spindle Motor Power	29 kW (38.9 hp)
Spindle Torque	277 Nm (204.3 lb-ft)
Spindle Characteristic Speed	1,000 rpm
Tool Capacity	60
Max Tool Diameter (full magazine)	120 mm (4.7 in)
Max Tool Weight	8 kg (18 lb)
Max Tool Length	400 mm (15.7 in)
Positioning Accuracy	X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec
Repeatability	X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec
Machine Width	6,950 mm (273.6 in) without APC; 10,250 mm (403.5 in) with APC (option)
Machine Depth	8,750 mm (344.5 in) without APC; 8,050 mm (316.9 in) with APC (option)
Machine Height	4,200 mm (165.4 in) without APC; 4,385 mm (172.6 in) with APC (option)

Specifications sourced from huron.fr — verified 2026-10-04

Strengths & Limitations

Strengths

Square 1,200 x 1,200 mm X and Y travels with 1,000 mm of Z
C axis at 65 rpm, the fastest of the milling-only MX tables
277 Nm at the spindle for hard-material milling
Table rated for 2,000 kg (4,409 lb)
60 tools up to 400 mm long

Limitations

Width rises to 10,250 mm with the optional APC
Tool weight limit of 8 kg
Table load is no higher than on the smaller MX 8 M
29 kW spindle power, against 43 kW on the MX 10 MT

Best For

Prismatic parts machined on five sides Aerospace structural parts in titanium and steel Mould and die components up to 2,000 kg Pallet-automated five-axis production

Frequently Asked Questions

01 What are the travels of the Huron MX 10 M?

X and Y are both 1,200 mm and Z is 1,000 mm. Rapid feedrate is 40 m/min. The table is listed as Ø 1,250 x 900 mm with a 2,000 kg (4,409 lb) admissible load.

02 How does the MX 10 M differ from the MX 10 MT?

The MX 10 MT has a 1,000 mm mill/turn table that spins at 500 rpm and an HSK 100-A spindle with 43 kW and 415 Nm. The MX 10 M has the milling table at 65 rpm and the HSK 63-A spindle with 29 kW and 277 Nm at up to 14,000 rpm.

03 Does the MX 10 M have a pallet changer?

An APC is listed as an option. Huron gives overall measurements for the machine without APC, 6,950 x 8,750 mm, and with it, 10,250 x 8,050 mm. The feature list also names complete automation of the machine.

04 What accuracy does Huron state?

Positioning of 0.007 mm on X, Y and Z and 10 sec on A and C. Repeatability of 0.004 mm on the linear axes and 5 sec on the rotary axes.
