Huron KXG 45-14

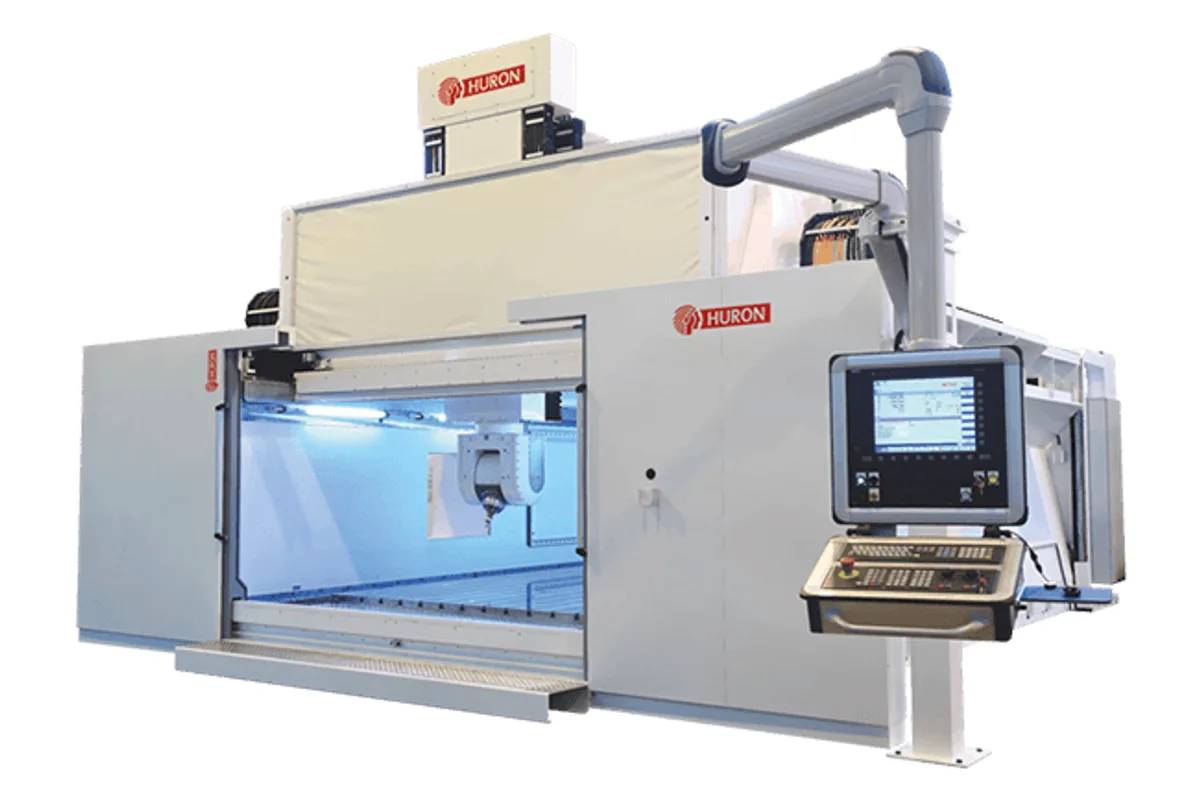

Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron KXG 45-14 cost?
Price estimate
We do not have a price for the Huron KXG 45-14 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Narrow and long, the Huron KXG 45-14 is the gantry for parts like wing ribs, spars and rail-vehicle profiles. It travels 4,500 mm (177.2 in) in X but only 1,400 mm in Y, over a fixed table of 4,700 x 1,390 mm that holds 18,000 kg (39,683 lb).
A slim gantry has less crossrail to move, and this is the lightest KXG at 60,000 kg (132,276 lb). The linear rapids are the series standard, 60 m/min on X and Y and 45 m/min on Z. Z travel is 800 mm.
The five-axis head is a forked design with B swivelling +/- 105° and C rotating +/- 200° at 100 rpm. The spindle it carries is built for speed: 75 kW, 75 Nm, 20,000 rpm, with a characteristic speed of 9,550 rpm on an HSK 63-A taper. Long aluminium parts cut from plate at high feed are the natural work, and Huron describes the series as designed for continuous five-axis machining of very large parts.
Stated positioning is 0.025 mm on X and 0.010 mm on Y and Z. The magazine holds 40 tools outside the work area. Huron also lists a tilting, inclined operator panel and a retractable roof. The machine occupies 9,082 x 9,700 mm and is 4,978 mm high.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,500 mm (177.2 in) |
| Y Axis Travel | 1,400 mm (55.1 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse Xyz | X / Y: 60 m/min; Z: 45 m/min |
| Head Type | Forked head |
| B Axis Range | +/- 105° |
| C Axis Range | +/- 200° |
| Head Axes Speed | B, C: 100 rpm |
| Head Axes Torque Motor Clamping | B, C: 4,000 Nm (2,950.4 lb-ft) |
| Table Structure | Fixed table |
| Table Size | 4,700 x 1,390 mm (185.0 x 54.7 in) |
| Max Table Load | 18,000 kg (39,683 lb) |
| Max Spindle Speed | 20,000 rpm |
| Spindle Taper | HSK 63-A |
| Spindle Motor Power | 75 kW (100.6 hp) |
| Spindle Torque | 75 Nm (55.3 lb-ft) |
| Spindle Characteristic Speed | 9,550 rpm |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | 90 mm (3.5 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Max Tool Length | 300 mm (11.8 in) |
| Positioning Accuracy | X: 0.025 mm (0.0010 in); Y / Z: 0.010 mm (0.0004 in); B, C: 10 sec |
| Repeatability | X / Y / Z: 0.005 mm (0.0002 in); B, C: 5 sec |
| Machine Width | 9,082 mm (357.6 in) |
| Machine Depth | 9,700 mm (381.9 in) |
| Machine Height | 4,978 mm (196.0 in) |
| Machine Weight | 60,000 kg (132,275 lb) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,500 mm of X travel in the lightest KXG, at 60,000 kg
- 18,000 kg (39,683 lb) fixed-table load
- 60 m/min on X and Y for high-feed cutting of long parts
- 20,000 rpm, 75 kW spindle
- Tool magazine located outside the work area
Limitations
- Y travel is 1,400 mm; the KXG 45-23 offers 2,300 mm on the same X
- Z travel is 800 mm, against 1,250 mm on the KXG 30-15
- 75 Nm of spindle torque, a light-alloy rating
- Tools limited to 90 mm diameter and 8 kg
Best For
Frequently Asked Questions
01
4,500 mm in X, 1,400 mm in Y and 800 mm in Z. The fixed table is 4,700 x 1,390 mm (185.0 x 54.7 in) with an admissible load of 18,000 kg.
02
Width. The KXG 45-23 has 2,300 mm of Y travel and a 4,700 x 2,480 mm table rated for 21,000 kg, and it weighs 80,000 kg. The KXG 45-14 has 1,400 mm of Y, a 1,390 mm wide table, and weighs 60,000 kg. X, Z, head and spindle are the same.
03
An HSK 63-A spindle with 75 kW, 75 Nm and a 20,000 rpm maximum. The characteristic speed is 9,550 rpm. The same spindle is listed for every KXG model.
04
The forked head swivels B through +/- 105° and rotates C through +/- 200°. Both axes turn at 100 rpm, and Huron quotes 4,000 Nm for motor and clamping torque.
