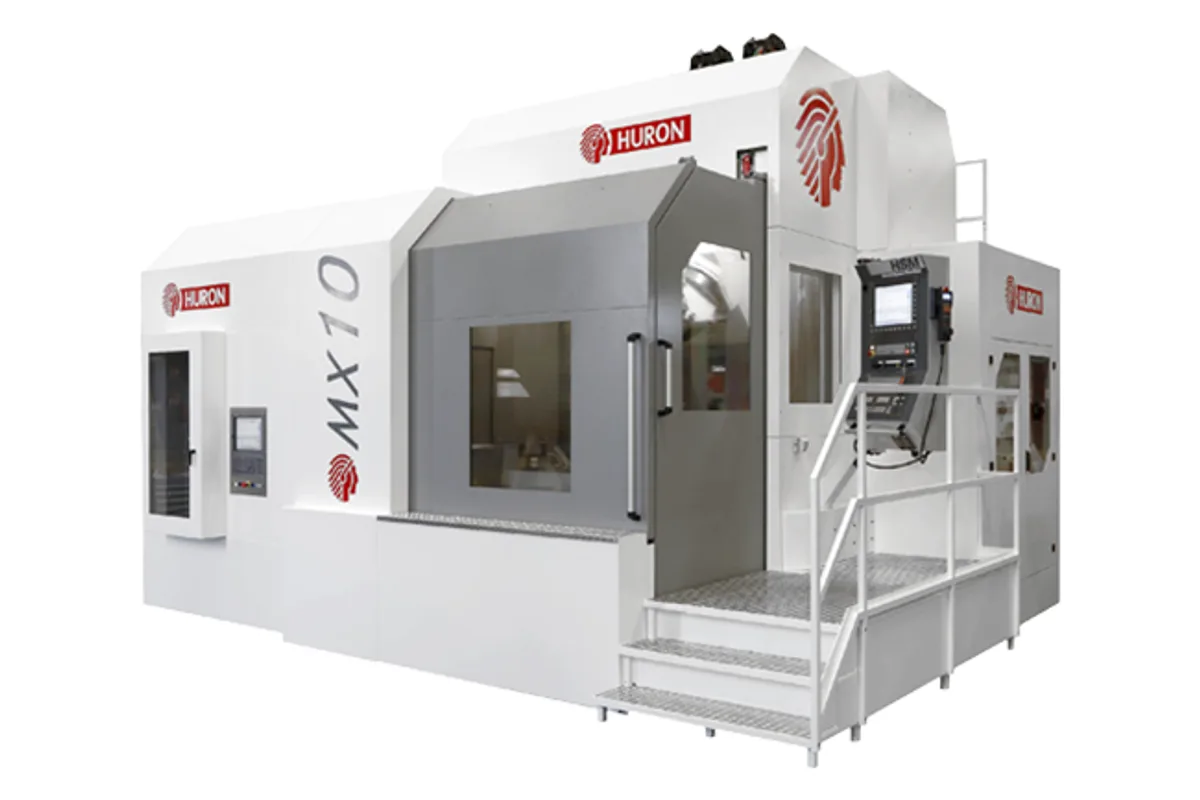

Huron MX 10 MT
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron MX 10 MT cost?
Price estimate
We do not have a price for the Huron MX 10 MT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron MX 10 MT combines a 1,000 mm turning table with a tilting universal milling head. The table reaches 500 rpm, and the HSK 100-A spindle delivers 43 kW and 415 Nm, so one machine covers lathe work on discs and rings up to a metre across plus full five-axis milling.
Travels are 1,200 x 1,200 x 1,000 mm (47.2 x 47.2 x 39.4 in). The extra Z over the MX 8 MT, 1,000 mm against 900 mm, gives clearance for taller turned parts under the head. Table load is 2,000 kg (4,409 lb).
Because the head tilts from -45° to +180°, a static turning tool can cut an outside diameter with the head horizontal, then a face or bore with it vertical. After that the table stops spinning and becomes a C axis for milling. Features turned and milled this way share one datum, which is the whole point of a mill-turn centre.
The tool changer has 60 housings and takes tools up to 250 mm in diameter, 650 mm long and 25 kg. That 650 mm length allows long boring bars. Spindle speed is limited to 10,000 rpm. Accuracy is stated as 0.007 mm on X, Y and Z. With the optional APC the machine is 10,250 mm wide.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Rapid Traverse Xyz | 40 m/min |
| Head Type | Universal head |
| A Axis Range | -45° / +180° |
| A Axis Speed | 100 rpm |
| Table Type | Mill/Turn |
| Table Size | Ø 1,000 mm (Ø 39.4 in) |
| Max Table Load | 2,000 kg (4,409 lb) |
| C Axis Speed | 500 rpm |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | HSK 100-A |
| Spindle Motor Power | 43 kW (57.7 hp) |
| Spindle Torque | 415 Nm (306.1 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 250 mm (9.8 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Max Tool Length | 650 mm (25.6 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec |
| Machine Width | 6,950 mm (273.6 in) without APC; 10,250 mm (403.5 in) with APC (option) |
| Machine Depth | 8,750 mm (344.5 in) without APC; 8,050 mm (316.9 in) with APC (option) |
| Machine Height | 4,200 mm (165.4 in) without APC; 4,385 mm (172.6 in) with APC (option) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 mm mill/turn table at up to 500 rpm
- 43 kW, 415 Nm HSK 100-A spindle
- Tools up to 650 mm long and 25 kg
- 1,000 mm of Z travel under the universal head
- Turned and milled features share one clamping
Limitations
- 10,000 rpm maximum spindle speed
- Table load stays at 2,000 kg
- Maximum tool diameter of 250 mm applies only where the magazine allows free neighbours
- Large installation: 6,950 x 8,750 mm without APC
Best For
Frequently Asked Questions
01
The mill/turn table is 1,000 mm in diameter, rated for 2,000 kg (4,409 lb), and rotates at up to 500 rpm. Huron's table does not give a separate swing or turning-diameter figure.
02
HSK 100-A, 10,000 rpm maximum, 43 kW and 415 Nm, with a characteristic speed of 1,000 rpm. The same spindle is listed for the MT versions of the MX 8 and MX 12.
03
Up to 650 mm, with a maximum diameter of 250 mm and a maximum weight of 25 kg (55 lb). The MX 8 MT, by comparison, is limited to 500 mm of tool length.
04
1,200 mm in X, 1,200 mm in Y and 1,000 mm in Z, at a rapid feedrate of 40 m/min. The universal head adds an A axis from -45° to +180° at 100 rpm.
