Anderson MAXXIS Series

Specs verified 2026-10-05 · andersonamerica.com Updated 2026-10-05

Image: andersonamerica.com, Anderson

Key Specifications

Tool Capacity

ATC : 10, 12, 16, 20; Ranrob : 12, 16, 20, 32

table configuration

Table can stroke long direction or short direction

table style

HPL Grid or Alum 50mm with T Slots

table height

800 mm (31.5 in)

z axis travel

800 - 1200 mm (31.5 - 47.2 in)

z axis travel option

1200 mm (47.2 in)

How much does the Anderson MAXXIS Series cost?

Price estimate

Uncertain

We do not have a price for the Anderson MAXXIS Series that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

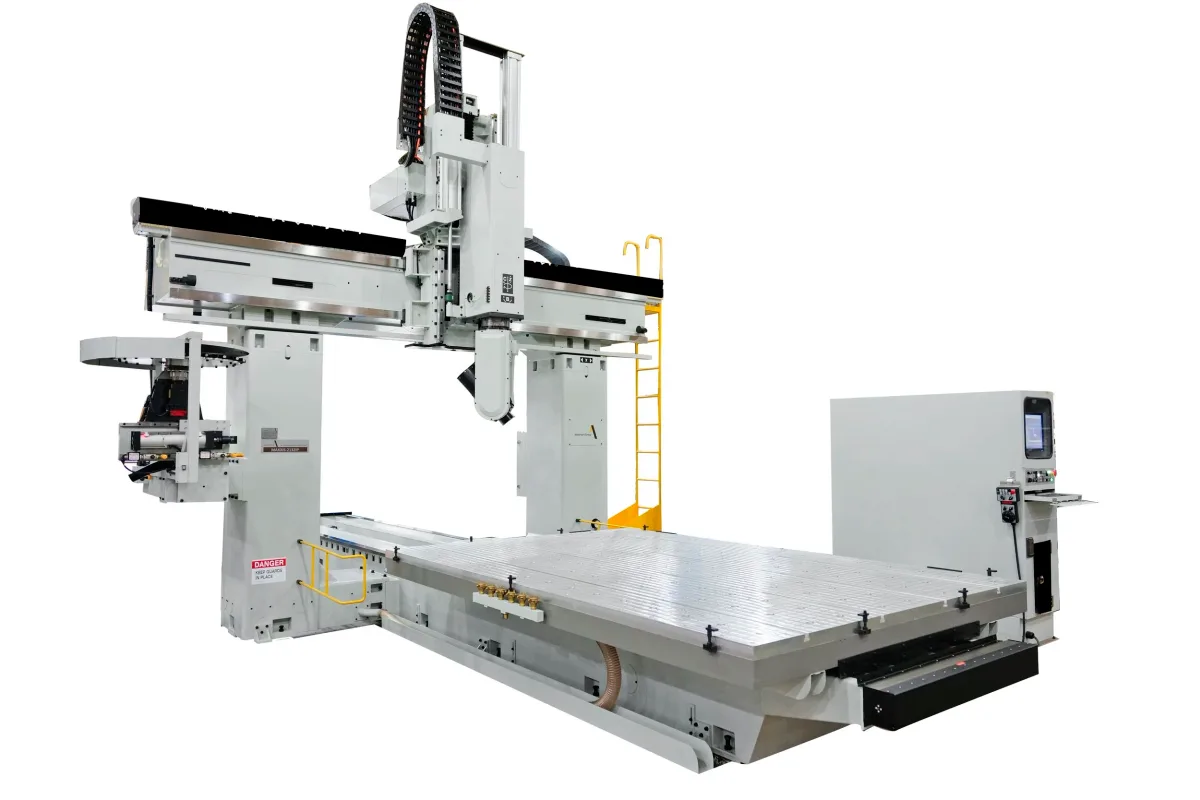

The Anderson MAXXIS Series is a fixed bridge, moving table 5-axis machine for plastics, aluminum and composite materials. Anderson's page shows two configurations under one name, and this page carries only the rows that are the same for both: a table 800 mm (31.5 in) high, a Z stroke of 800 - 1200 mm (31.5 - 47.2 in), ball screw drives on X, Y and Z, and a choice of FANUC 31i or SIEMENS 840D control.

Ball screws on every linear axis set the MAXXIS apart from Anderson's larger Mass 5, which uses rack drives in X and Y. Screws suit a compact machine with moderate travels, and the fixed bridge keeps the moving mass in the table. Anderson describes a webbed steel substructure that stays rigid during full 5-axis machining, and a precision gearbox in the head.

Z is the generous axis. A stroke of 800 - 1200 mm is listed as standard, with 1200 mm (47.2 in) as the second option, enough for deep-drawn thermoformed parts, moulds and trim fixtures that stand well off the table. The table surface is either an HPL grid for vacuum work or 50mm aluminum with T slots for bolted fixtures, and it can be arranged to stroke in the long or the short direction. A vacuum prep kit is included.

Spindles are 12 HP, 18 HP or 24 HP on HSK 63F at 22000 rpm, or a 25 HP Vector unit on HSK 63E at 18000 rpm. Table size, rotary axis ranges and the number of zones differ between the two configurations and are not repeated here. Anderson lists single and dual zone layouts and workpiece probing as additional options.

Full Specifications

Parameter	Value
Table Configuration	Table can stroke long direction or short direction
Table Style	HPL Grid or Alum 50mm with T Slots
Table Height	800 mm (31.5 in)
Z Axis Travel	800 - 1200 mm (31.5 - 47.2 in)
Z Axis Travel Option	1200 mm (47.2 in)
CNC Control	FANUC 31i or SIEMENS 840D
Router Spindle	12 HP, 18 HP, 24 HP (HSK 63F, 22000 rpm); 25 HP Vector (HSK 63E, 18000 rpm)
Tool Capacity	ATC : 10, 12, 16, 20; Ranrob : 12, 16, 20, 32
Barriers	optional
Vacuum Prep Kit	Included
Vacuum Pump	10, 25, 40, 50 HP (options)
Safety Fence	optional
X Drive System	Ball Screw
Y Drive System	Ball Screw
Z Drive System	Ball Screw
Remote Internet Diagnostics	yes
Tool Holders	Included

Specifications sourced from andersonamerica.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ball screw drives on X, Y and Z
Z stroke of 800 - 1200 mm (31.5 - 47.2 in) for tall parts and fixtures
Table offered as HPL grid or 50mm aluminum with T slots
FANUC 31i or SIEMENS 840D control
Vacuum prep kit and tool holders are included

Limitations

Anderson's table shows two configurations under one name, so table size and rotary ranges must be confirmed for the machine quoted
No weight, footprint or accuracy figures are published
Barriers and the safety fence are optional
Rapid rates are printed with a unit that cannot be read reliably

Best For

5-axis trimming of thermoformed plastics and composites Aluminum parts held on a T slot table Tall workpieces that need up to 1200 mm (47.2 in) of Z Shops that want a compact fixed bridge machine

Frequently Asked Questions

01 What kind of machine is the MAXXIS Series?

A 5-axis machining center with a fixed bridge and a moving table. Anderson says the design offers easy machine access in a compact layout and names plastics, aluminum and composite materials as the intended work. All three linear axes are driven by ball screws.

02 How much Z travel does the MAXXIS Series have?

The standard Z stroke is listed as 800 - 1200 mm (31.5 - 47.2 in), and a second row lists 1200 mm (47.2 in). The table height is 800 mm (31.5 in). Which stroke applies depends on the configuration ordered.

03 Which spindles and tool changers are offered on the MAXXIS Series?

Router spindles of 12 HP, 18 HP and 24 HP on HSK 63F at 22000 rpm, and a 25 HP Vector spindle on HSK 63E at 18000 rpm. The automatic tool changer row reads ATC : 10, 12, 16, 20 and Ranrob : 12, 16, 20, 32. Tool holders are included.

04 What table options does the MAXXIS Series have?

The table style is HPL Grid or Alum 50mm with T Slots, and the table can stroke in the long or the short direction. A vacuum prep kit is included and vacuum pumps of 10, 25, 40 or 50 HP are listed as options. Anderson also lists single and dual zone capabilities.
