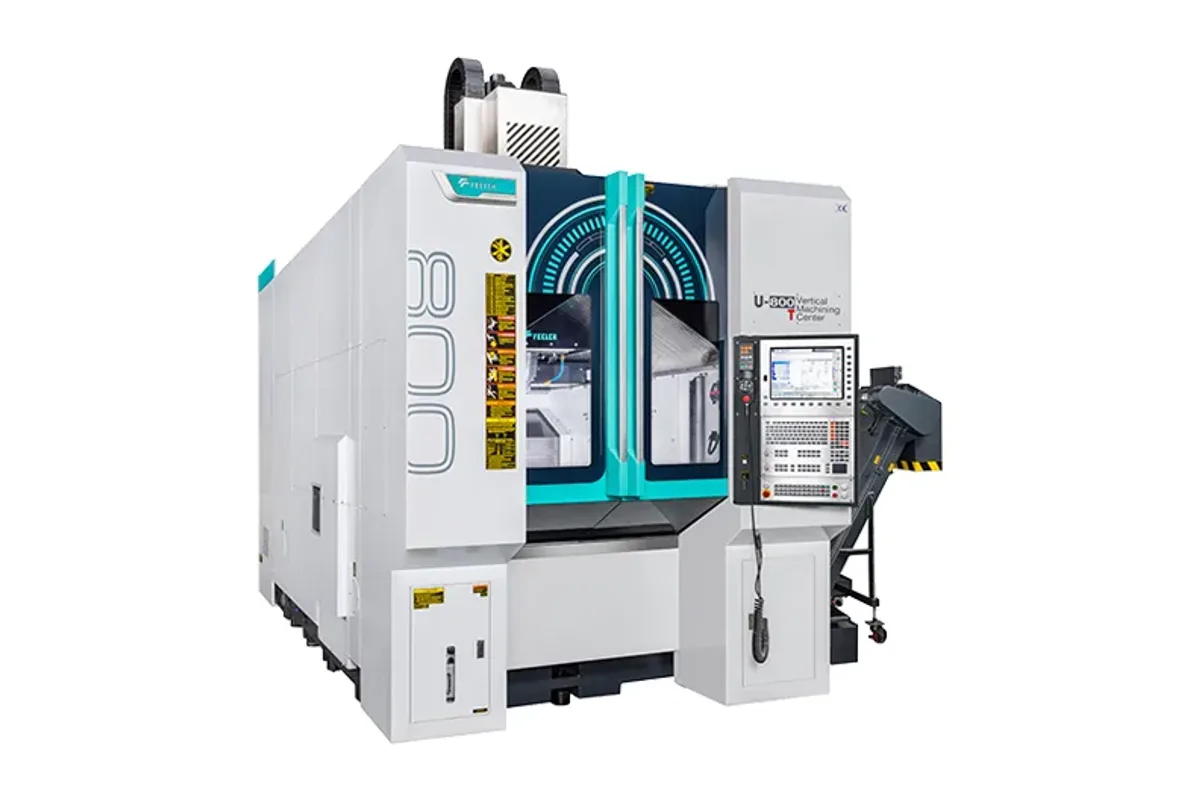

Feeler U-800(T)
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
How much does the Feeler U-800(T) cost?
Price estimate
We do not have a price for the Feeler U-800(T) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Feeler U-800(T) is a gantry-type 5-axis machining center with a cradle-style φ800 mm table, the largest trunnion machine in the U series. The T in brackets marks a turning-capable variant: the taper row reads 7/24 Taper No.40(HSK63T) and the load row 1,200 (1,000) kg, with the bracketed values belonging to it.
Linear travels are 800 mm (31.5 in) in X and 640 mm (25.2 in) in Z. Y is printed as 935+315 mm, a main stroke plus an extension that is commonly used to bring the spindle to a tool-change or loading position; the page does not say which. The cradle tilts +120~-120° and the C axis rotates 0~360°.
Feeler states that the U-800T features a gantry structure providing ample working space and high rigidity. In a gantry layout the cross-rail is carried on both sides, so the spindle is supported evenly across the full table width, which suits an 800 mm table better than a single overhanging column would.
On spindle speed the maker's page disagrees with itself. The table lists 12,000 rpm (DDS); the text speaks of a 15,000 rpm direct-drive spindle. Treat the table value as the base figure and ask Feeler whether 15,000 rpm is an option. Rapid traverse is 48 m/min (1,890 ipm) on X, Y and Z. Tool capacity is given as 32-120, a wide range that covers long unattended runs. Industries named for the series are automotive, aerospace, medical and precision mold.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | φ800 mm (φ31.5 in) |
| Max Table Load | 1,200 (1,000) kg (2,646 (2,205) lb) |
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 935+315 mm (36.8+12.4 in) |
| Z Axis Travel | 640 mm (25.2 in) |
| A B Axis Range | +120~-120° |
| C Axis Range | 0~360° |
| Max Spindle Speed | 12,000 rpm (DDS) |
| Spindle Taper | 7/24 Taper No.40(HSK63T) |
| Rapid Traverse X | 48 m/min (1,890 ipm) |
| Rapid Traverse Y | 48 m/min (1,890 ipm) |
| Rapid Traverse Z | 48 m/min (1,890 ipm) |
| Tool Capacity | 32-120 |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Cradle-style φ800 mm table in a gantry structure
- Tilt range of +120~-120° with 0~360° C axis
- 48 m/min (1,890 ipm) rapids on all three linear axes
- Tool capacity from 32 up to 120
- HSK63T interface listed for the turning-capable T variant
Limitations
- Table load is 1,200 (1,000) kg; the lower figure appears to apply to the T variant
- Feeler's table lists 12,000 rpm while its text mentions 15,000 rpm
- The meaning of the 935+315 mm Y travel is not explained on the page
- No rotary axis speed, table turning speed or spindle power is published
Best For
Frequently Asked Questions
01
Feeler prints one column headed U-800(T). Bracketed values are 1,000 kg of table load, against 1,200 kg, and an HSK63T taper, against 7/24 Taper No.40. HSK-T is a turning-tool interface, so the T model appears to be the mill-turn variant.
02
X is 800 mm (31.5 in), Y is printed as 935+315 mm and Z is 640 mm (25.2 in). The tilt axis range is +120~-120° and the C axis 0~360°.
03
The spec table lists 12,000 rpm (DDS). The series text says the U-800T has a 15,000 rpm direct-drive spindle. The page does not reconcile the two, so confirm with Feeler which is standard.
04
The table gives 32-120, which indicates a base magazine of 32 tools and larger options up to 120. Which sizes are standard is not stated.
