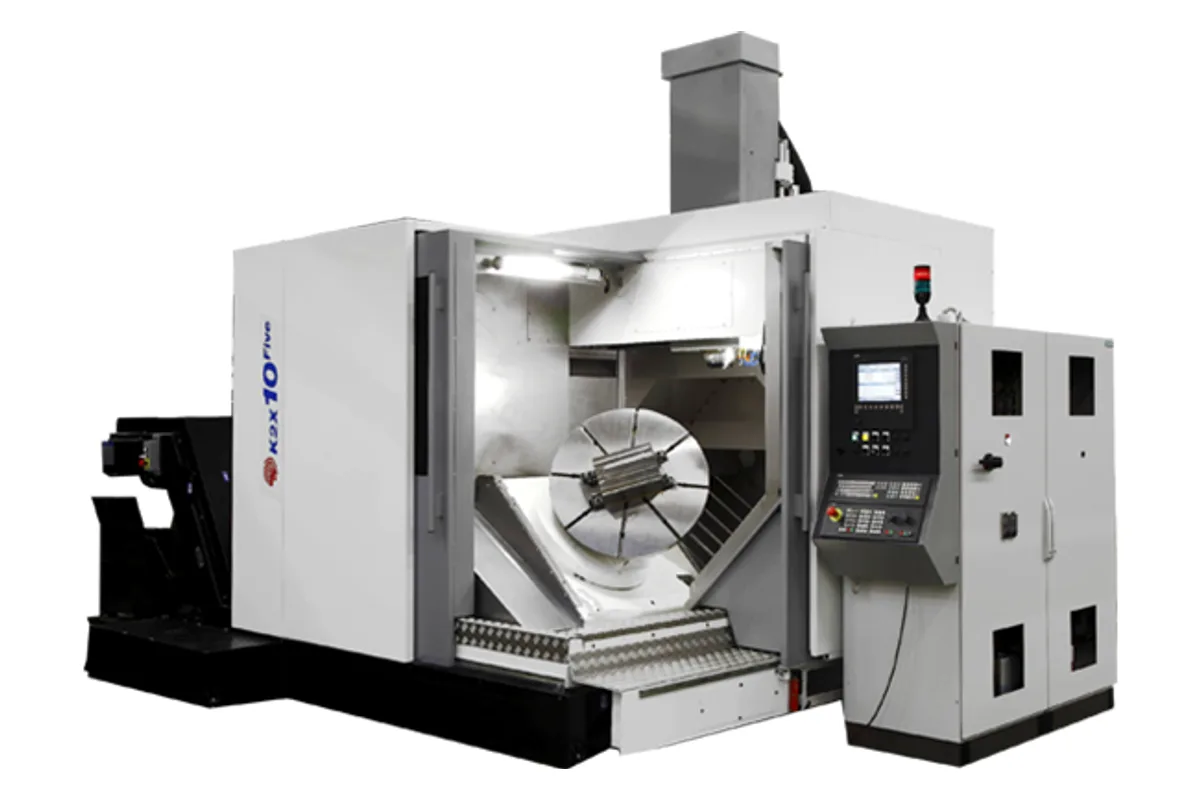

Huron K2X 10 Five
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron K2X 10 Five cost?
Price estimate
We do not have a price for the Huron K2X 10 Five that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron K2X 10 Five puts a 630 mm two-axis table under the K2X high-speed portal, giving continuous five-axis machining on parts up to 750 kg (1,653 lb). Travels are 900 x 900 x 500 mm (35.4 x 35.4 x 19.7 in) with rapids of 50 m/min.
The table rotates on a 45° plane. Its A axis tilts from +45° to -180° at 50 rpm, and C turns 360° at 60 rpm. Huron lists 700 mm from spindle face to table top, which is generous for a machine of this size and allows tall parts or deep fixtures.
Seven hundred and fifty kilograms is a substantial load for a tilting table of 630 mm. It moves the machine out of the small-parts class and into mould cores, aerospace structural fittings and tooling that needs five-sided or simultaneous work. The spindle supports that range: HSK 63-A, 18,000 rpm, 30 kW and 110 Nm, with a characteristic speed of 3,400 rpm.
Huron's accuracy statement is 0.004 mm positioning and 0.002 mm repeatability on the linear axes, with 7.2 sec and 3.6 sec on A and C. The series is described as combining dynamics and precision with strong vibration damping. A 36-tool changer takes tools up to 300 mm long and 10 kg. The installation is 6,273 mm wide, 4,269 mm deep and 3,950 mm high.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 900 mm (35.4 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Rapid Traverse Xyz | X / Y / Z: 50 m/min |
| A Axis Range | +45° / - 180° |
| C Axis Range | 360° |
| Table Axes Speed | A: 50 rpm; C: 60 rpm |
| Table Structure | Rotating table on a 45° plane |
| Table Size | Ø 630 mm (Ø 24.8 in) |
| Max Table Load | 750 kg (1,653 lb) |
| Distance Spindle Nose to Table | 700 mm (27.6 in) |
| Max Spindle Speed | 18,000 rpm |
| Spindle Taper | HSK 63-A |
| Spindle Motor Power | 30 kW (40.2 hp) |
| Spindle Torque | 110 Nm (81.1 lb-ft) |
| Spindle Characteristic Speed | 3,400 rpm |
| Tool Capacity | 36 |
| Max Tool Diameter (full magazine) | 90 mm (3.5 in) |
| Max Tool Weight | 10 kg (22 lb) |
| Max Tool Length | 300 mm (11.8 in) |
| Positioning Accuracy | X / Y / Z: 0.004 mm (0.0002 in); A, C: 7.2 sec |
| Repeatability | X / Y / Z: 0.002 mm (0.0001 in); A, C: 3.6 sec |
| Machine Width | 6,273 mm (247.0 in) |
| Machine Depth | 4,269 mm (168.1 in) |
| Machine Height | 3,950 mm (155.5 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 750 kg (1,653 lb) on a 630 mm two-axis table
- 700 mm between spindle face and table top
- A axis tilts from +45° to -180°; C rotates 360° at 60 rpm
- 0.004 mm positioning and 0.002 mm repeatability on X, Y and Z
- Square 900 x 900 mm X and Y travels
Limitations
- Z travel is 500 mm, short beside the 700 mm available under the spindle face
- Spindle torque is 110 Nm, which limits roughing in tough alloys
- Needs 6,273 x 4,269 mm of floor and 3,950 mm of height
- A-axis speed is 50 rpm, slower than the 60 rpm of the C axis
Best For
Frequently Asked Questions
01
The admissible table load is 750 kg (1,653 lb). The table is 630 mm in diameter and rotates on a 45° plane, with A from +45° to -180° and C through 360°.
02
900 mm in X, 900 mm in Y and 500 mm in Z, all at 50 m/min. The distance from spindle face to table top is 700 mm.
03
They share the spindle and the 36-tool changer. The K2X 10 is a three-axis machine with 1,000 x 800 x 500 mm travels, a fixed 1,150 x 800 mm table and 60 m/min rapids. The K2X 10 Five adds the two-axis table and has 900 x 900 x 500 mm travels.
04
Positioning of 7.2 sec and repeatability of 3.6 sec on the A and C axes. The linear axes are listed at 0.004 mm and 0.002 mm.
