Huron KXG 45-23

Q: How much does the Huron KXG 45-23 cost?

The price estimate for the Huron KXG 45-23 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/huron-kxg-45-23#price; the request is passed to Huron or an authorised dealer.

Specs verified 2026-10-04 · huron.fr Updated 2026-10-04

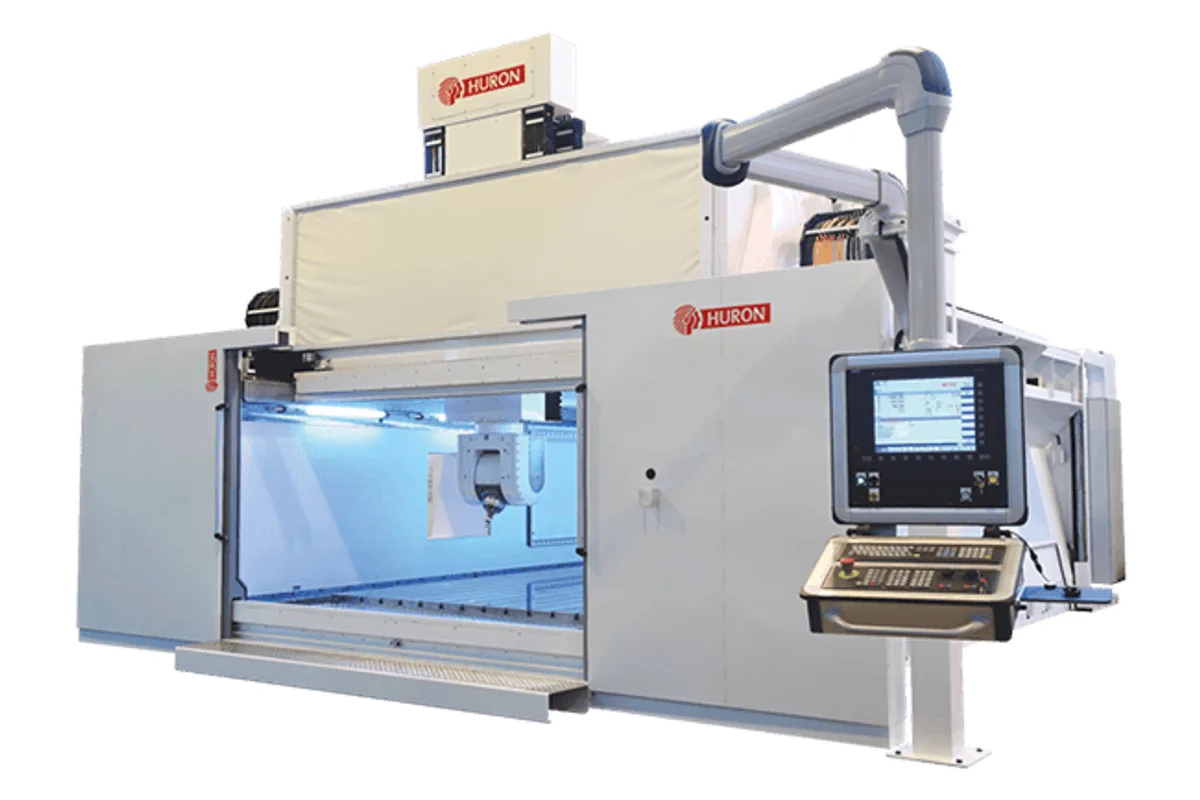

Huron KXG series 5-axis gantry milling centre

Image: huron.fr, Huron

Key Specifications

Max Spindle

20,000 rpm

Spindle Taper

HSK 63-A

Tool Capacity

Table Size

4,700 x 2,480 mm (185.0 x 97.6 in)

Spindle Power

75 kW (100.6 hp)

Accuracy

X: 0.025 mm (0.0010 in); Y / Z: 0.010 mm (0.0004 in); B, C: 10 sec

How much does the Huron KXG 45-23 cost?

Price estimate

Uncertain

We do not have a price for the Huron KXG 45-23 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Huron KXG 45-23 is the mid-size gantry of the KXG range and the first with the wide 2,300 mm Y axis. Travels are 4,500 x 2,300 x 800 mm (177.2 x 90.6 x 31.5 in). The fixed table is 4,700 x 2,480 mm and carries 21,000 kg (46,297 lb).

That table is wider than the Y stroke, so the full width is there for clamping while the head covers 2,300 mm of it. Panels, skins and large mould halves that would not sit on the 1,390 mm table of the KXG 45-14 fit here with room for fixturing.

The crossrail is Huron's reinforced U-type, with the moving axes optimized by finite element calculation. Despite the wider span the rapids hold at 60 m/min on X and Y and 45 m/min on Z, and the machine weighs 80,000 kg (176,368 lb).

For cutting, the KXG 45-23 uses the same package as its siblings: forked head with B at +/- 105° and C at +/- 200°, 100 rpm on both, and an HSK 63-A spindle of 75 kW, 75 Nm and 20,000 rpm. Positioning is given as 0.025 mm on X, 0.010 mm on Y and Z, and 10 sec on the head axes. Repeatability is 0.005 mm. The footprint is 9,053 x 10,007 mm.

Full Specifications

Parameter	Value
X Axis Travel	4,500 mm (177.2 in)
Y Axis Travel	2,300 mm (90.6 in)
Z Axis Travel	800 mm (31.5 in)
Rapid Traverse Xyz	X / Y: 60 m/min; Z: 45 m/min
Head Type	Forked head
B Axis Range	+/- 105°
C Axis Range	+/- 200°
Head Axes Speed	B, C: 100 rpm
Head Axes Torque Motor Clamping	B, C: 4,000 Nm (2,950.4 lb-ft)
Table Structure	Fixed table
Table Size	4,700 x 2,480 mm (185.0 x 97.6 in)
Max Table Load	21,000 kg (46,296 lb)
Max Spindle Speed	20,000 rpm
Spindle Taper	HSK 63-A
Spindle Motor Power	75 kW (100.6 hp)
Spindle Torque	75 Nm (55.3 lb-ft)
Spindle Characteristic Speed	9,550 rpm
Tool Capacity	40
Max Tool Diameter (full magazine)	90 mm (3.5 in)
Max Tool Weight	8 kg (18 lb)
Max Tool Length	300 mm (11.8 in)
Positioning Accuracy	X: 0.025 mm (0.0010 in); Y / Z: 0.010 mm (0.0004 in); B, C: 10 sec
Repeatability	X / Y / Z: 0.005 mm (0.0002 in); B, C: 5 sec
Machine Width	9,053 mm (356.4 in)
Machine Depth	10,007 mm (394.0 in)
Machine Height	4,976 mm (195.9 in)
Machine Weight	80,000 kg (176,367 lb)

Specifications sourced from huron.fr — verified 2026-10-04

Strengths & Limitations

Strengths

2,300 mm of Y travel over a 2,480 mm wide fixed table
21,000 kg (46,297 lb) table load
Holds 60 m/min on X and Y with the wider crossrail
Repeatability of 0.005 mm on all linear axes
Reinforced U-type crossrail, per Huron's feature list

Limitations

Z travel is 800 mm; only the KXG 30-15 offers 1,250 mm
Weighs 80,000 kg and needs a dedicated foundation
Low-torque spindle at 75 Nm
40 tools with a 300 mm length limit

Best For

Wide aluminium panels and skins Large mould halves and models Five-axis trimming and machining of composite parts Nested production of structural parts across a wide table

Frequently Asked Questions

01 What size table does the Huron KXG 45-23 have?

A fixed table of 4,700 x 2,480 mm (185.0 x 97.6 in), rated for 21,000 kg (46,297 lb). Travels are 4,500 mm in X, 2,300 mm in Y and 800 mm in Z.

02 Which KXG is longer with the same width?

The KXG 60-23 has 6,000 mm of X on a 6,200 x 2,480 mm table rated for 25,000 kg, and the KXG 90-23 has 9,000 mm. Both keep the 2,300 mm Y and 800 mm Z of the KXG 45-23.

03 How accurate is the KXG 45-23?

Positioning is stated as 0.025 mm on X and 0.010 mm on Y and Z, with 10 sec on B and C. Repeatability is 0.005 mm on X, Y and Z and 5 sec on B and C.

04 What are the site requirements?

The machine measures 9,053 mm wide, 10,007 mm deep and 4,976 mm high and weighs 80,000 kg (176,368 lb). Huron specifies a dedicated foundation. A retractable roof gives crane access to the table.
