Huron MX 12 M

Q: How much does the Huron MX 12 M cost?

The price estimate for the Huron MX 12 M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/huron-mx-12-m#price; the request is passed to Huron or an authorised dealer.

Specs verified 2026-10-04 · huron.fr Updated 2026-10-04

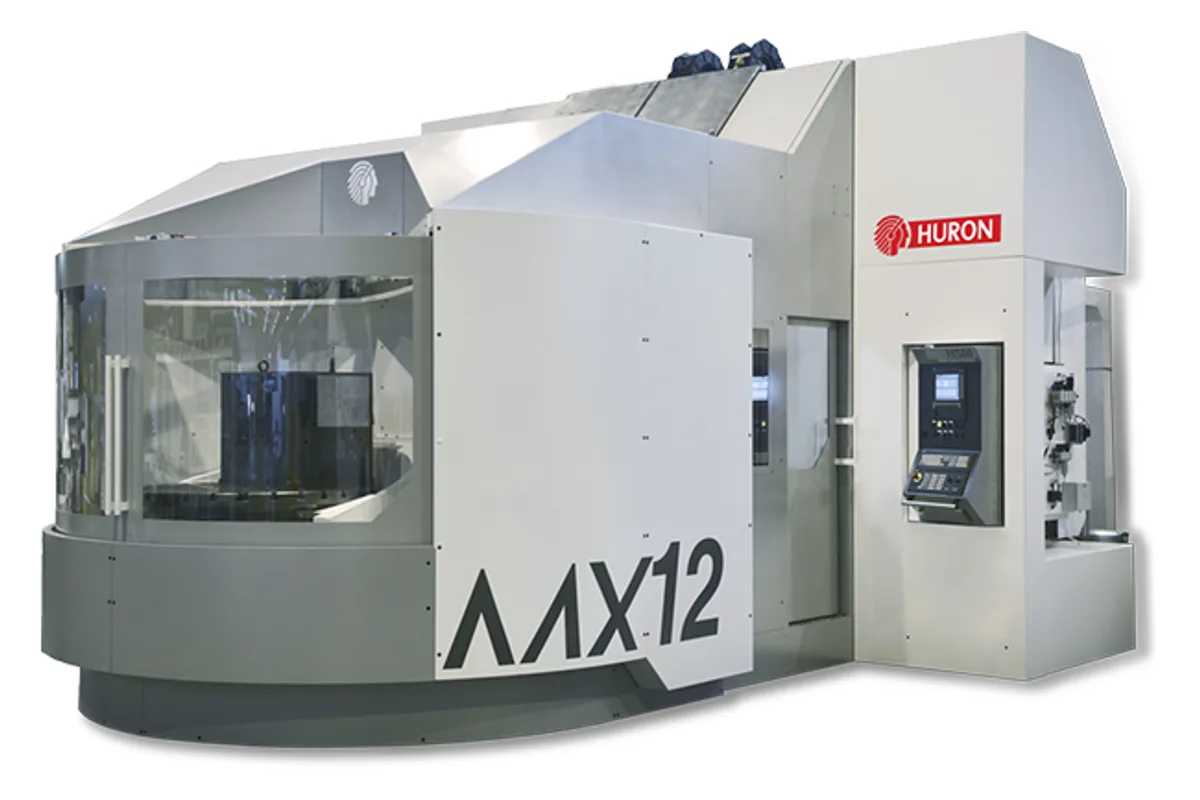

Image: huron.fr, Huron

Key Specifications

Max Spindle

14,000 rpm

Spindle Taper

HSK 63-A

Tool Capacity

Table Size

Ø 1,600 x 1,250 mm (Ø 63.0 x 49.2 in)

Spindle Power

29 kW (38.9 hp)

Accuracy

X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec

How much does the Huron MX 12 M cost?

Price estimate

Uncertain

We do not have a price for the Huron MX 12 M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Huron MX 12 M doubles the table load of the smaller MX milling centres to 4,000 kg (8,818 lb). Its travels are 1,200 x 1,600 x 1,000 mm (47.2 x 63.0 x 39.4 in), with the long axis being Y, and the table is listed as Ø 1,600 x 1,250 mm.

A Y stroke longer than X is the mark of this model. The table moves further towards and away from the column, so a large-diameter part can be brought under the head across its full width. For five-side work on gearbox housings, large moulds or structural fittings, that reach decides whether one clamping is enough.

Huron fits the HSK 63-A milling spindle: 14,000 rpm, 29 kW and 277 Nm with a characteristic speed of 1,000 rpm. The universal head has an integrated torque motor and tilts from -45° to +180°. The table rotates at 50 rpm as the C axis.

There is a mismatch to keep in mind. The table carries 4,000 kg, but tools are limited to 8 kg and 120 mm in diameter on this taper. Heavy roughing with big cutters is better served by the MX 12 MT and its HSK 100-A spindle. Without APC the MX 12 M is 6,988 mm wide and 8,880 mm deep. With the optional APC it is 7,210 mm by 10,755 mm. Height is 4,125 mm either way.

Full Specifications

Parameter	Value
X Axis Travel	1,200 mm (47.2 in)
Y Axis Travel	1,600 mm (63.0 in)
Z Axis Travel	1,000 mm (39.4 in)
Rapid Traverse Xyz	40 m/min
Head Type	Universal head
A Axis Range	-45° / +180°
A Axis Speed	100 rpm
Table Type	Milling
Table Size	Ø 1,600 x 1,250 mm (Ø 63.0 x 49.2 in)
Max Table Load	4,000 kg (8,818 lb)
C Axis Speed	50 rpm
Max Spindle Speed	14,000 rpm
Spindle Taper	HSK 63-A
Spindle Motor Power	29 kW (38.9 hp)
Spindle Torque	277 Nm (204.3 lb-ft)
Spindle Characteristic Speed	1,000 rpm
Tool Capacity	60
Max Tool Diameter (full magazine)	120 mm (4.7 in)
Max Tool Weight	8 kg (18 lb)
Max Tool Length	400 mm (15.7 in)
Positioning Accuracy	X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec
Repeatability	X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec
Machine Width	6,988 mm (275.1 in) without APC; 7,210 mm (283.9 in) with APC (option)
Machine Depth	8,880 mm (349.6 in) without APC; 10,755 mm (423.4 in) with APC (option)
Machine Height	4,125 mm (162.4 in) without APC; 4,125 mm (162.4 in) with APC (option)

Specifications sourced from huron.fr — verified 2026-10-04

Strengths & Limitations

Strengths

4,000 kg (8,818 lb) table load
1,600 mm of Y travel, longer than the X axis
Large table, listed as Ø 1,600 x 1,250 mm
14,000 rpm spindle with 277 Nm
Height of 4,125 mm unchanged by the APC option

Limitations

8 kg tool weight limit on a machine that carries 4,000 kg parts
X travel is 1,200 mm, shorter than Y
Depth reaches 10,755 mm with the optional APC
C axis at 50 rpm is for positioning and contouring only

Best For

Large housings and moulds up to 4,000 kg Five-side machining of parts up to 1,600 mm across Finishing and medium roughing in hard materials Pallet-fed five-axis production of large parts

Frequently Asked Questions

01 What are the travels of the Huron MX 12 M?

1,200 mm in X, 1,600 mm in Y and 1,000 mm in Z, with a rapid feedrate of 40 m/min. The table is listed as Ø 1,600 x 1,250 mm and takes 4,000 kg (8,818 lb).

02 Should I choose the MX 12 M or the MX 12 MT?

The MX 12 MT has a 1,400 mm mill/turn table at 250 rpm, a 3,000 kg load and the HSK 100-A spindle with 43 kW and 415 Nm. The MX 12 M carries 4,000 kg and has the faster 14,000 rpm HSK 63-A spindle. Pick the MT for turning or heavy cutters, the M for load and spindle speed.

03 What spindle is in the MX 12 M?

An HSK 63-A spindle with 29 kW, 277 Nm and a maximum of 14,000 rpm. Its characteristic speed is 1,000 rpm, and tools are limited to 8 kg.

04 What are the installation dimensions?

Without APC: 6,988 mm wide, 8,880 mm deep, 4,125 mm high. With the optional APC: 7,210 mm wide, 10,755 mm deep, 4,125 mm high. All are measured with doors opened and conveyor.
