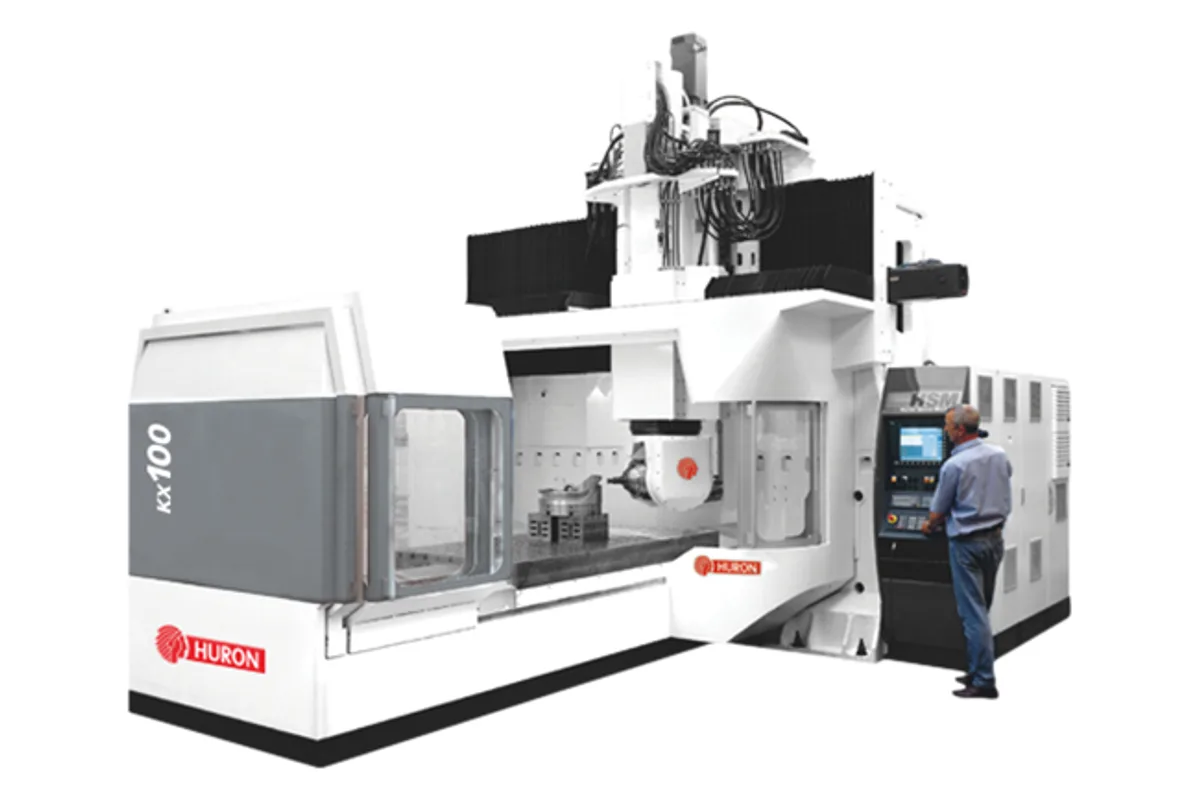

Huron KX 100
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron KX 100 cost?
Price estimate
We do not have a price for the Huron KX 100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron KX 100 is a double-column five-axis machining centre for heavy parts: a 12,000 kg (26,455 lb) table load, a square 2,300 x 2,300 mm X and Y stroke, and 1,000 mm of Z. Its forked head carries an 18,000 rpm HSK 63-A spindle with 240 Nm of torque.
This is a different machine from the KX 50 pair. Where those have a low-torque, high-power spindle, the KX 100 has 30 kW and 240 Nm with a characteristic speed of 1,200 rpm. Torque is available from low speed, which is what moulds, dies and steel structural parts need. Huron describes the series spindle as suited to both roughing and finishing and to high chip rates.
The head is built to match. B swivels +/- 105° and C rotates +/- 190°, at 30 rpm, with 7,000 Nm quoted for motor and clamping torque. Slower, stronger head axes hold position under heavy five-side cuts.
The fixed table is 2,500 x 1,250 mm. With 2,300 mm of Y over a 1,250 mm table, the head can reach well past the table edges to work the sides of a tall block. The changer has 40 housings and accepts tools up to 190 mm in diameter when neighbouring pockets are empty. Positioning is 0.007 mm on the linear axes. Footprint is 7,900 x 7,870 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,300 mm (90.6 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Rapid Traverse Xyz | X / Y / Z: 40 m/min |
| Head Type | Forked head |
| B Axis Range | +/- 105° |
| C Axis Range | +/- 190° |
| Head Axes Speed | B, C: 30 rpm |
| Head Axes Torque Motor Clamping | 7,000 Nm (5,163.2 lb-ft) |
| Table Structure | Fixed table |
| Table Size | 2,500 x 1,250 mm (98.4 x 49.2 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Max Spindle Speed | 18,000 rpm |
| Spindle Taper | HSK 63-A |
| Spindle Motor Power | 30 kW (40.2 hp) |
| Spindle Torque | 240 Nm (177.0 lb-ft) |
| Spindle Characteristic Speed | 1,200 rpm |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | 100 / 190 mm (3.9 / 7.5 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Max Tool Length | 300 mm (11.8 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); B, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); B, C: 5 sec |
| Machine Width | 7,900 mm (311.0 in) |
| Machine Depth | 7,870 mm (309.8 in) |
| Machine Height | 5,410 mm (213.0 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 12,000 kg (26,455 lb) table load
- 240 Nm of spindle torque with a characteristic speed of 1,200 rpm
- Head axes with 7,000 Nm of motor and clamping torque
- 2,300 mm of Y travel for five-side access around the workpiece
- 40 tool housings, with tools up to 190 mm in diameter
Limitations
- Head axes turn at 30 rpm, against 100 rpm on the KX 50 M
- C axis is limited to +/- 190°
- Spindle power is 30 kW, against 75 kW on the KX 50 M
- Tool weight is limited to 8 kg
Best For
Frequently Asked Questions
01
2,300 mm in X, 2,300 mm in Y and 1,000 mm in Z, at 40 m/min on all three. The fixed table is 2,500 x 1,250 mm and takes 12,000 kg (26,455 lb).
02
The KX 100 spindle gives 30 kW and 240 Nm at up to 18,000 rpm, with a characteristic speed of 1,200 rpm. The KX 50 M spindle gives 75 kW and 75 Nm at up to 20,000 rpm. One is a torque spindle for steel, the other a power spindle for light alloys.
03
A forked head with two rotary axes. B swivels +/- 105° and C rotates +/- 190°, both at 30 rpm. Huron gives 7,000 Nm for motor and clamping torque.
04
The KX 200, which has 3,300 mm of X travel and a 3,500 x 1,250 mm table, with the same Y, Z, head, spindle and 12,000 kg table load. The X rapid of the KX 200 is 25 m/min.
