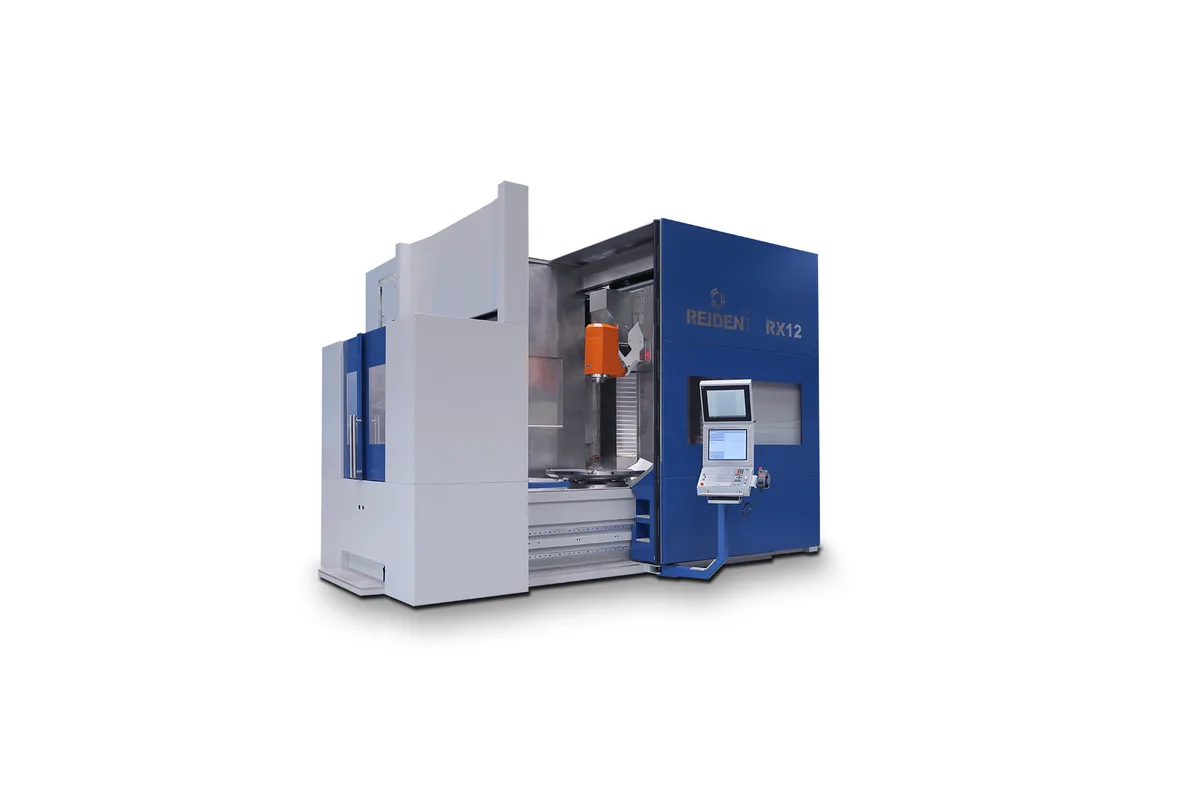

Reiden RX12
Image: reiden.com, Reiden
Key Specifications
Max Spindle
Spindle Taper
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Reiden RX12 cost?
Price estimate
We do not have a price for the Reiden RX12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Reiden RX12 is a 5-axis machining center with 1,300 mm (51.2 in) of X and 1,450 mm (57.1 in) of Y that can also turn. With the spindle clamped and the optional rotary table fitted, the workpiece itself becomes the turning axis: the table lists a Ø 1,200 mm (47.2 in) turning rotary table running at 400 rpm with a maximum torque of 4,570 Nm (3,371 lb-ft). Reiden's point is that the part no longer has to change machines between milling and turning. The model was launched in 2016.
Two motor spindles are listed. The HSK100 spindle is rated 84 kW (112.6 hp) and 0 - 12,000 rpm, with 300 / 452 Nm at 100 / 40 % ED. The HSK63 spindle is rated 45 kW (60.3 hp) and 0 - 20,000 rpm, the same power and speed as the single spindle of the RX10. The choice is between torque for steel and large cutters and speed for small tools, and the magazine follows the taper: 75 / 150 / 225 / 325 places for HSK63, or 65 / 103 / 147 / 191 / 272 for HSK100. Tool length is 600 mm (23.6 in) either way.
Some rows need a question to Reiden. Z travel is printed as 1,000 (1300) mm with no word on the bracketed figure, so plan on 1,000 mm until Reiden says what the 1,300 refers to. Maximum rotary diameter is given as 1,500 / 1,600 / 1,200 mm, again without naming the table or pallet arrangement each figure belongs to. The head swivels automatically between horizontal and vertical as standard (A axis 0+/-90°) and the table turns 360° in C.
Column and bed are made of HYDROPOL, which Reiden describes as a composite of special concrete and steel with excellent damping behavior and high dynamic rigidity. Pallets measure Ø 1,200 x 1,000 mm and carry 2,000 kg (4,409 lb), in changers for 2 or 5 pallets or with linear or circular storage. Machine weight is given as a range, 25,000 - 28,000 kg, and the machine stands 4,050 mm high. Control is a Heidenhain TNC7 or a Siemens Sinumerik One.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 1,450 mm (57.1 in) |
| Z Axis Travel | 1,000 (1,300) mm (39.4 (51.2) in) |
| A Axis Range | 0+/-90° |
| C Axis Range | 360° |
| Spindle Motor Power | 84 kW (112.6 hp) (HSK100 spindle) |
| Max Spindle Speed | 0 - 12,000 rpm (HSK100 motor spindle) |
| Spindle Torque | 300 / 452 Nm (221.3 / 333.4 lb-ft) (HSK100 spindle, 100 / 40 % ED) |
| Hsk63 Spindle Power | 45 kW (60.3 hp) |
| Hsk63 Spindle Speed | 0 - 20,000 rpm (motor spindle) |
| Spindle Taper | HSK63 / HSK100 |
| Milling Head | Automatic swiveling head horizontal / vertical: Standard |
| Max Rotary Diameter | 1,500 / 1,600 / 1,200 mm (59.1 / 63.0 / 47.2 in) |
| Turning Table Diameter | Ø 1,200 mm (Ø 47.2 in) |
| Turning Table Speed | 400 rpm |
| Turning Table Torque Max | 4,570 Nm (3,371 lb-ft) |
| Tool Capacity Hsk63 | 75 / 150 / 225 / 325 |
| Tool Capacity Hsk100 | 65 / 103 / 147 / 191 / 272 |
| Max Tool Length | 600 mm (23.6 in) |
| CNC Control | Heidenhain TNC7 / Siemens Sinumerik One |
| Pallet Size | Ø 1,200 x 1,000 mm (Ø 47.2 x 39.4 in) |
| Max Pallet Load | 2,000 kg (4,409 lb) |
| Number of Pallets | 2 / 5 / Linear storage / circular storage |
| Machine Weight | 25,000 - 28,000 kg (55,115 - 61,728 lb) |
| Machine Dimensions | 5,600 x 5,100 x 4,050 mm (220.5 x 200.8 x 159.4 in) (length x width x height) |
Specifications sourced from reiden.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Turning rotary table of Ø 1,200 mm (47.2 in) running at 400 rpm with 4,570 Nm maximum torque, for milling and turning in one clamping
- Choice of an 84 kW (112.6 hp) HSK100 spindle to 12,000 rpm or a 45 kW (60.3 hp) HSK63 spindle to 20,000 rpm
- The HSK100 spindle delivers 300 / 452 Nm at 100 / 40 % ED
- Up to 325 tool places with HSK63 or 272 with HSK100, and tools up to 600 mm (23.6 in) long
- Column and bed in HYDROPOL, a composite of special concrete and steel that Reiden credits with excellent damping behavior
- Pallets of Ø 1,200 x 1,000 mm carrying 2,000 kg (4,409 lb), from 2 pallets up to linear or circular storage
Limitations
- The rotary table needed for turning is an option, not part of the base machine
- The Z travel row reads 1,000 (1300) mm and Reiden does not explain the bracketed figure
- No rapid traverse rate is printed for the RX12, while the RX10 table states 60 m/min
- At 25,000 - 28,000 kg (55,115 - 61,728 lb) and 4,050 mm high, foundation and hall height need checking before the order
- Pallet load of 2,000 kg (4,409 lb) is less than half the 4,500 kg listed for the RX14
Best For
Frequently Asked Questions
01
Yes, with an option. Reiden says that with the spindle clamping and the optional rotary table, workpieces can be turned at a maximum speed of 400 rpm. The table lists the turning rotary table at Ø 1,200 mm (47.2 in) with a maximum torque of 4,570 Nm. The turning tool sits in the clamped milling spindle while the table rotates the part.
02
Two motor spindles. The HSK100 version is rated 84 kW (112.6 hp), 0 - 12,000 rpm and 300 / 452 Nm at 100 / 40 % ED. The HSK63 version is rated 45 kW (60.3 hp) and 0 - 20,000 rpm. The tool changer differs with the taper: up to 325 places for HSK63 and up to 272 for HSK100.
03
Reiden's table prints the Z axis as 1,000 (1300) mm and gives no explanation for the figure in brackets. It may be an extended version, but the page doesn't say so. Plan fixtures and part height around 1,000 mm (39.4 in) and ask Reiden what the second figure refers to.
04
The RX12 is larger in every linear axis: 1,300 mm of X and 1,450 mm of Y against 1,000 mm and 1,100 mm on the RX10. It adds the 84 kW HSK100 spindle and the turning rotary table, neither of which appears in the RX10 table. Pallet load is 2,000 kg against 1,600 kg on the RX10, and the RX12 weighs 25,000 - 28,000 kg where the RX10 weighs 18,200 kg.
05
Pallets measure Ø 1,200 x 1,000 mm and carry up to 2,000 kg (4,409 lb). Reiden lists changers for 2 or 5 pallets as well as linear and circular storage, and says the machine can be upgraded in stages towards a linear storage unit while setup continues during operation.
