Johnford DMC-4000x2800-R2-AC5

Q: How much does the Johnford DMC-4000x2800-R2-AC5 cost?

The price estimate for the Johnford DMC-4000x2800-R2-AC5 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/johnford-dmc-4000x2800-r2-ac5#price; the request is passed to Johnford or an authorised dealer.

Specs verified 2026-10-04 · johnford.com.tw Updated 2026-10-04

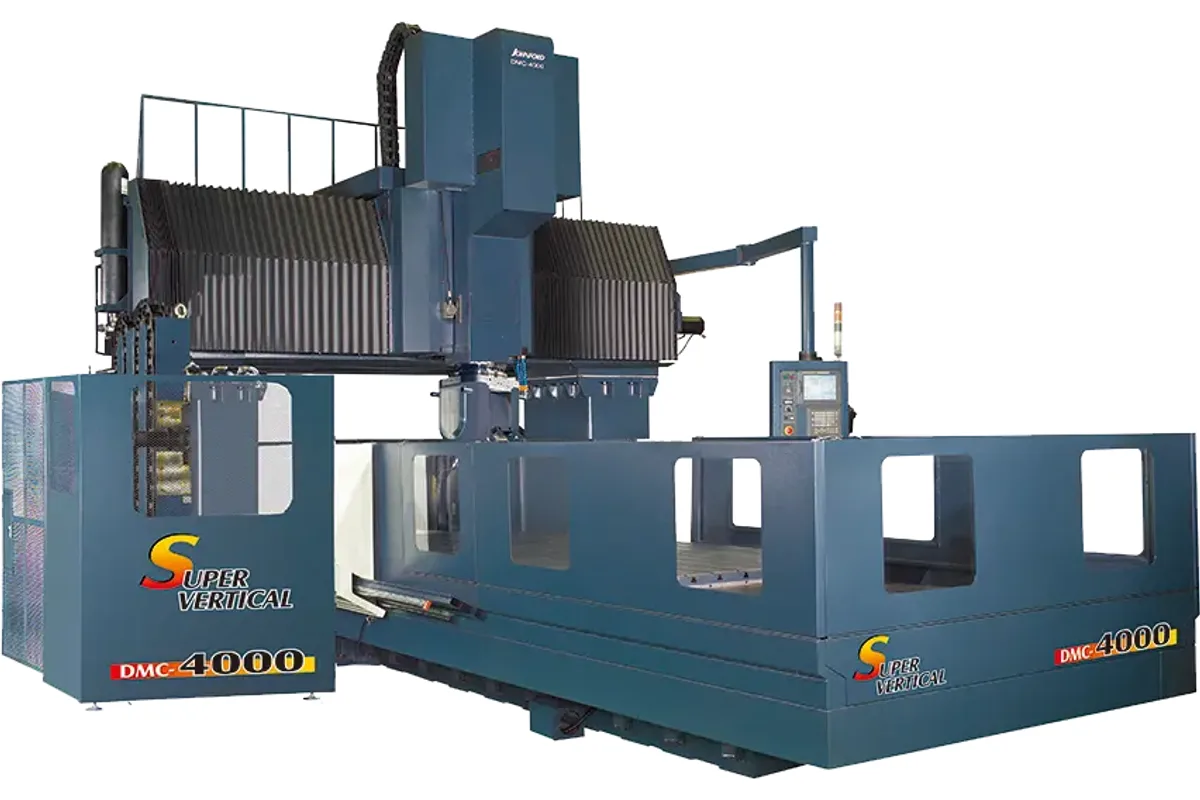

Johnford Large DMC series (the picture the maker shows for Large DMC; a DMC-4000 with 5-axis head)

Image: johnford.com.tw, Johnford

Key Specifications

Spindle Taper

AC51:No.50; AC52:HSK A100

Tool Capacity

40 tools Std. (60, 80, 120 Opt.)

Table Size

4,200 x 2,200 mm (165.3 x 86.6 in)

Spindle Power

31 / 40 kW (41.6 / 53.6 hp)

distance between columns

2,800 mm (110.2 in)

x axis travel

4,000 mm (157.4 in)

How much does the Johnford DMC-4000x2800-R2-AC5 cost?

Price estimate

Uncertain

We do not have a price for the Johnford DMC-4000x2800-R2-AC5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Johnford DMC-4000x2800-R2-AC5 carries the stronger of the two R2 heads on the Large DMC frame. Spindle power is 31 / 40 kW (41.6 / 53.6 hp), the highest in this group's table, across a speed range of 50~10,000 rpm. The taper is No.50 in the AC51 version and HSK A100 in the AC52 version.

It shares the envelope of its lighter sibling: 4,000 mm (157.4 in) in X, 3,600 mm (141.7 in) in Y, 1,066 mm (42 in) in Z, with a 4,200 x 2,200 mm (165.3 x 86.6 in) table that takes 20,000 kg (44,000 lb). What changes is how hard it can cut. The DMC-4000x2800-R2-AC4 is limited to 10 kg (22 lb) tools of Ø100 mm (Ø3.9 in), whereas this head accepts 20 kg (44 lb) tools up to Ø200 mm (Ø7.8 in) and 400 mm (15.7 in) long.

That makes it the choice when the same setup has to rough and finish. A forging die, a turbine housing or a large structural part in steel or titanium can be opened up with a big cutter and then finished at up to 10,000 rpm without moving to a second machine.

It is also the tallest and, with the 5F, the heaviest of the four models: 6,500 mm (256 in) high and 68,000 kg (149,600 lb). Width is 6,500 mm (256 in) and length 10,900 mm (429 in). As with the AC4 version, the maker's page states no swivel angles for the head, and the standard enclosure is a semi-enclosure.

Full Specifications

Parameter	Value
Distance Between Columns	2,800 mm (110.2 in)
Table Size	4,200 x 2,200 mm (165.3 x 86.6 in)
X Axis Travel	4,000 mm (157.4 in)
Y Axis Travel	3,600 mm (141.7 in)
Z Axis Travel	1,066 mm (42 in)
W Axis Travel	1,000~2,500 mm (39.4~98.4 in)
Distance Spindle Nose to Table	150~1,216 mm (5.9~47.9 in)
Spindle Taper	AC51:No.50; AC52:HSK A100
Spindle Speed	50~10,000 rpm
Spindle Motor Power	31 / 40 kW (41.6 / 53.6 hp)
Rapid Traverse Xyz	12 / 12 / 10 m/min (472 / 472 / 394 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Max Tool Diameter Adjacent Pockets	Ø125 mm (Ø4.9 in)
Tool Capacity	40 tools Std. (60, 80, 120 Opt.)
Max Tool Diameter (full magazine)	Ø200 mm (Ø7.8 in)
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	20 kg (44 lb)
Tool Selection	Bi-direction random type, Shortest path
Max Table Load	20,000 kg (44,000 lb)
Machine Length	10,900 mm (429 in)
Machine Width	6,500 mm (256 in)
Machine Height	6,500 mm (256 in)
Machine Weight	68,000 kg (149,600 lb)

Specifications sourced from johnford.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

31 / 40 kW (41.6 / 53.6 hp) spindle, the most powerful in the Large DMC table
50~10,000 rpm with No.50 (AC51) or HSK A100 (AC52) taper
Takes 20 kg (44 lb) tools up to Ø200 mm (Ø7.8 in)
4,000 x 3,600 x 1,066 mm travels over a 20,000 kg (44,000 lb) table

Limitations

6,500 mm (256 in) machine height needs a tall building
Half the top speed of the DMC-4000x2800-R2-AC4, which reaches 20,000 rpm
Head swivel ranges are not published on the maker's page
Linear axes rapid at 12 / 12 / 10 m/min (472 / 472 / 394 ipm)

Best For

Roughing and finishing large steel dies in one setup Turbine housings and heavy structural parts needing a 50-taper head Titanium and alloy steel parts up to 20,000 kg (44,000 lb)

Frequently Asked Questions

01 How powerful is the DMC-4000x2800-R2-AC5 spindle?

31 / 40 kW (41.6 / 53.6 hp), with a speed range of 50~10,000 rpm. The base DMC-4000x2800x800 has 22 / 26 kW (29.5 / 34.9 hp) and a 6,000 rpm geared spindle.

02 What do AC51 and AC52 mean on the DMC-4000x2800-R2-AC5?

They are the maker's codes for the two spindle tapers offered on this head. The table lists AC51 as No.50 and AC52 as HSK A100. The page does not explain the codes further.

03 How much space does the DMC-4000x2800-R2-AC5 need?

10,900 mm (429 in) in length, 6,500 mm (256 in) in width and 6,500 mm (256 in) in height. The machine weighs 68,000 kg (149,600 lb), so the foundation and the crane both need planning.

04 Can the DMC-4000x2800-R2-AC5 be ordered with a larger tool magazine?

The specification table gives 40 tools as standard and 60, 80 or 120 as options. The accessory list separately mentions a 24-tool ATC as standard and 60, 80, 100-ATC or more as options, so the standard size should be confirmed.
