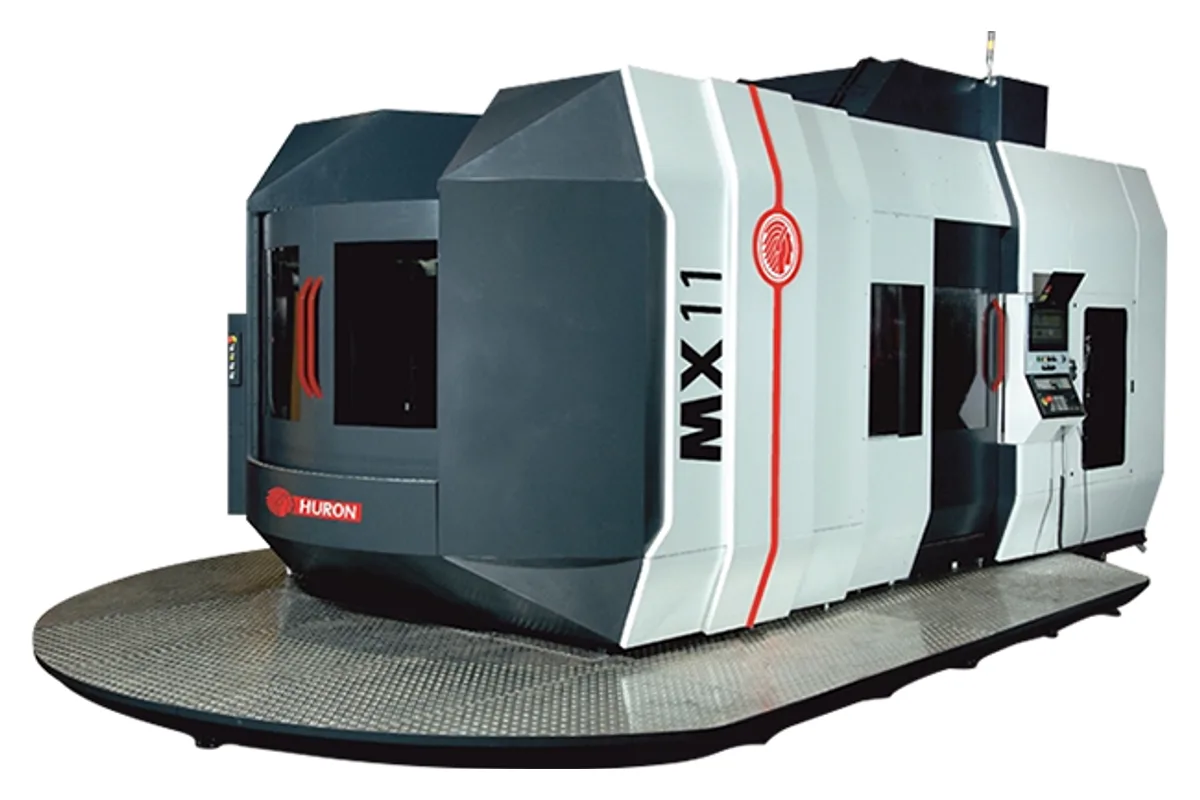

Huron MX 11 M APC
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron MX 11 M APC cost?
Price estimate
We do not have a price for the Huron MX 11 M APC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron MX 11 M APC is the MX machine Huron lists with a pallet changer in its name. It is a five-axis universal-head milling centre with 1,250 x 1,250 x 1,000 mm (49.2 x 49.2 x 39.4 in) of travel and a rectangular table of 1,000 x 800 mm carrying 2,000 kg (4,409 lb).
Other MX models offer an APC as an option and quote two sets of dimensions. The MX 11 has one set: 5,900 mm wide, 8,500 mm deep and 3,600 mm high. That makes it the lowest and narrowest machine in the universal-head group, despite travels slightly larger than those of the MX 10 M.
Huron's page offers it in milling form only. The spindle is HSK 63-A with 14,000 rpm, 29 kW and 277 Nm, and the C axis turns at 30 rpm, a positioning and contouring speed. The head tilts from -45° to +180° on a 45° plane at 100 rpm.
A rectangular 1,000 x 800 mm table is a pallet format, convenient for tombstones, vises and standard fixtures. With 1,250 mm of X and Y around it, the head has reach beyond every edge of the pallet at any C position. Sixty tools up to 120 mm in diameter and 400 mm long are available. Positioning is 0.007 mm on the linear axes and 10 sec on A and C.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,250 mm (49.2 in) |
| Y Axis Travel | 1,250 mm (49.2 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Rapid Traverse Xyz | 40 m/min |
| Head Type | Universal head |
| A Axis Range | -45° / +180° |
| A Axis Speed | 100 rpm |
| Table Type | Milling |
| Table Size | 1,000 x 800 mm (39.4 x 31.5 in) |
| Max Table Load | 2,000 kg (4,409 lb) |
| C Axis Speed | 30 rpm |
| Max Spindle Speed | 14,000 rpm |
| Spindle Taper | HSK 63-A |
| Spindle Motor Power | 29 kW (38.9 hp) |
| Spindle Torque | 277 Nm (204.3 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 120 mm (4.7 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Max Tool Length | 400 mm (15.7 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec |
| Machine Width | 5,900 mm (232.3 in) |
| Machine Depth | 8,500 mm (334.6 in) |
| Machine Height | 3,600 mm (141.7 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- Pallet-changer machine by designation, with a 1,000 x 800 mm table
- 1,250 x 1,250 mm X and Y travels around the pallet
- Lowest of the universal-head MX machines at 3,600 mm
- 277 Nm, 14,000 rpm HSK 63-A spindle
- 60-tool changer for tools up to 400 mm long
Limitations
- Listed in milling (M) form only, with no mill-turn version
- C axis speed is 30 rpm, so no turning is possible
- Tools limited to 8 kg and 120 mm in diameter
- Table load of 2,000 kg includes pallet fixtures
Best For
Frequently Asked Questions
01
Automatic pallet changer. Huron's table heads this model MX 11 M APC and gives a single set of overall measurements, whereas the MX 8, MX 10 and MX 12 pages list figures with and without an optional APC.
02
1,250 mm in X and Y and 1,000 mm in Z, at 40 m/min. The table is 1,000 x 800 mm (39.4 x 31.5 in) and carries 2,000 kg (4,409 lb). It rotates as the C axis at 30 rpm.
03
Huron's page for the MX 11 lists the milling (M) version only. For turning on a similar size of machine, the MX 10 MT has a 1,000 mm table at 500 rpm.
04
5,900 mm wide, 8,500 mm deep and 3,600 mm high with doors opened and conveyor. Among the universal-head MX machines it has the smallest height.
