AWEA MCP-16050
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the AWEA MCP-16050 cost?
Price estimate
We do not have a price for the AWEA MCP-16050 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Sixteen metres of X travel puts two demands on a moving column machine: both columns must stay in step, and the shop has to supply it. The AWEA MCP-16050, with 16,000 mm (629.9 in) of X and 5,400 mm (212.6 in) of Y, is where those questions start to dominate the purchase.
On synchronisation, AWEA fits the X-axis with dual linear scales. Combined with what the maker calls Simultaneous Control Technology, they are there to prevent misalignment of the moving columns. What the table does not give is a positioning accuracy or repeatability value for any MCP model. A buyer with tolerance requirements over a 16,000 x 3,800 mm (629.9 x 149.6 in) table should ask for the acceptance figures in writing.
On services, the published requirement is 220 ± 10 % Vac at 80 kVA, with compressed air at 5 ~ 8 (5) kg/cm². Tank sizes are 4,000 liter for coolant, 100 liter for hydraulics and 6 liter for lubrication. None of these change with bed length, so the MCP-16050 is listed with the same supply as the MCP-8050 despite its table being twice as long.
The cutting end is common to the group. A BBT50 spindle with a 22 / 26 kW (29.5 / 34.9 hp) motor, a 40T magazine, 1,400 mm (55.1 in) of Z. X and Z rapid at 10 m/min (394 ipm) and Y at 7.5 m/min (295 ipm), so a move from one end of the bed to the other takes long enough that operations are best ordered by position along the part.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 16,000 mm (629.9 in) |
| Y Axis Travel | 5,400 mm (212.6 in) |
| Z Axis Travel | 1,400 mm (55.1 in) (1,600 mm Opt.) |
| Table Size | 16,000 x 3,800 mm (629.9 x 149.6 in) |
| Distance Spindle Nose to Table | 800 ~ 2,200 mm (31.5 ~ 86.6 in) (600 ~ 2,200 mm Opt.) |
| Distance Between Columns with X Axis Covers | 4,700 mm (4,500 mm) |
| Spindle Taper | BBT50 |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Spindle Speed Vertical | 4,000 Gear Spindle (Std.)；5,000 / 6,000 Gear Spindle (Opt.)；8,000 / 12,000 Built-in Spindle (Opt.) |
| Rapid Traverse Xyz | 10 / 7.5 / 10 m/min (394 / 295 / 394 ipm) |
| Cutting Feed Rate | 1 ~ 10 m/min (39 ~ 394 ipm) |
| Tool Capacity | 40T (60T Opt.) |
| Max Tool Diameter (full magazine) | Ø125 / Ø200 mm (Ø4.9 / Ø7.9 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Coolant Tank Capacity | 4,000 liter |
| Lubrication Tank Capacity | 6 liter |
| Hydraulic Tank Capacity | 100 liter |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Power Requirement | 220 ± 10 % Vac / 80 kVA |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Dual linear scales on the X-axis to keep the two moving columns aligned
- 16,000 mm (629.9 in) of X travel with 5,400 mm (212.6 in) of Y
- Power requirement of 80 kVA, the same as the 8,000 mm MCP-8050
- 4,000 liter coolant tank and 100 liter hydraulic tank
Limitations
- No positioning accuracy or repeatability figures are published
- Rapids of 10 / 7.5 / 10 m/min (394 / 295 / 394 ipm) make end-to-end moves slow on a bed this long
- The supply is listed as 220 ± 10 % Vac, so sites on other voltages need a transformer
- Coolant capacity stays at 4,000 liter although the table is 16,000 mm long
Best For
Frequently Asked Questions
01
AWEA states that the X-axis features dual linear scales which, in combination with its Simultaneous Control Technology, prevent misalignment of the moving columns. Each side of the bridge is measured directly instead of relying on one side's position alone.
02
None in the published specification table. It lists travels, spindle, feeds, magazine and services but no accuracy or repeatability row for any MCP model. The X-axis has dual linear scales, and AWEA describes them as ensuring dynamic accuracy, but a figure has to be requested from the maker.
03
The table gives 220 ± 10 % Vac at 80 kVA and a pneumatic pressure requirement of 5 ~ 8 (5) kg/cm². The coolant tank holds 4,000 liter, the hydraulic tank 100 liter and the lubrication tank 6 liter.
04
Not according to AWEA's table. The MCP-16050 and the MCP-8050 are both listed at 80 kVA with a 22 / 26 kW (29.5 / 34.9 hp) spindle motor, although X travel is 16,000 mm (629.9 in) on one and 8,000 mm (315.0 in) on the other.
More from AWEA
Other 5-Axis Machining Centers

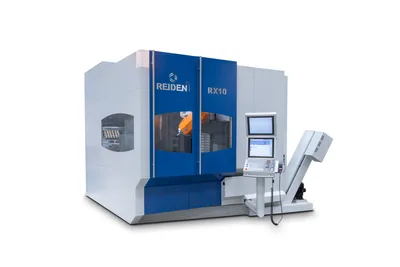

Reiden RX10
Johnford DMC-4000x2800-R2-AC5
Mazak VORTEX 630-4XS

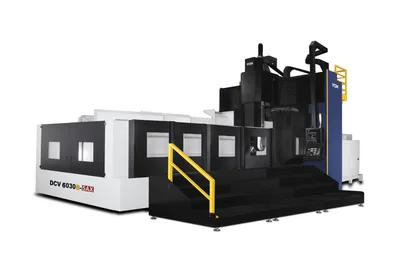

YCM DCV6030B-5AX

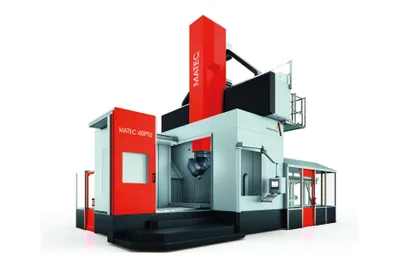

Matec 30PTU | 40PTU
