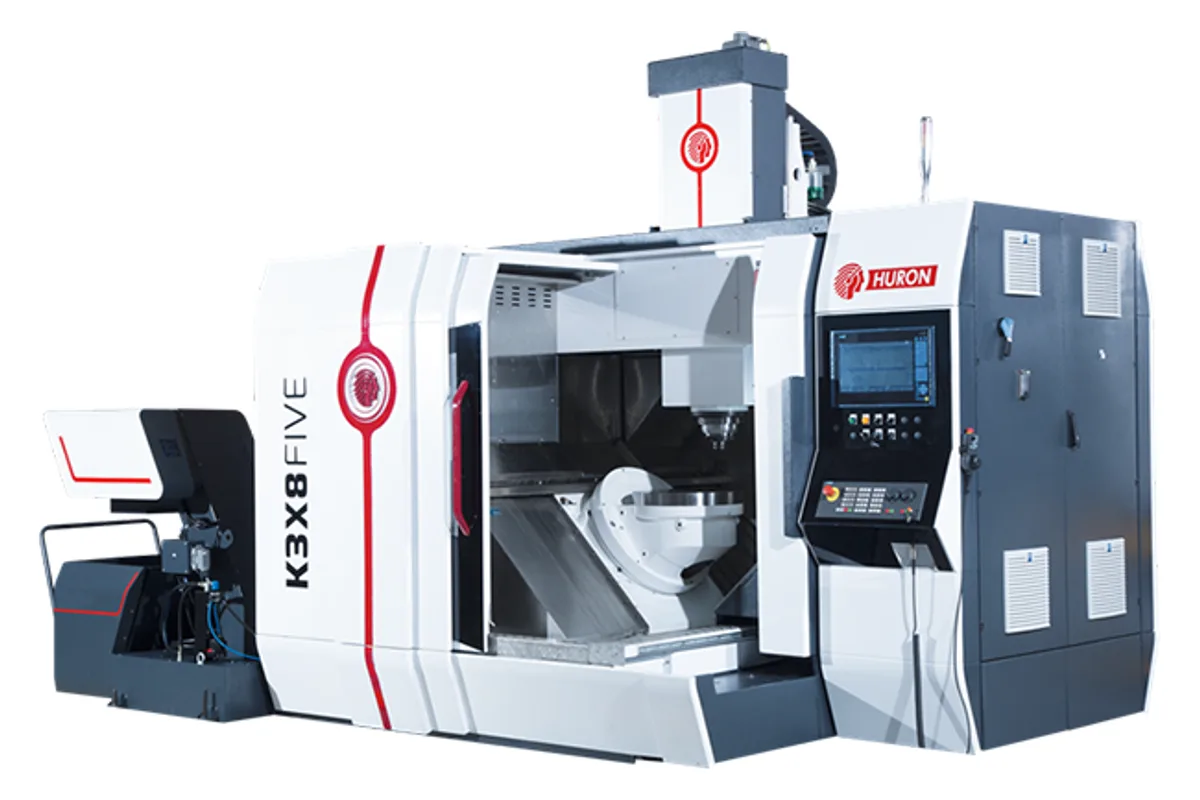

Huron K3X 8 Five
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron K3X 8 Five cost?
Price estimate
We do not have a price for the Huron K3X 8 Five that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron K3X 8 Five is a five-axis portal machining centre with a two-axis table mounted on a 55° plane. Linear travels are 780 x 700 x 500 mm (30.7 x 27.6 x 19.7 in), the table is 500 mm in diameter and the spindle is an 18,000 rpm HSK 63-A unit with 30 kW.
The inclined table is the defining feature. Its A axis tilts from +30° to -180° and C rotates 360°, both at 50 rpm and both continuously controlled. Because the table swings on an angled plane instead of a horizontal trunnion, it stays compact under the portal, and Huron notes permanent visibility over the workpiece.
Accuracy figures are tight. Huron states 0.004 mm positioning and 0.002 mm repeatability on X, Y and Z, and 7.2 sec and 3.6 sec on A and C. Rapids are 50 m/min. The structure is a large monoblock bed with a reinforced portal in cast iron, and floor anchor points are provided to support the speeds and accelerations.
Table load is 300 kg (661 lb), and the distance from spindle face to table top is 520 mm. Those two numbers set the limit: this is a machine for small, intricate parts such as impellers, medical components and mould inserts. Tools can be 90 mm in diameter, 250 mm long and 10 kg, with 36 housings. Width is 5,500 mm and depth 2,700 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 780 mm (30.7 in) |
| Y Axis Travel | 700 mm (27.6 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Rapid Traverse Xyz | X / Y / Z: 50 m/min |
| A Axis Range | +30° / - 180° |
| C Axis Range | 360° |
| Table Axes Speed | A, C: 50 rpm |
| Table Structure | Rotating table on a 55° plane |
| Table Size | Ø 500 mm (Ø 19.7 in) |
| Max Table Load | 300 kg (661 lb) |
| Distance Spindle Nose to Table | 520 mm (20.5 in) |
| Max Spindle Speed | 18,000 rpm |
| Spindle Taper | HSK 63-A |
| Spindle Motor Power | 30 kW (40.2 hp) |
| Spindle Torque | 110 Nm (81.1 lb-ft) |
| Spindle Characteristic Speed | 3,400 rpm |
| Tool Capacity | 36 |
| Max Tool Diameter (full magazine) | 90 mm (3.5 in) |
| Max Tool Weight | 10 kg (22 lb) |
| Max Tool Length | 250 mm (9.8 in) |
| Positioning Accuracy | X / Y / Z: 0.004 mm (0.0002 in); A, C: 7.2 sec |
| Repeatability | X / Y / Z: 0.002 mm (0.0001 in); A, C: 3.6 sec |
| Machine Width | 5,500 mm (216.5 in) |
| Machine Depth | 2,700 mm (106.3 in) |
| Machine Height | 3,782 mm (148.9 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- Positioning of 0.004 mm on X, Y and Z and 7.2 sec on A and C
- Continuously controlled two-axis table on a 55° plane
- A-axis range from +30° to -180°
- 18,000 rpm HSK 63-A spindle with 30 kW and 110 Nm
- Only 2,700 mm deep with doors open and conveyor
Limitations
- Table load is 300 kg (661 lb)
- Maximum tool length is 250 mm, against 300 mm on the K2X 10 Five
- Table diameter of 500 mm limits fixture size
- Rotary axis speed is 50 rpm, modest for simultaneous work on small parts
Best For
Frequently Asked Questions
01
It is a rotating table on a 55° plane with two continuously controlled axes. A tilts from +30° to -180° and C rotates 360°, each at up to 50 rpm. The table is 500 mm in diameter and carries 300 kg (661 lb).
02
Huron gives positioning of 0.004 mm on the linear axes and 7.2 sec on A and C. Repeatability is 0.002 mm on the linear axes and 3.6 sec on the rotary ones.
03
The K2X 10 Five is larger: 900 x 900 x 500 mm travels, a 630 mm table on a 45° plane and a 750 kg load. The K3X 8 Five has 780 x 700 x 500 mm, a 500 mm table on a 55° plane and 300 kg. Both use the same spindle and a 36-tool changer.
04
An HSK 63-A spindle with a maximum speed of 18,000 rpm, 30 kW of power and 110 Nm of torque. The characteristic speed is 3,400 rpm. Huron's table lists this one spindle for the model.
