HOLZ-HER EVOLUTION 7405 PinJet

Q: How much does the HOLZ-HER EVOLUTION 7405 PinJet cost?

The price estimate for the HOLZ-HER EVOLUTION 7405 PinJet is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/holz-her-evolution-7405-pinjet#price; the request is passed to HOLZ-HER or an authorised dealer.

Specs verified 2026-10-05 · holzher.co.uk Updated 2026-10-05

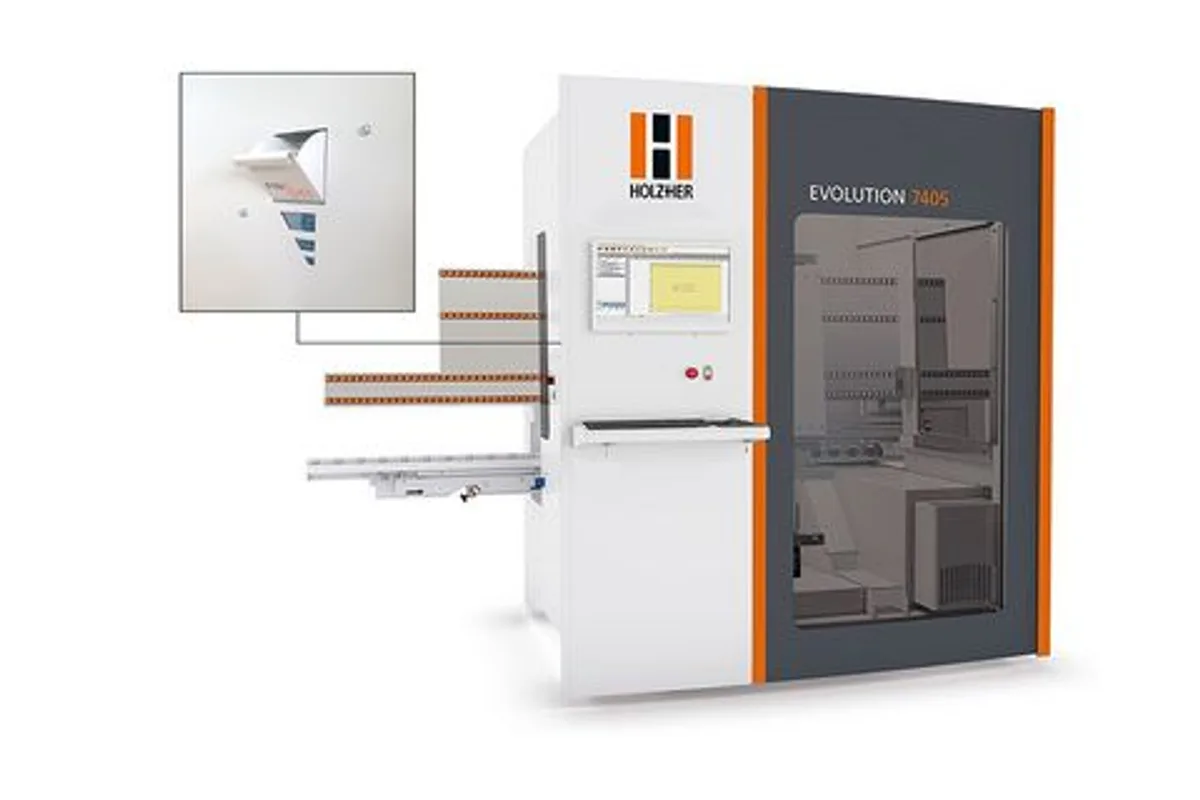

HOLZ-HER EVOLUTION 7405 PinJet vertical CNC machining centre with dowel unit detail

Image: holzher.co.uk, HOLZ-HER

Key Specifications

Spindle Power

10.3 kW (13.8 hp), HSK chuck

machining length x

3,200 mm (126.0 in)

machining height y

920 mm (36.2 in)

spindle speed range

1,000-24,000 rpm

max tool diameter

80 mm (3.1 in)

max tool length

80 mm (3.1 in)

How much does the HOLZ-HER EVOLUTION 7405 PinJet cost?

Price estimate

Uncertain

We do not have a price for the HOLZ-HER EVOLUTION 7405 PinJet that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The HOLZ-HER EVOLUTION 7405 PinJet combines the four-edge formatting of the EVOLUTION 7405 with fully automatic doweling. A panel can be routed to size on all four edges, drilled, and have its dowels driven before it leaves the 3,200 mm (126.0 in) machine.

PinJet is a dowel insertion unit fed from reservoirs inside the machine. In the controller the operator selects “Insert dowel”; the machine then drills, pretreats the hole and inserts the dowel without further input. Pretreatment means moistening the drilled hole through a process-controlled mist nozzle, for which there is a central water connection. Precoated dowels are the normal case, and the “Insert dowel dry” setting lets uncoated dowels be used too. Dowel diameter is 8 mm.

Which EVOLUTION to pick comes down to the joint. The EVOLUTION 7405 Connect is fitted out for connector pockets and has a 6-tool pick-up changer as standard. On this model the table lists a linear changer for 6 tools as an option, alongside the 10.3 kW (13.8 hp) HSK spindle with its 1,000 to 24,000 rpm range. The shorter EVOLUTION 7402 PinJet offers the same doweling unit with 2,500 mm (98.4 in) in X.

Everything else follows the EVOLUTION 7405 table: 920 mm (36.2 in) in Y, a run-in linear guide that is height adjustable for 4-sided edge routing and profiling, a 15-spindle drilling head with sawing unit in X, and a vector speed of 68 m/min. Overall length is 3,675 mm (144.7 in) and weight 2,500 kg (5,511 lb).

Full Specifications

Parameter	Value
Machining Length X	3,200 mm (126.0 in)
Machining Height Y	920 mm (36.2 in)
Spindle Motor Power	10.3 kW (13.8 hp), HSK chuck
Spindle Speed Range	1,000-24,000 rpm
Max Tool Diameter (full magazine)	80 mm (3.1 in)
Max Tool Length	80 mm (3.1 in)
Run in Linear Guide	Height adjustable for 4-sided edge routing and profiling
Vector Speed	68 m/min
Safety Equipment	CE compliant
Drilling Head	15 spindles (9 V \| 6 H), sawing unit in X direction
Drilling Head Options	XL drilling head with sawing unit in X direction; double drilling spindle in Y direction; vertical adapter with double positioning force
Workpiece Clamping	Automatically positioning vacuum system
Vacuum Pump Option	ECO-Vac 8 m³/h vacuum pump
Workpiece Support	Solid rollways incl. 2 stops
Tool Changer Option	Linear changer for 6 tools
Software	CAMPUS / NC-HOPS incl. aCADemy CAD/CAM module with machine license
Machine Weight	2,500 kg (5,511 lb)
Overall Length	3,675 mm (144.7 in)
Overall Height	2,350 mm (92.5 in)
Overall Depth	1,660 mm (65.4 in)
Extraction Connections	2 x dia. 120 mm (4.7 in) + 1 x dia. 140 mm (5.5 in)

Specifications sourced from holzher.co.uk — verified 2026-10-05

Strengths & Limitations

Strengths

Formats four edges, drills and inserts dowels in one machine
The controller runs drilling, hole pretreatment and dowel insertion as a single selected function
The “Insert dowel dry” setting allows uncoated as well as precoated dowels
3,200 mm (126.0 in) X dimension with a height-adjustable run-in linear guide
A sensor monitors the insertion unit

Limitations

The linear changer for 6 tools is an option on this variant
Dowels are inserted into 8 mm holes only
A water supply has to be brought to the machine for the mist nozzle
Overall length is 3,675 mm (144.7 in), and panels need clear space at both ends on top of that

Best For

Dowelled cabinet carcasses produced part by part Workshops that want to drop a separate dowel-driving step Complete processing of panels from 8 to 70 mm thick

Frequently Asked Questions

01 How does the EVOLUTION 7405 PinJet differ from the EVOLUTION 7405?

It adds the PinJet dowel insertion unit. The technical data table is otherwise the same: 3,200 mm (126.0 in) by 920 mm (36.2 in) of edge routing dimension, a 10.3 kW (13.8 hp) HSK spindle, a 15-spindle drilling head, 3,675 mm (144.7 in) overall length and 2,500 kg (5,511 lb).

02 From which direction are the dowels inserted?

In the +/- X direction, from both sides. The drilling unit inserts dowels of 8 mm diameter into predrilled 8 mm holes. HOLZ-HER gives the dowel length as 30 - 40 mm, and the built-in reservoirs hold approximately 300 to 400 pieces depending on that length.

03 Why does the PinJet need a water connection?

Because the hole is moistened before the dowel goes in. A process-controlled mist nozzle wets the drilled hole, which is the pretreatment for precoated dowels. With the “Insert dowel dry” setting, uncoated dowels can be used as well as precoated ones.

04 Should I choose the PinJet or the Connect version?

That depends on how the furniture is joined. The EVOLUTION 7405 PinJet drives dowels automatically. The EVOLUTION 7405 Connect comes with a 6-tool pick-up changer and Lamello tool sets for connector pockets, and does not insert dowels. Both share the 3,200 mm (126.0 in) frame and the 4-sided edge routing.
