HOLZ-HER PRO-MASTER 7018

Specs verified 2026-10-05 · holzher.co.uk Updated 2026-10-05

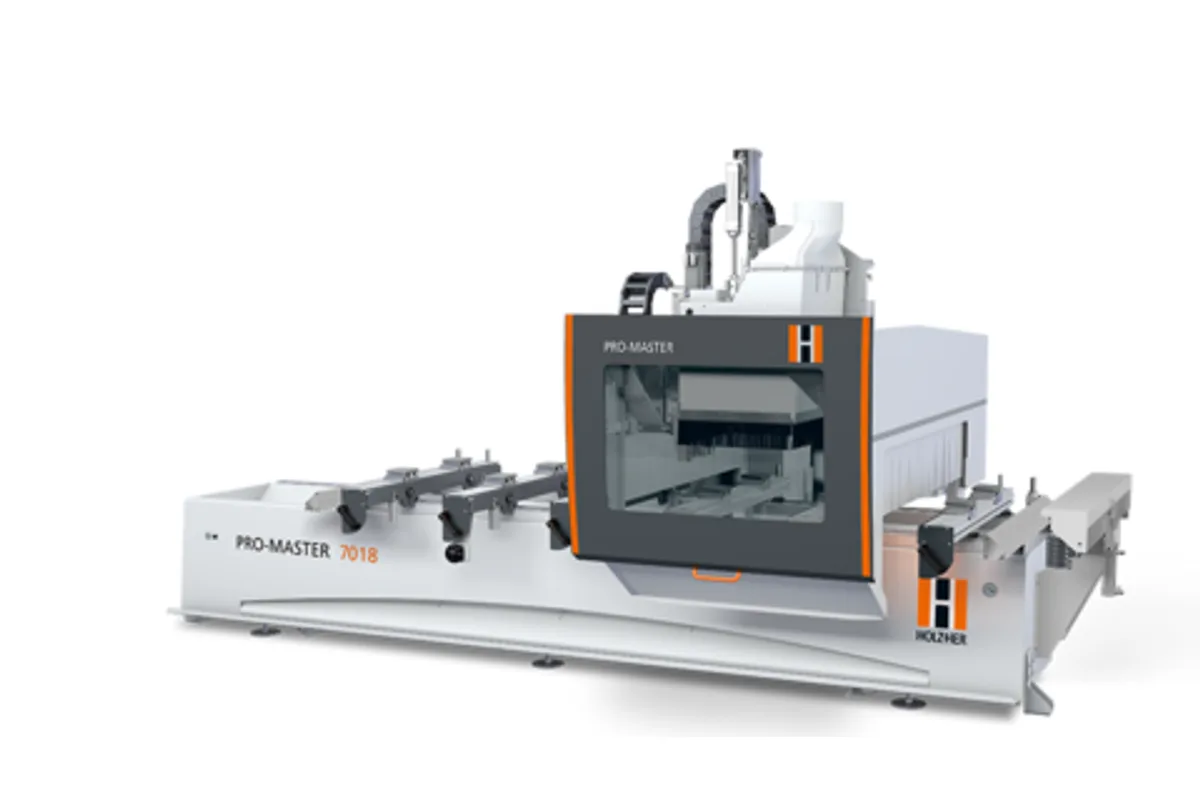

Image: holzher.co.uk, HOLZ-HER

Key Specifications

Spindle Power

11 kW (14.8 hp), ceramic bearing

machining length x

320K: 3,540 mm (139.4 in); 500K: 5,340 mm (210.2 in)

machining width y

1,287 mm (50.7 in)

z axis travel

378 mm (14.9 in)

machining height z

180 mm (7.1 in)

spindle power option

11 kW (14.8 hp), liquid-cooled

How much does the HOLZ-HER PRO-MASTER 7018 cost?

Price estimate

Uncertain

We do not have a price for the HOLZ-HER PRO-MASTER 7018 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The HOLZ-HER PRO-MASTER 7018 is a console-table CNC machining centre for panels, doors and solid wood, described by the maker as having 3 or 4 interpolating axes. It comes in two lengths. The 320K machines 3,540 mm (139.4 in) in X and the 500K machines 5,340 mm (210.2 in), both with 1,287 mm (50.7 in) in Y.

It sits below the 5-axis EPICON machines in reach and in height. Z travel is 378 mm (14.9 in) and the machining height is 180 mm (7.1 in), against 565 mm (22.2 in) and 300 mm (11.8 in) on the EPICON 7135. That covers carcass parts, door leaves and frame components clamped on the 50 millimeter suction cups. Deep three-dimensional work is outside its range.

The routing spindle is an 11 kW (14.8 hp) unit with ceramic bearings and a 1,000 to 24,000 rpm range; a liquid-cooled spindle of the same power is the option. A fully interpolating C axis appears in the options column of the technical data table, and the optional Vario5 unit sets angle and mitre cuts under CNC control. Tools ride in a 12-position traveling disk changer. An 18-position disk changer and a 12-position pick-up changer with tool cover are available.

For door production HOLZ-HER points to the 500K, since its length allows large door elements to be machined in pendular operation over the standard 3-field foot mat. Weight is 3,500 kg (7,716 lb) for the 320K and 4,300 kg (9,480 lb) for the 500K. Vector speed is 100 m/min.

Full Specifications

Parameter	Value
Machining Length X	320K: 3,540 mm (139.4 in); 500K: 5,340 mm (210.2 in)
Machining Width Y	1,287 mm (50.7 in)
Z Axis Travel	378 mm (14.9 in)
Machining Height Z	180 mm (7.1 in)
Spindle Motor Power	11 kW (14.8 hp), ceramic bearing
Spindle Power Option	11 kW (14.8 hp), liquid-cooled
Spindle Speed Range	1,000-24,000 rpm
Vector Speed	100 m/min
Vector Axis Option	C axis, fully interpolating, 0°/360° infinitely rotating
Workpiece Support	6 consoles, 8 stops, 4 charging aids, laser pointer
Safety Equipment	3-field foot mat (pendular machining)
Safety Equipment Options	Safety bumper
Vacuum Pump	100 m³/h vacuum pump, dry-running version
Vacuum Pump Options	140 / 250 m³/h vacuum pump
Tool Changer	12-position traveling disk tool changer
Tool Changer Options	18-position disk tool changer, 12-position pick-up tool changer with tool cover
Software	2 x CAMPUS Basic; Hops; aCADemy; CabinetControl Base
Machine Weight	320K: 3,500 kg (7,716 lb); 500K: 4,300 kg (9,480 lb)

Specifications sourced from holzher.co.uk — verified 2026-10-05

Strengths & Limitations

Strengths

Two lengths: 3,540 mm (139.4 in) of X for the 320K and 5,340 mm (210.2 in) for the 500K
A 12-position traveling disk tool changer is standard equipment
11 kW (14.8 hp) ceramic-bearing spindle with a 1,000 to 24,000 rpm range
Console table with 6 consoles, 8 stops, 4 charging aids and a laser pointer for positioning
Standard software package of 2 x CAMPUS Basic, Hops, aCADemy and CabinetControl Base

Limitations

Machining height is 180 mm (7.1 in) and Z travel 378 mm (14.9 in), well short of the 300 mm (11.8 in) and 565 mm (22.2 in) of the EPICON 7135
The C axis is listed as an option, and the table shows no 5-axis head for this model
Y dimension of 1,287 mm (50.7 in) limits panel width
Vector speed of 100 m/min is below the 142 m/min of the EPICON 7135

Best For

Cabinet and furniture parts up to 1,287 mm (50.7 in) wide Door leaves and construction elements in pendular operation on the 500K Routing, drilling, sawing and grooving of case parts on one console table

Frequently Asked Questions

01 What is the difference between the 320K and 500K versions of the PRO-MASTER 7018?

Length and weight. The 320K has an X machining dimension of 3,540 mm (139.4 in) and weighs 3,500 kg (7,716 lb). The 500K reaches 5,340 mm (210.2 in) and weighs 4,300 kg (9,480 lb). The Y dimension, Z travel and spindle are the same on both.

02 Is the PRO-MASTER 7018 a 4-axis machine?

HOLZ-HER describes the PRO-MASTER 70 series as having 3 or 4 interpolating axes. In the technical data table the fully interpolating, infinitely rotating C axis is in the options column, so check that it is on the quotation if you need it for angle units such as the optional Vario5.

03 How tall a workpiece fits on the PRO-MASTER 7018?

The machining height in Z is 180 mm (7.1 in), with 378 mm (14.9 in) of Z travel. HOLZ-HER notes that the suction cups are 50 millimeter high and that frame clamps are available for solid wood.

04 Which tool changers are offered on the PRO-MASTER 7018?

A 12-position traveling disk tool changer is standard. The options are an 18-position disk tool changer and a 12-position pick-up tool changer with a tool cover. All of them serve the 11 kW (14.8 hp) routing spindle, which runs from 1,000 to 24,000 rpm.
