HOLZ-HER EVOLUTION 7405

Q: How much does the HOLZ-HER EVOLUTION 7405 cost?

The price estimate for the HOLZ-HER EVOLUTION 7405 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/holz-her-evolution-7405#price; the request is passed to HOLZ-HER or an authorised dealer.

Specs verified 2026-10-05 · holzher.co.uk Updated 2026-10-05

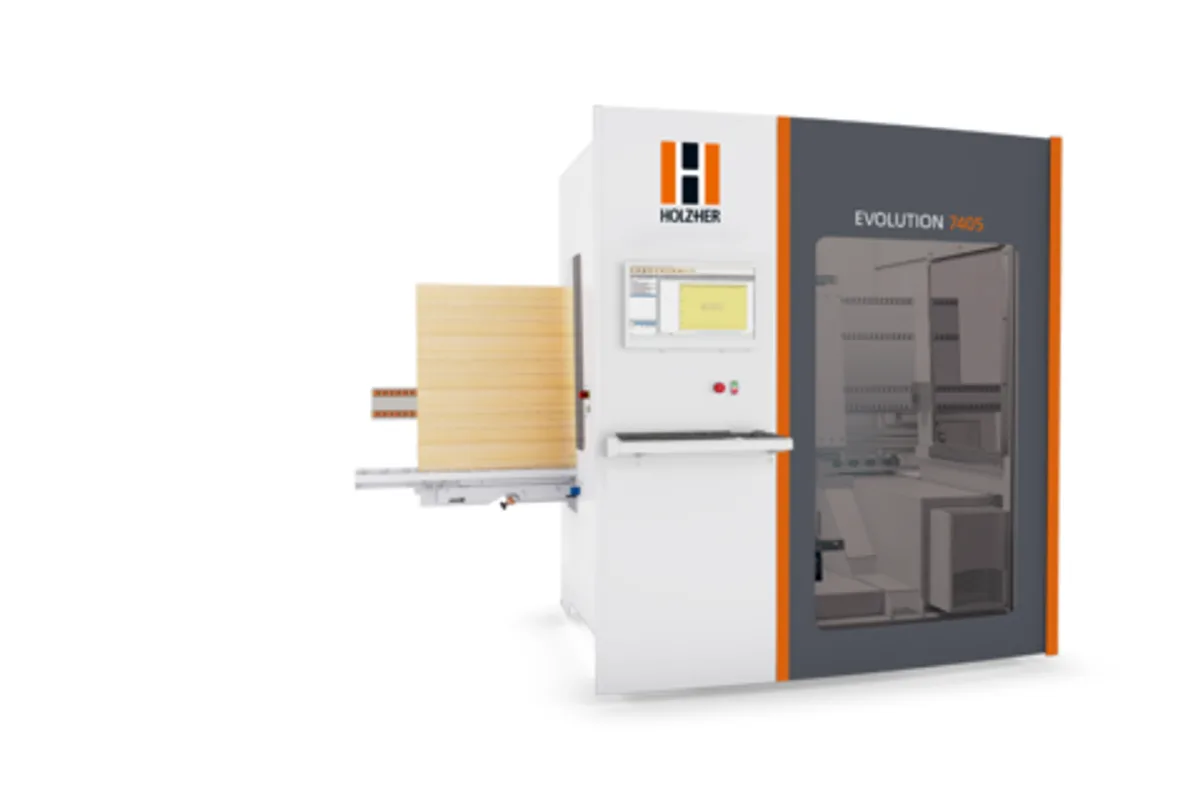

HOLZ-HER EVOLUTION 7405 vertical CNC machining centre

Image: holzher.co.uk, HOLZ-HER

Key Specifications

Spindle Power

10.3 kW (13.8 hp), HSK chuck

machining length x

3,200 mm (126.0 in)

machining height y

920 mm (36.2 in)

spindle speed range

1,000-24,000 rpm

max tool diameter

80 mm (3.1 in)

max tool length

80 mm (3.1 in)

How much does the HOLZ-HER EVOLUTION 7405 cost?

Price estimate

Uncertain

We do not have a price for the HOLZ-HER EVOLUTION 7405 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The HOLZ-HER EVOLUTION 7405 is the longer vertical CNC machining centre in the EVOLUTION series, with edge routing dimensions of 3,200 mm (126.0 in) in X and 920 mm (36.2 in) in Y. HOLZ-HER also calls it the EVOLUTION 7405 4mat, after its headline ability: routing all four edges of a panel so that it leaves the machine fully formatted.

The part that makes this possible appears in the table as the run-in linear guide, height adjustable for 4-sided edge routing and profiling. The operator sets the bottom jointing dimension and the rest runs automatically. HOLZ-HER states that workpieces up to 1,500 mm long are machined without reclamping, and gives the vertical pass-through as 1,200 mm for material from 8 to 70 mm thick.

Routing is by a 10.3 kW (13.8 hp) spindle with HSK chuck, 1,000 to 24,000 rpm, with tools up to 80 mm (3.1 in) in both diameter and length. A linear changer for 6 tools is the tool changer option. The Performance package text ties the HSK spindle and a 6-tool changer together and names profile milling and engraving as what they add. The standard drilling head has 15 spindles and a sawing unit in X.

The frame is 3,675 mm (144.7 in) long, 1,660 mm (65.4 in) deep and 2,350 mm (92.5 in) high and weighs 2,500 kg (5,511 lb). It is longer but slightly lower and shallower than the EVOLUTION 7402 at 2,960 mm (116.5 in), 1,725 mm (67.9 in) and 2,440 mm (96.1 in). Vector speed is 68 m/min.

Full Specifications

Parameter	Value
Machining Length X	3,200 mm (126.0 in)
Machining Height Y	920 mm (36.2 in)
Spindle Motor Power	10.3 kW (13.8 hp), HSK chuck
Spindle Speed Range	1,000-24,000 rpm
Max Tool Diameter (full magazine)	80 mm (3.1 in)
Max Tool Length	80 mm (3.1 in)
Run in Linear Guide	Height adjustable for 4-sided edge routing and profiling
Vector Speed	68 m/min
Safety Equipment	CE compliant
Drilling Head	15 spindles (9 V \| 6 H), sawing unit in X direction
Drilling Head Options	XL drilling head with sawing unit in X direction; double drilling spindle in Y direction; vertical adapter with double positioning force
Workpiece Clamping	Automatically positioning vacuum system
Vacuum Pump Option	ECO-Vac 8 m³/h vacuum pump
Workpiece Support	Solid rollways incl. 2 stops
Tool Changer Option	Linear changer for 6 tools
Software	CAMPUS / NC-HOPS incl. aCADemy CAD/CAM module with machine license
Machine Weight	2,500 kg (5,511 lb)
Overall Length	3,675 mm (144.7 in)
Overall Height	2,350 mm (92.5 in)
Overall Depth	1,660 mm (65.4 in)
Extraction Connections	2 x dia. 120 mm (4.7 in) + 1 x dia. 140 mm (5.5 in)

Specifications sourced from holzher.co.uk — verified 2026-10-05

Strengths & Limitations

Strengths

4-sided edge routing and profiling through a height-adjustable run-in linear guide
3,200 mm (126.0 in) X dimension against 2,500 mm (98.4 in) on the EVOLUTION 7402
Workpieces up to 1,500 mm long are machined without reclamping, according to HOLZ-HER
Optional linear changer for 6 tools serving the 10.3 kW (13.8 hp) HSK spindle
A 15-spindle drilling head and sawing unit are standard

Limitations

The 6-tool linear changer is an option, not base equipment
Y edge routing dimension is 920 mm (36.2 in)
Tool size is capped at 80 mm (3.1 in) in diameter and 80 mm (3.1 in) in length, which excludes large profile cutters
At 3,675 mm (144.7 in) overall length it needs more wall space than the EVOLUTION 7402 at 2,960 mm (116.5 in)

Best For

Complete formatting, drilling and grooving of cabinet parts in one pass Furniture fronts, sides and rear walls from 8 to 70 mm thick Door machining with the optional door package

Frequently Asked Questions

01 What does 4mat mean on the EVOLUTION 7405?

It is HOLZ-HER's name for complete processing on all four edges. The machine routes all four workpiece edges, so panel material is fully formatted, grooved and profiled. The technical data table lists a height-adjustable run-in linear guide for this, and the operator only sets the bottom jointing dimension.

02 How long a part can the EVOLUTION 7405 machine without reclamping?

HOLZ-HER states that workpieces with lengths up to 1,500 mm can be machined without reclamping, and describes longitudinal processing as unlimited, since longer panels are fed through. The edge routing dimension in X is 3,200 mm (126.0 in).

03 Is a tool changer included on the EVOLUTION 7405?

Not in the standard column of the table. A linear changer for 6 tools is listed as an option, and the Performance package combines the 10.3 kW (13.8 hp) HSK spindle with a tool changer for 6 tools. Maximum tool dimensions are 80 mm (3.1 in) in diameter and 80 mm (3.1 in) in length.

04 How big and heavy is the EVOLUTION 7405?

Overall length is 3,675 mm (144.7 in), overall height 2,350 mm (92.5 in) and overall depth 1,660 mm (65.4 in). The weight is 2,500 kg (5,511 lb). Extraction connects through two ports of 120 mm (4.7 in) diameter and one of 140 mm (5.5 in).
