HOLZ-HER EVOLUTION 7405 Connect

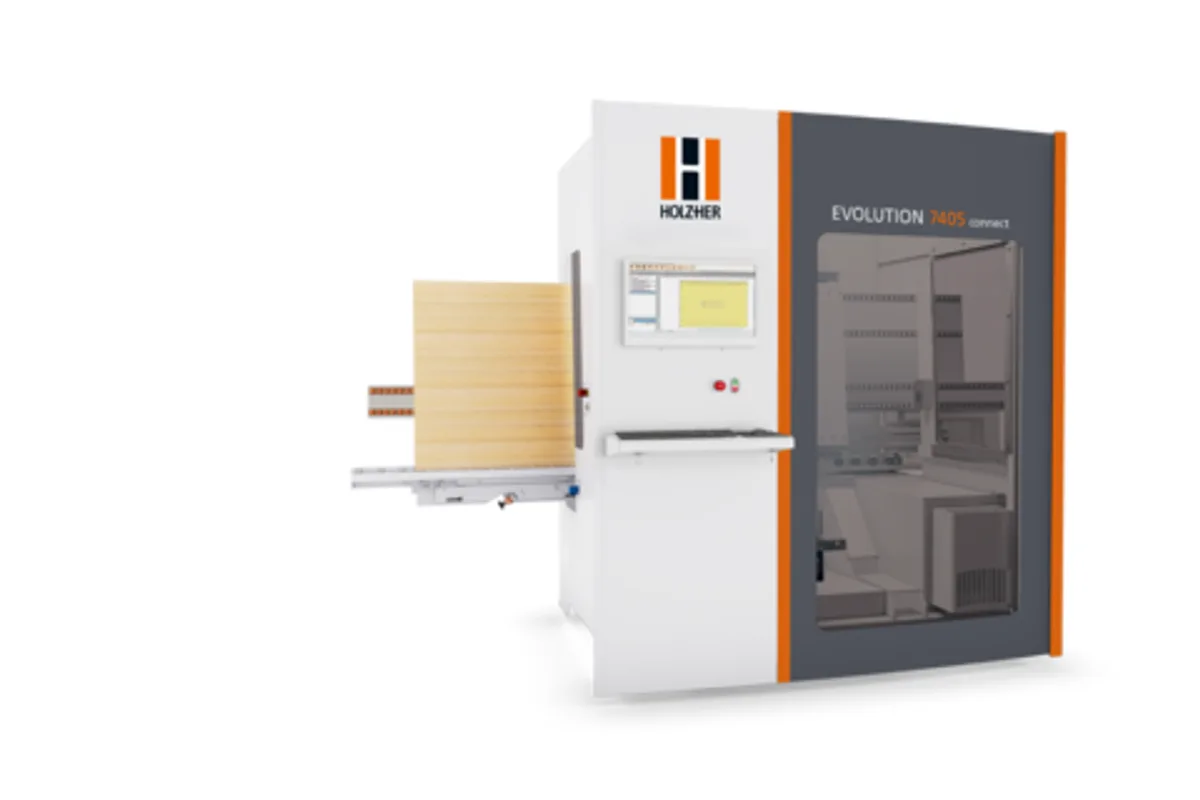

Image: holzher.co.uk, HOLZ-HER
Key Specifications
Spindle Power
machining length x
machining height y
spindle speed range
max tool diameter
max tool length
How much does the HOLZ-HER EVOLUTION 7405 Connect cost?
Price estimate
We do not have a price for the HOLZ-HER EVOLUTION 7405 Connect that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HOLZ-HER EVOLUTION 7405 Connect is the EVOLUTION vertical machining centre prepared for connector joinery. On top of the four-edge formatting of the EVOLUTION 7405, it machines the pockets and grooves for Lamello P-System connectors, on all four edges of a panel and in the X and Y directions.
The hardware behind that is in the technical data table. A tool changer is standard here: a pick-up system with a magazine for 6 tools, plus a single-unit magazine that pivots in the X/Y direction for the special angle gear with HSK chuck, which HOLZ-HER counts as a seventh changer location. The tool sets supplied are an angle gear for the Lamello P system, a Clamex cutter adapter and a 4-axis Clamex tool set. Tool sets for the standard and XL drilling heads are options.
Software differs too. This variant is listed with CAMPUS V7 CAD/CAM software and NC-HOPS, including the aCADemy module and Cabinet Control Base; an office license and Cabinet Control Pro are extras. A macro for Clamex pockets is part of the Connect package. Dowel holes and Cabineo connectors are covered by the included macros as well, so the choice of connector stays open.
Dimensions match the EVOLUTION 7405: 3,200 mm (126.0 in) by 920 mm (36.2 in) of edge routing dimension, a 10.3 kW (13.8 hp) cutter unit with a chuck speed of 1,000 to 24,000 rpm, tools up to 80 mm (3.1 in) in diameter and length, and a 15-spindle drilling head. The machine is 3,675 mm (144.7 in) long and weighs 2,500 kg (5,511 lb). HOLZ-HER adds that the workpiece can be arrested at the rear, so the entire circumference, horizontal drilling included, is machined without reclamping.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Length X | 3,200 mm (126.0 in) |
| Machining Height Y | 920 mm (36.2 in) |
| Spindle Motor Power | 10.3 kW (13.8 hp) |
| Spindle Speed Range | 1,000-24,000 rpm |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in) |
| Max Tool Length | 80 mm (3.1 in) |
| Run in Linear Guide | Height adjustable for 4-sided edge routing and profiling |
| Vector Speed | 68 m/min |
| Safety Equipment | CE compliant |
| Drilling Head | 15 spindles (9 V | 6 H), sawing unit in X direction |
| Drilling Head Options | XL drilling head with sawing unit in X direction; double drilling spindle in Y direction; vertical adapter with double positioning force |
| Workpiece Clamping | Automatically positioning vacuum system |
| Vacuum Pump Option | ECO-Vac 8 m³/h vacuum pump |
| Workpiece Support | Solid rollways incl. 2 stops |
| Tool Changer | Pick-up system with magazine for 6 tools; single unit magazine pivots in X/Y direction for special angle gear with HSK chuck |
| Tool Sets | Angle gear for Lamello P system; Clamex cutter adapter; 4-axis Clamex tool set |
| Tool Sets Options | Tool set for standard drilling head; tool set for XL drilling head |
| Software | CAMPUS V7 CAD/CAM Software / NC-HOPS, incl. aCADemy CAD/CAM module machine license, Cabinet Control Base |
| Software Options | CAMPUS Software office license, Cabinet Control Pro |
| Machine Weight | 2,500 kg (5,511 lb) |
| Overall Length | 3,675 mm (144.7 in) |
| Overall Height | 2,350 mm (92.5 in) |
| Overall Depth | 1,660 mm (65.4 in) |
| Extraction Connections | 2 x dia. 120 mm (4.7 in) + 1 x dia. 140 mm (5.5 in) |
Specifications sourced from holzher.co.uk — verified 2026-10-05
Strengths & Limitations
Strengths
- A pick-up tool changer with a magazine for 6 tools is standard on this variant
- Supplied with an angle gear for the Lamello P system, a Clamex cutter adapter and a 4-axis Clamex tool set
- Connector pockets can be cut on all four edges and in the X and Y directions
- Software package includes CAMPUS V7, NC-HOPS, aCADemy and Cabinet Control Base
- Rear workpiece arrest allows the entire circumference to be machined without reclamping
Limitations
- Y edge routing dimension is 920 mm (36.2 in), as on the other EVOLUTION models
- Tools are limited to 80 mm (3.1 in) in diameter and 80 mm (3.1 in) in length
- Tool sets for the standard and XL drilling heads are extra
- It does not insert dowels: that function belongs to the EVOLUTION 7405 PinJet
Best For
Frequently Asked Questions
01
HOLZ-HER lists four items: one X/Y tool changer, the EVOLUTION angle gear for Lamello Clamex cutouts, an original Lamello P system tool set and a CAMPUS macro for Lamello Clamex pockets. The technical data table also shows a Clamex cutter adapter and a 4-axis Clamex tool set among the standard tool sets.
02
Yes. The macros in the scope of delivery cover drilling dowel holes and countersinking Cabineo connectors as well as cutting pockets for Lamello Clamex connectors. It does not insert dowels itself; HOLZ-HER offers the EVOLUTION 7405 PinJet for automatic dowelling.
03
The standard pick-up system has a magazine for 6 tools. A separate single-unit magazine pivots in the X/Y direction for the special angle gear with HSK chuck, which HOLZ-HER describes as an additional seventh tool changer location. Maximum tool dimensions are 80 mm (3.1 in) in diameter and 80 mm (3.1 in) in length.
04
Edge routing dimensions are 3,200 mm (126.0 in) in X and 920 mm (36.2 in) in Y, and HOLZ-HER gives a vertical pass-through dimension of 1,200 mm for material from 8 to 70 mm thick. The machine itself is 3,675 mm (144.7 in) long, 2,350 mm (92.5 in) high and 1,660 mm (65.4 in) deep.
