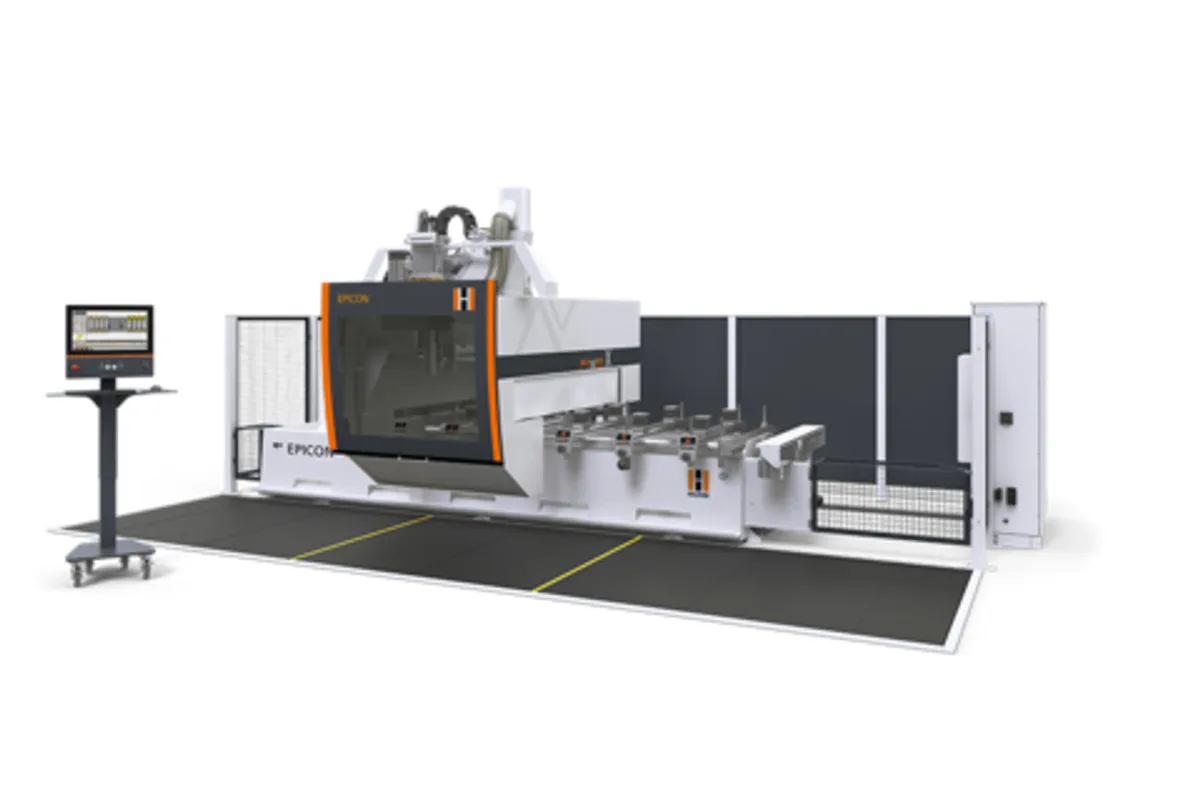

HOLZ-HER EPICON 7135
Image: holzher.co.uk, HOLZ-HER
Key Specifications
Spindle Power
machining length x
machining width y
z axis travel
machining height z
spindle power option
How much does the HOLZ-HER EPICON 7135 cost?
Price estimate
We do not have a price for the HOLZ-HER EPICON 7135 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HOLZ-HER EPICON 7135 is a 5-axis gantry CNC machining centre for panel, solid wood and composite work, with 1,500 mm (59.1 in) of machining dimension in Y and a choice of five lengths in X, from 3,680 mm (144.9 in) to 7,280 mm (286.6 in). It has the narrowest table in the EPICON series: the EPICON 7235 reaches 1,650 mm (65.0 in) in Y and the EPICON 7335 reaches 2,100 mm (82.7 in).
The smaller bridge is also the quickest. HOLZ-HER lists a vector speed of 142 m/min here, against 131 m/min for the EPICON 7335. It is the one EPICON whose standard drilling head is the 14-spindle unit, with 10 vertical and 4 horizontal spindles plus a sawing unit in X. Heads with 21 or 31 spindles are options.
The cutter unit is a gimbal-mounted, liquid-cooled 5-axis head rated 13 kW (17.4 hp) and running from 1,000 to 24,000 rpm. Its C axis rotates +/- 360° and its A axis +/- 180°. For heavy solid-wood cuts there is an optional 18 kW (24.1 hp) head with PRO-TORQUE technology, which HOLZ-HER describes as having mechanical brakes on the A and C axes. Z travel is 565 mm (22.2 in) and the machining height is 300 mm (11.8 in), so tall carcass parts and stair components clear the head.
Look closely at the tool changer when configuring. The maker's table puts every changer in the options column: an 18- or 24-position traveling disk changer, a single pick-up for a 350 mm (13.8 in) saw blade and a 14-position linear pick-up changer. The standard table has 6 consoles, 16 stops and 4 charging aids, held by a 100 m³/h dry-running vacuum pump. The VISE-LED and SynchroDrive tables are upgrades.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Length X | 3,680 mm (144.9 in), 4,580 mm (180.3 in), 5,480 mm (215.7 in), 6,380 mm (251.2 in), 7,280 mm (286.6 in) |
| Machining Width Y | 1,500 mm (59.1 in) |
| Z Axis Travel | 565 mm (22.2 in) |
| Machining Height Z | 300 mm (11.8 in) |
| Spindle Motor Power | 13 kW (17.4 hp) 5-axis head, gimbal-mounted (infinite regulation), liquid-cooled |
| Spindle Power Option | 18 kW (24.1 hp) 5-axis head with PRO-TORQUE technology, liquid-cooled |
| Spindle Speed Range | 1,000-24,000 rpm |
| Vector Speed | 142 m/min |
| C Axis Range | +/- 360° |
| A Axis Range | +/- 180° |
| Drilling Head | 3.0 kW (4.0 hp), 14 spindles (10 V | 4 H), sawing unit in X direction |
| Drilling Head Options | 21 spindles (15 V | 6 H) or 31 spindles (25 V | 6 H), each with sawing unit in X direction |
| Workpiece Support | 6 consoles, 4 machining fields, 16 stops, 4 charging aids |
| Workpiece Support Options | VISE-LED table, SynchroDrive table |
| Safety Equipment | 3-field foot mat (pendular machining) |
| Safety Equipment Options | Safety bumper, SafeDetect |
| Vacuum Pump | 100 m³/h vacuum pump, dry-running version |
| Vacuum Pump Options | 140 / 250 m³/h vacuum pump |
| Tool Changer Options | 18, 24-position traveling disk tool changer; single pick-up for 350 mm (13.8 in) dia. saw blade; 14-position linear pick-up tool changer with tool cover |
| Software | 1 x CAMPUS Hops; aCADemy; 3D simulation |
Specifications sourced from holzher.co.uk — verified 2026-10-05
Strengths & Limitations
Strengths
- Vector speed of 142 m/min, the highest figure in the EPICON tables
- 13 kW (17.4 hp) liquid-cooled 5-axis head running 1,000 to 24,000 rpm, with +/- 360° on the C axis and +/- 180° on the A axis
- Five machining lengths in X, from 3,680 mm (144.9 in) up to 7,280 mm (286.6 in), on the same 1,500 mm (59.1 in) Y dimension
- 565 mm (22.2 in) of Z travel with a 300 mm (11.8 in) machining height
- A drilling head with 14 spindles and an X-direction sawing unit is standard, so cabinet drilling and grooving do not tie up the routing spindle
Limitations
- Y machining dimension stops at 1,500 mm (59.1 in); the EPICON 7335 offers 2,100 mm (82.7 in) for wide panels and doors laid crosswise
- The technical data table lists the tool changers only as options, so the changer has to be specified with the order
- The standard drilling head has 14 spindles; the 21- and 31-spindle heads that suit long rows of shelf-pin holes are options
- The 18 kW (24.1 hp) PRO-TORQUE head, the VISE-LED table and the SynchroDrive table are all upgrades over the base machine
Best For
Frequently Asked Questions
01
The Y dimension is fixed at 1,500 mm (59.1 in). In X there are five sizes: 3,680 mm (144.9 in), 4,580 mm (180.3 in), 5,480 mm (215.7 in), 6,380 mm (251.2 in) and 7,280 mm (286.6 in). Z travel is 565 mm (22.2 in) with a machining height of 300 mm (11.8 in).
02
The standard cutter unit is a 13 kW (17.4 hp) gimbal-mounted 5-axis head, liquid-cooled, with a speed range of 1,000 to 24,000 rpm. An 18 kW (24.1 hp) 5-axis head with PRO-TORQUE technology is the option. HOLZ-HER also describes ChipControl, a Bluetooth spindle sensor meant to prevent damage from vibration or overheating.
03
Mainly in Y. The EPICON 7135 machines 1,500 mm (59.1 in), the EPICON 7235 1,650 mm (65.0 in) and the EPICON 7335 2,100 mm (82.7 in), all with the same five X lengths. The EPICON 7135 is listed at a vector speed of 142 m/min against 131 m/min for the EPICON 7235 and EPICON 7335, and it is the one with a 14-spindle drilling head as standard.
04
A console table with 6 consoles, 4 machining fields, 16 stops and 4 charging aids is standard, with a 100 m³/h dry-running vacuum pump. Pumps of 140 or 250 m³/h are options. So are the VISE-LED table, which guides the set-up of consoles and suction cups, and the SynchroDrive table, on which each console and suction cup assembly has its own servo motor.
