SCM Accord 600

Q: How much does the SCM Accord 600 cost?

The price estimate for the SCM Accord 600 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/scm-accord-600#price; the request is passed to SCM or an authorised dealer.

Specs verified 2026-10-05 · scmgroup.com Updated 2026-10-05

Image: scmgroup.com, SCM

Key Specifications

working areas xyz

3715 x 1600 x 300 mm / 3715 x 1900 x 300 mm / 5515 x 1600 x 300 mm / 5515 x 1900 x 300 mm / 6715 x 1600 x 300 mm / 6715 x 1900 x 300 mm

working area x

3,715 mm (146.3 in), 5,515 mm (217.1 in), 6,715 mm (264.4 in)

working area y

1,600 mm (63.0 in), 1,900 mm (74.8 in)

working area z

300 mm (11.8 in)

axis speed xyz

90-80-45 m/min (X-Y-Z axes max. speed)

spindle power 5 axis

13.5 kW (18.4 hp) max.

How much does the SCM Accord 600 cost?

Price estimate

Uncertain

We do not have a price for the SCM Accord 600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

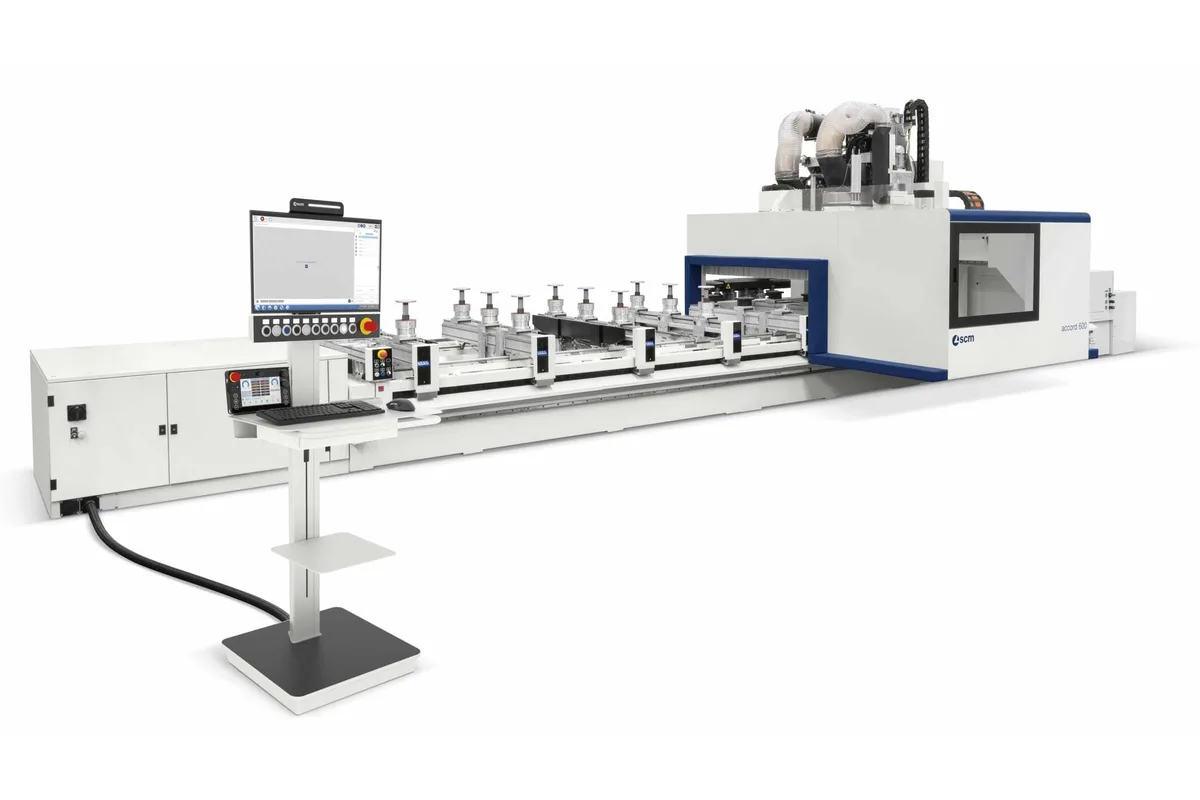

The SCM Accord 600 is a CNC machining center for doors, windows, stairs and other solid wood parts whose work unit is made of three independent units. Two of them are routing units, one with a 5-axis electrospindle of up to 13.5 kW (18.4 hp) and one with a 3- or 4-axis electrospindle of up to 21 kW (28.5 hp). Each has its own on-board tool changer, which the table lists as VELOCE with 12+12 positions.

That pairing is the point of the machine. While one spindle cuts, the other fetches its next tool, so tool changes happen in hidden time instead of stopping the cycle. Profiling work that alternates between a heavy cutter and a 5-axis finishing tool gains the most. A part programme that runs on a single tool gains nothing from the second unit.

The frame comes in six working areas, from 3715 x 1600 x 300 mm to 6715 x 1900 x 300 mm, and the X-Y-Z axes are listed at 90-80-45 m/min. Beyond the on-board changers SCM lists a TRB side changer with 11 positions, a CADDY side changer with 35 positions, a RAPID rear changer with 16 positions and a QUADRO rear changer with 35 positions. The third unit of the head is the drilling unit, with up to 26 vertical and horizontal spindles at 8000 rpm.

Compared with the Accord 500, this model gives up 5-axis power, since the Accord 500 is listed at 20 kW (27 hp) max. on that spindle, and gains the second independent routing unit.

Full Specifications

Parameter	Value
Working Areas Xyz	3715 x 1600 x 300 mm / 3715 x 1900 x 300 mm / 5515 x 1600 x 300 mm / 5515 x 1900 x 300 mm / 6715 x 1600 x 300 mm / 6715 x 1900 x 300 mm
Working Area X	3,715 mm (146.3 in), 5,515 mm (217.1 in), 6,715 mm (264.4 in)
Working Area Y	1,600 mm (63.0 in), 1,900 mm (74.8 in)
Working Area Z	300 mm (11.8 in)
Axis Speed Xyz	90-80-45 m/min (X-Y-Z axes max. speed)
Spindle Power 5 Axis	13.5 kW (18.4 hp) max.
Spindle Power 3 4 Axis	21 kW (28.5 hp) max.
Spindle Speed 5 Axis	24000 rpm max.
Spindle Speed 3 4 Axis	24000 rpm max.
Trb Side Tool Changer	11 positions
Caddy Side Tool Changer	35 positions
Rapid Rear Tool Changer	16 positions
Quadro Rear Tool Changer	35 positions
Veloce on Board Tool Changer	12+12 positions
Drilling Unit Spindles	up to 26 (vertical and horizontal)
Drilling Unit Rotation Speed Max	8000 rpm

Specifications sourced from scmgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Two independent routing units, 5-axis and 3- or 4-axis, each with its own on-board tool changer
Rear routing electrospindle of up to 21 kW (28.5 hp) at 24000 rpm for heavy profiling
VELOCE on-board changer listed with 12+12 positions, one set per routing unit
Six working areas up to 6715 x 1900 x 300 mm with X-Y-Z speeds of 90-80-45 m/min

Limitations

5-axis electrospindle tops out at 13.5 kW (18.4 hp), below the 20 kW (27 hp) max. of the Accord 500
Z is 300 mm (11.8 in) in all six working areas
Drilling unit is limited to 26 spindles, against up to 31 (vertical and horizontal) on the Accord 500
The second routing unit only shortens cycles on parts that alternate between tools

Best For

Window and door components that alternate between profiling and 5-axis cuts Stair parts and solid wood elements up to 6,715 mm (264.4 in) long Mixed solid wood and furniture production where tool-change time dominates the cycle

Frequently Asked Questions

01 What does "tool changes in hidden time" mean on the Accord 600?

The head has two independent routing units, with 4- and 5-axis electrospindles, and each has its own on-board tool changer. One unit can change its tool while the other is cutting, so the change does not add to the cycle. SCM lists the VELOCE on-board changer with 12+12 positions.

02 How powerful are the Accord 600 spindles?

The 5-axis electrospindle is listed at up to 13.5 kW (18.4 hp) and the 3- or 4-axis electrospindle at up to 21 kW (28.5 hp). Both have a maximum rotation speed of 24000 rpm.

03 How does the Accord 600 differ from the Accord 500?

Both share the same six working areas and the same TRB, CADDY, RAPID and QUADRO changers. The Accord 600 has two independent routing units with a 12+12 position on-board changer and a 5-axis spindle of up to 13.5 kW (18.4 hp). The Accord 500 is listed with a 5-axis spindle of 20 kW (27 hp) max.

04 What drilling capacity does the Accord 600 have?

The drilling unit is listed with up to 26 vertical and horizontal spindles and a maximum rotation speed of 8000 rpm. It is one of the three independent units that make up the work unit, next to the two routing units.
